Verify the size of the following firmware update files:
 2image.bin (appx.1 MB)
 fs.tar (appx. 14 MB)
 step2b.sh (appx. 9 KB)
If the three files are missing or are the wron
g size, verify the IP address in
the ftp scripts (192.168.2.2) and the connected PC’s ethernet IP address
(192.168.2.1). Also, review the step 10 log output for ftp transfer error
messages or warning me
ssages. See “Troubleshooting” on page 16 for
further help if needed.
Then, start over by rebooting the CK721-A controller and downloading the
CK721-A firmware installer image files (see “To install the CK721-A
Version 3.0 firmware:” on page 10).

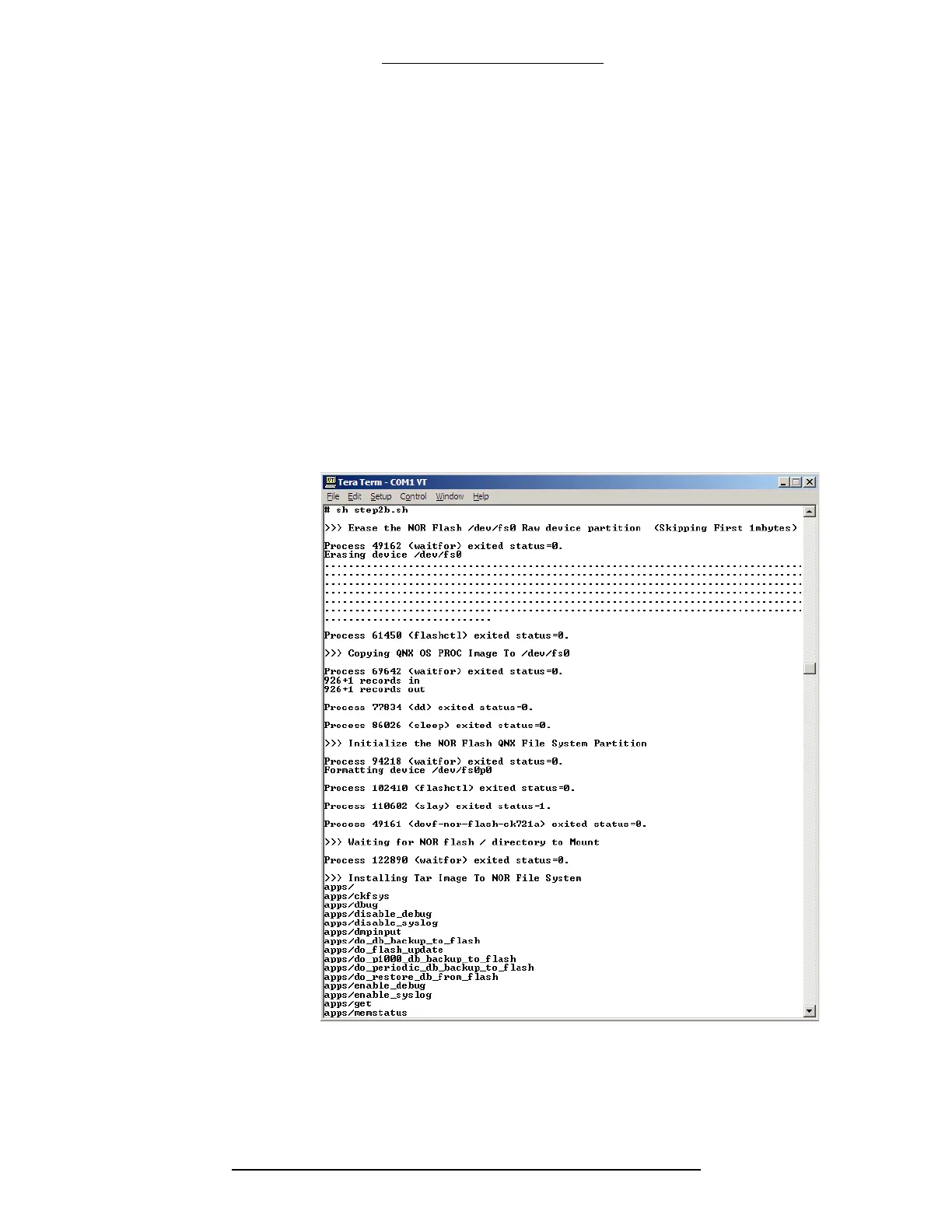

13. Using the Tera Term Pro window, invoke the CK721-A Firmware Installer
script. At th
e prompt, enter:
sh step2b.sh
