Termination diagrams
A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to
the controllers. See the figures in this section for the applicable termination diagrams.

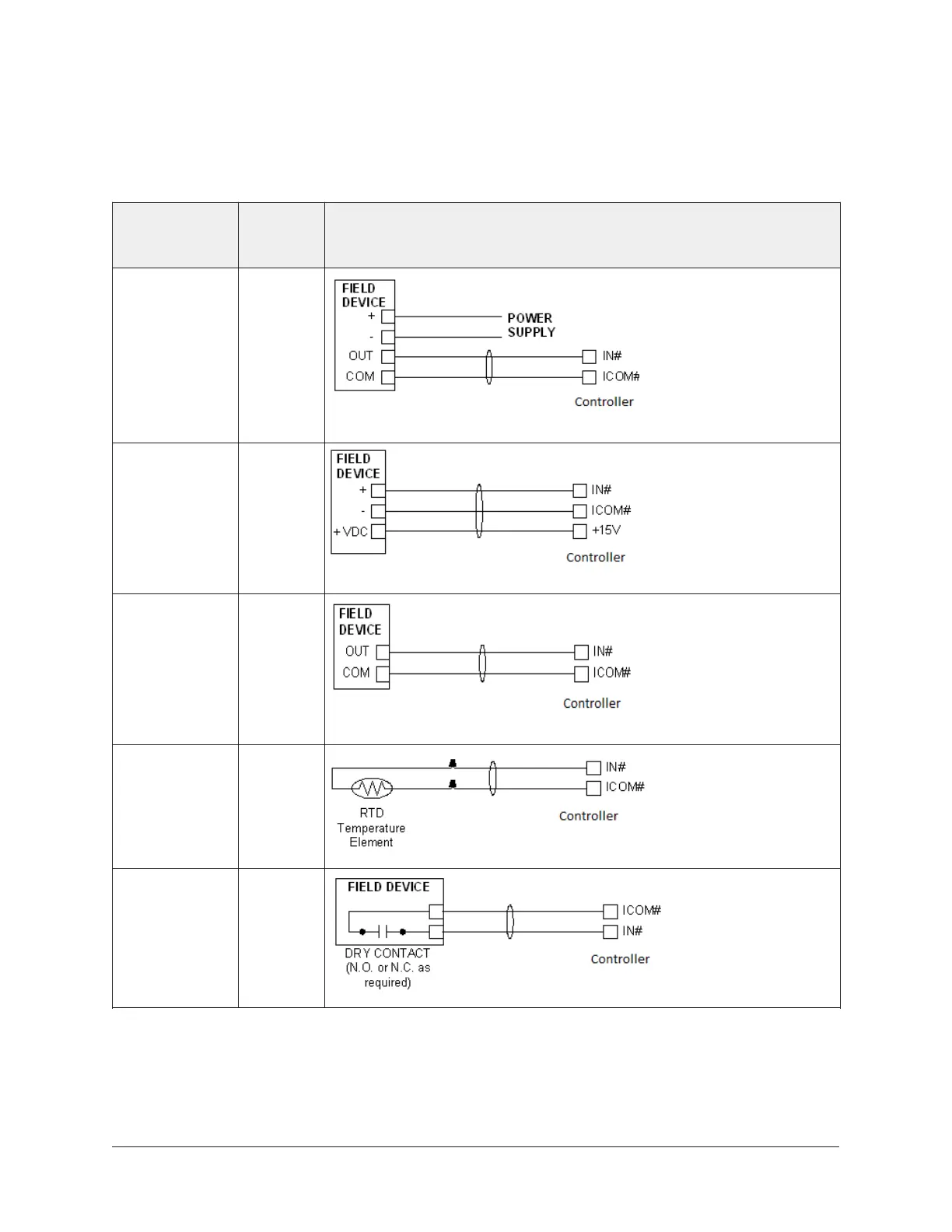

Table 2: Termination details
Type of Field
Device
Type of
Input/
Output
Termination Diagrams
Voltage Input
- External
Source
UI
Voltage Input
- Internal
Source
UI
Voltage Input
(Self-Powered)
UI
Temperature
Sensor
UI
Dry Contact UI
13F4-CVM VAV Terminal Equipment Controllers Installation Instructions
