Johnson Controls F4-CVM03050 - Page 14

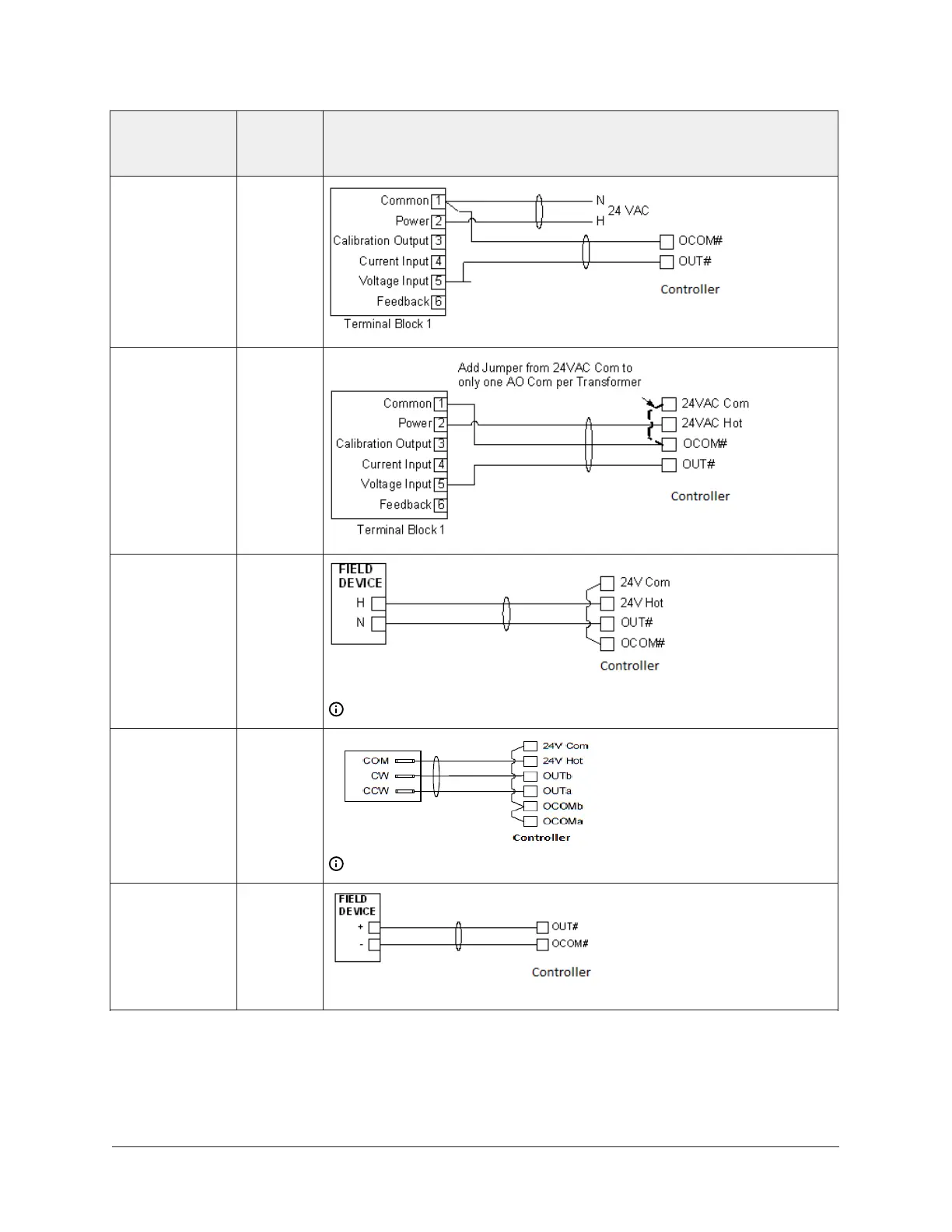

Table 2: Termination details
Type of Field
Device
Type of
Input/
Output
Termination Diagrams
0–10 VDC
Output to
Actuator
(External
Source)
CO
0–10 VDC
Output to
Actuator
(Internal
Source)
CO
24 VAC Triac
Output (Switch
Low, External
Source)
CO
Note: Applies to CO4 and CO5.
Incremental
Control to
Actuator
(Switch Low,
External
Source)
CO
Note: Applies to CO4 and CO5.
Analog Output
(Voltage)
CO
F4-CVM VAV Terminal Equipment Controllers Installation Instructions14
