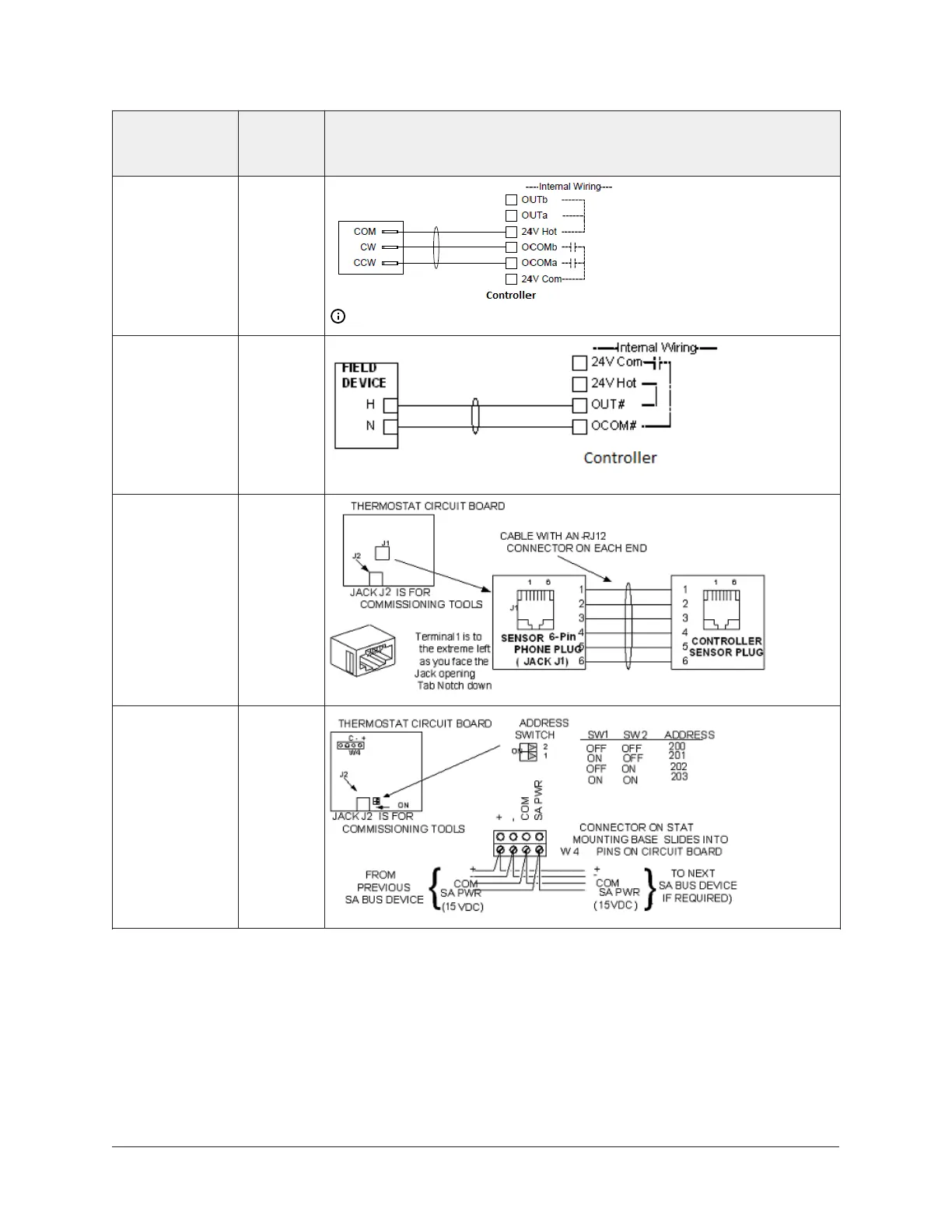

Table 2: Termination details
Type of Field
Device
Type of
Input/
Output
Termination Diagrams
Incremental
Control to
Actuator
(Switch Low,
Internally
Sourced)
BO
Note: Applies to BO3 (for only), BO1, and BO2.
24 VAC Binary
Output
(Switch Low,
Internally
Sourced)
BO
Network Stat
with Phone
Jack (Fixed
Address = 199)
SA Bus
Network Stat
with Terminals
Addressable
SA Bus
