Johnson Controls FAC3611 - Table 5: Termination details

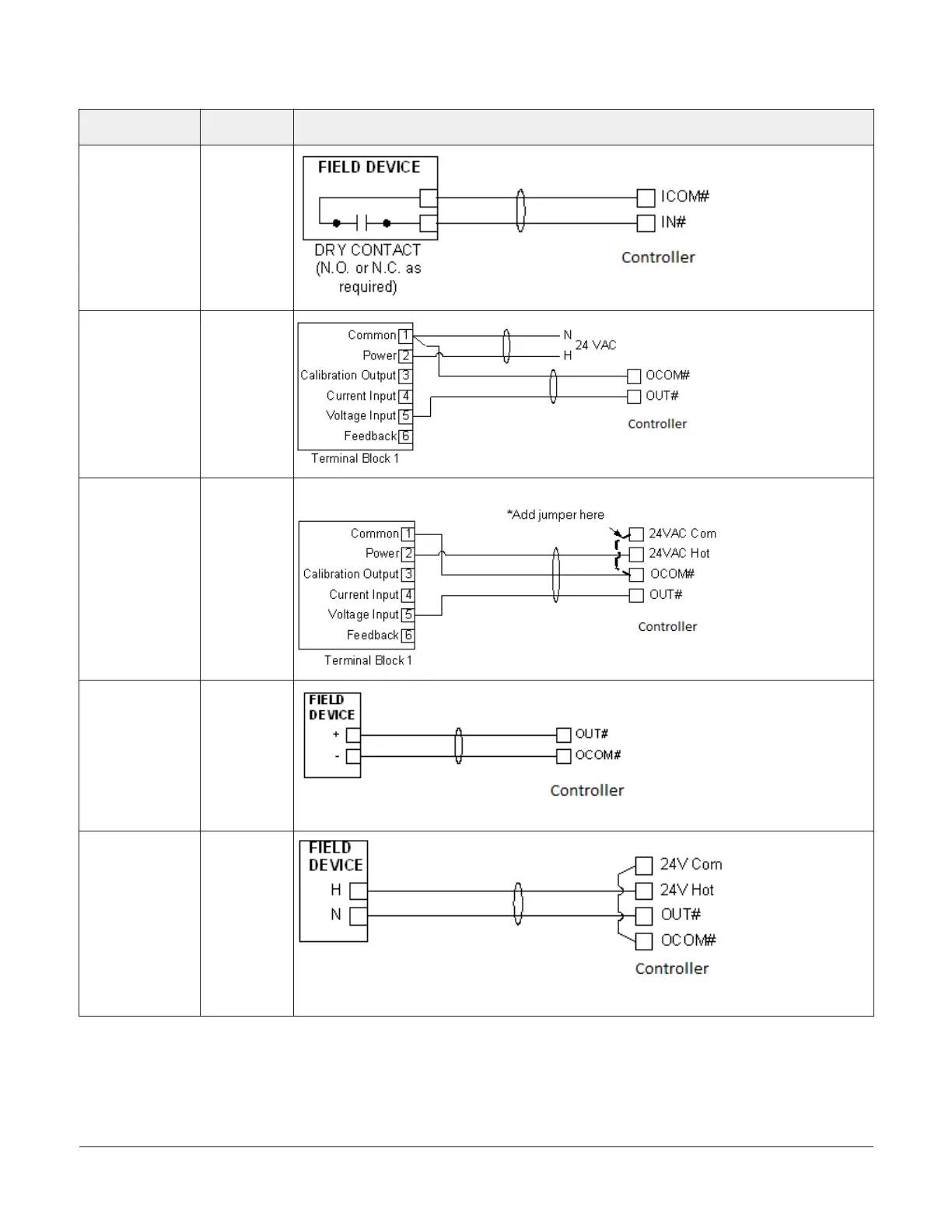

Table 5: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
Dry Contact
(Binary Input)
UI or BI
0–10 VDC Output
to Actuator
(External Source)
CO or AO
0–10 VDC Output
to Actuator
(Internal Source)
CO or AO
Current Output CO or AO
24 VAC Triac
Output (Switch
Low, External
Source)
CO or AO
FAC3611 Advanced Application Controller Installation Guide12
