FIRECLASS Fire detection system Install the Batteries - FC700 series
Installation Guide Doc. version 2.0 14
6.1 Install the Batteries - FC700
series
1 Connect the battery cables to the terminals marked
XT10 BAT+ and BAT- on the FC-FI board. Connect
the red cable to positive and the black cable to neg-
ative.
2 Place the batteries at bottom of the control panel
housing.
3 Connect the battery cables to the battery +ve to -ve
terminals.
4 Locate the Fuse Kit in Line (Fig. 11). From the kit,
remove the fuse and keep this safely (you will be
inserting the fuse later as part of the commissioning
procedure). Connect the remaining battery terminals
using the kit.
5 Identify the temperature compensation thermistor
lead. Connect it to terminals labelled XT10 TEMP on
the FC-FI board. Tape the thermistor at the end of
the lead at a convenient location on the top of a
battery.
6 Re-fit the battery fuse.

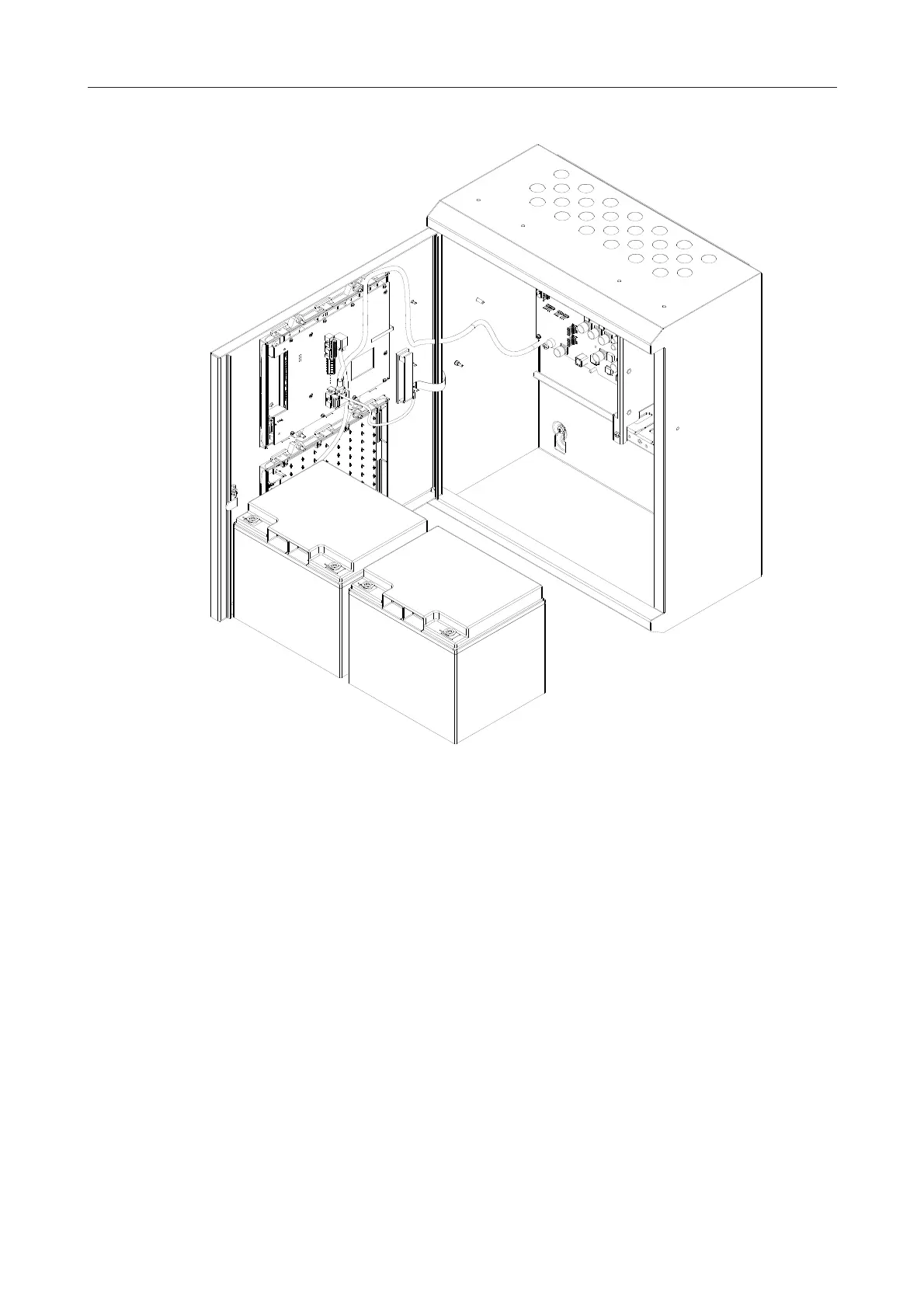

Fig. 12: Battery installation - FC700 series (deep housing)
