Johnson Controls GH-5000 User Manual

130 4280 010 E

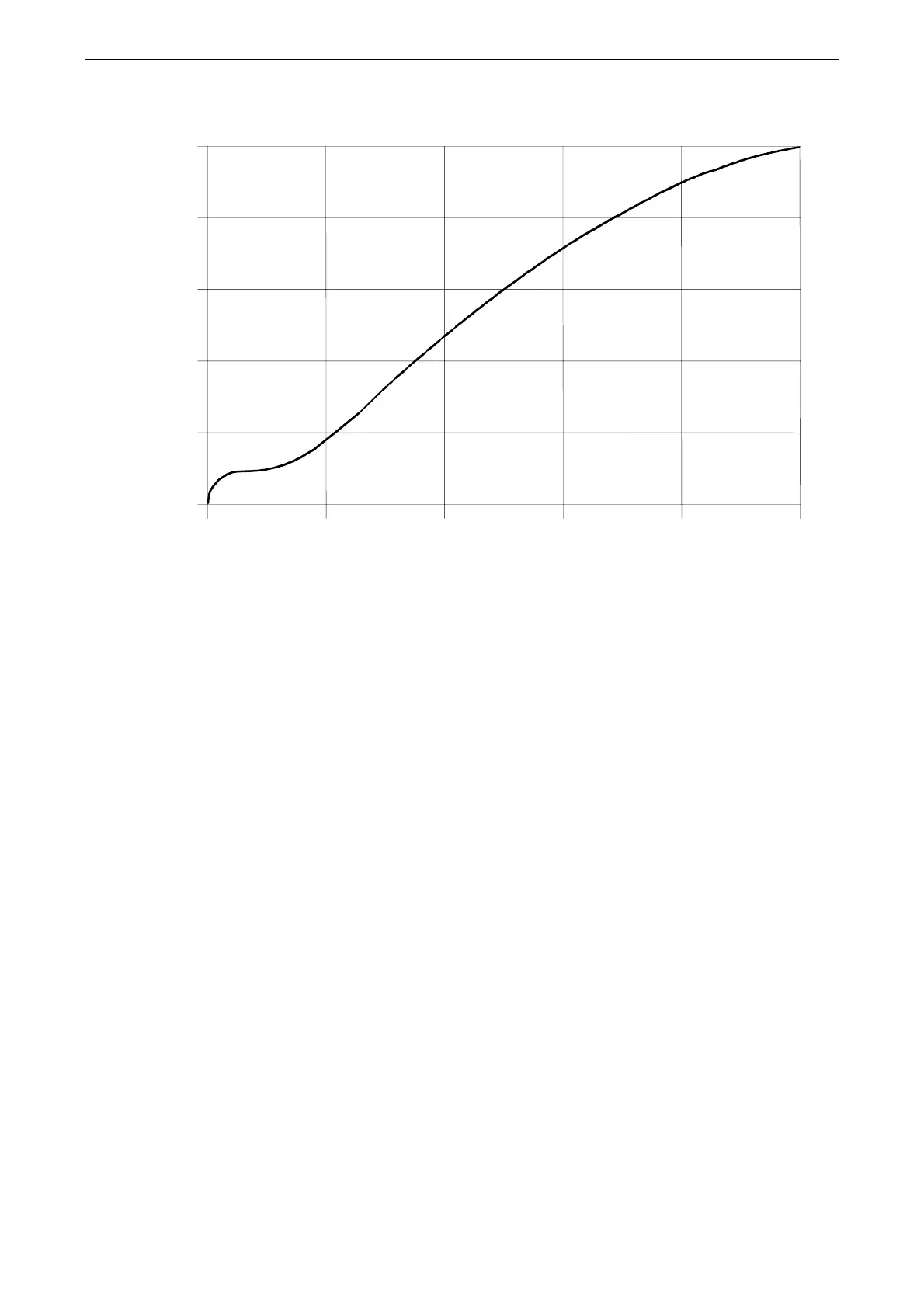

Flow/Stroke Characteristic contour plug
0% 20% 40% 60% 80% 100%
0%
20%
100%
40%
60%
80%
Hub / Stroke
V / V
max.
Valves with actuator versions on-off and on-off + CPI are always provided with a flat plug. All other valves
are provided with contoured plugs.
Exception: all valve bodies DN65-80 and Rp 2 ½ - 3 are always provided with a contoured plug.
