Johnson Controls GH-5000 User Manual

130 4280 010 E

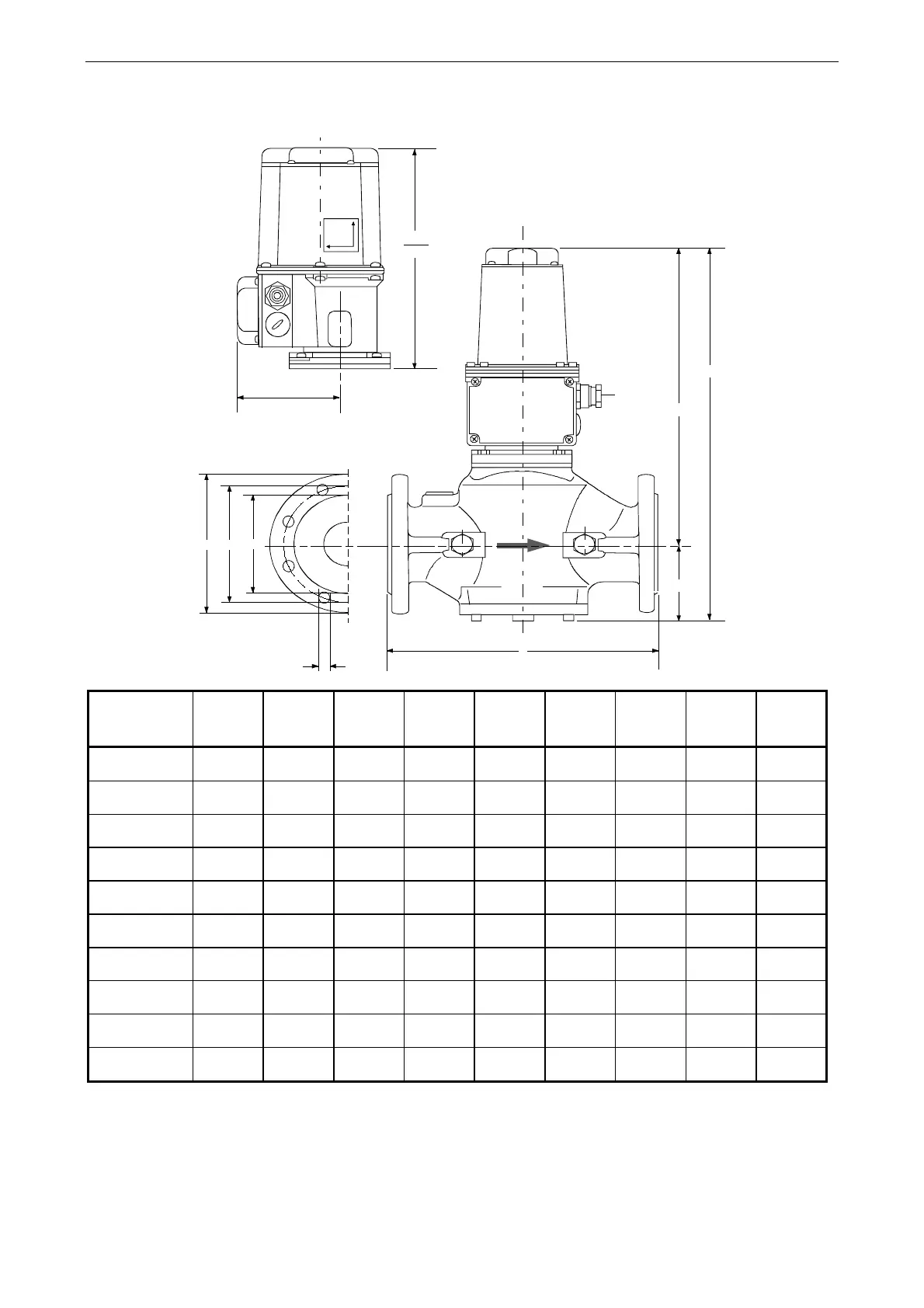

Dimensions and weight of flanged valve bodies DN40-150
H1
B
H2
H3
D1 D2
D3
d
4.09
104
10.35
263
Ventiltyp
Valve Size
B
mm
(in).
D1
mm
(in).
D2
mm
(in).
D3
mm
(in).
d
mm
(in).
H1
mm
(in).
H2
mm
(in).
H3
mm
(in).
Gewicht
Weight
(kg)
DN40
200
(7.87)
150
(5.91)
110
(4.33)
88
(3.47)
18*
(0.71)
367
(14.45)
296
(11.65)
71
(2.80)
6,6
DN50
230
(9.06)
165
(6.50)
125
(4.92)
102
(4.02)
18*
(0.71)
415
(16.34)
323
(12.72)
92
(3.62)
8,1
DN65
290
(11.42)
185
(7.28)
145
(5.71)
122
(4.80)
18*
(0.71)
451
(17.76)
359
(14.13)
92
(3.62)
20,0
DN80
310
(12.21)
200
(7.87)
160
(6.30)
138
(5.43)
18**
(0.71)
451
(17.76)
349
(13.74)
92
(3.62)
22,0
DN100
GH-54..
350
(13.78)
220
(8.66)
180
(7.09)
158
(6.22)
18**
(0.71)
527
(20.75)
377
(14.84)
150
(5.91)
42,0
DN125
GH-54..
400
(15.75)
250
(9.84)
210
(8.27)
188
(7.40)
18**
(0.71)
555
(21.85)
388
(15.28)
167
(6.58)
64,0
DN150
GH-54..
480
(18.90)
285
(11.22)
240
(9.45)
212
(8.35)
23**
(0.91)
622
(24.49)
412
(16.22)
210
(8.27)
93,0
DN100
GH-57..
350
(13.78)
220
(8.66)
180
(7.09)
158
(6.22)
18**
(0.71)
498
(19.6)
363
(14.3)
135
(5.31)
35,1
DN125
GH-57..
400
(15.75)
250
(9.84)
210
(8.27)
188
(7.40)
18**
(0.71)
536
(21.1)
379
(14.9)
157
(6.18)
50,5
DN150
GH-57..
480
(18.90)
285
(11.22)
240
(9.45)
212
(8.35)
23**
(0.91)
576
(22.7)
399
(15.7)
177
(6.97)
81,0
* four bolt holes per flange
** eight bolt holes per flange
