Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009 41
Section 7: Control Modules
7.1 Description
The M300CJ module is an addressable module that can be used for monitoring and switching 24
VDC Notification Appliance Circuit (NAC) power for NFPA Style Y (Class B) and NFPA Style Z
(Class A) circuits. It can also be used for audio/voice applications and fire-fighters telephone; these
two types of applications are documented separately. For UL 9th edition audio applications, refer to
the Digital Voice Command Manual and the Digital Audio Amplifiers Manual. For UL 8th edition
audio applications, refer to the Voice Alarm System Manual or FireVoice 25/50 Manual. The
module has a resistor on the back (refer to Figure 7.2) that must be removed when it is used on an
FFT-7 or FFT-7S telephone circuit.
The M300CJ-REL is an addressable module used to switch an external power supply to a solenoid.
The M300CJ-REL can be configured for NFPA Class B or Class A wiring. When using the
M300CJ-REL for Class B applications, remove jumper J1 (refer to Figure 7.4) on the back.
Refer to the Device Compatibility Document for a list of compatible UL Listed Fire Alarm
Releasing Solenoids. For more information on the module specifications refer to the Installation
Instructions provided with these devices.
 Setting an SLC Address
Each module is factory preset with an address of “00.” To set an SLC address refer to “Setting SLC
Address on Module” on page 35.
7.2 Wiring a NAC with Addressable Control Modules
Figure 7.1 and Figure 7.2 show the connections to wire the M300CJ module for powering a 24
VDC NAC.

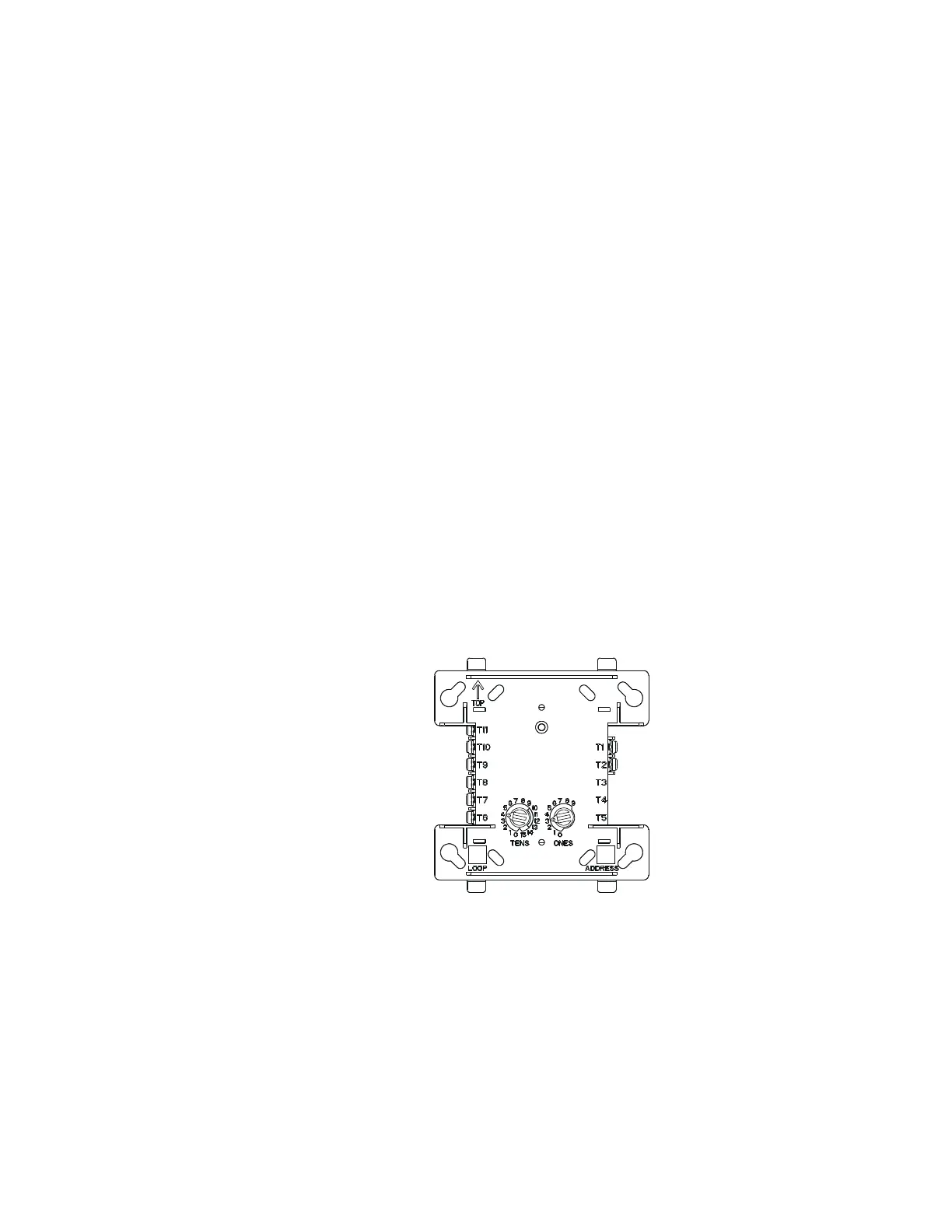

Figure 7.1 M300CJ Wiring Connections
SLCModule-simplified.wmf
NOTE:
• Module polarities are shown in alarm condition.
• *Can also be used in audio/voice and fire-fighters
telephone applications (70.7 VRMS max audio or
telephone); refer to the Voice Alarm System
Manual, FireVoice 25/50 Manual or DVC Manual
as appropriate for your equipment.
Style Z NAC (+)
Style Z NAC (–)
Style Y/Z NAC (–)
Style Y/Z NAC (+)
24 VDC Nonresettable Power (–)*
24 VDC Nonresettable Power (+)*
SLC (–)
SLC (+)
