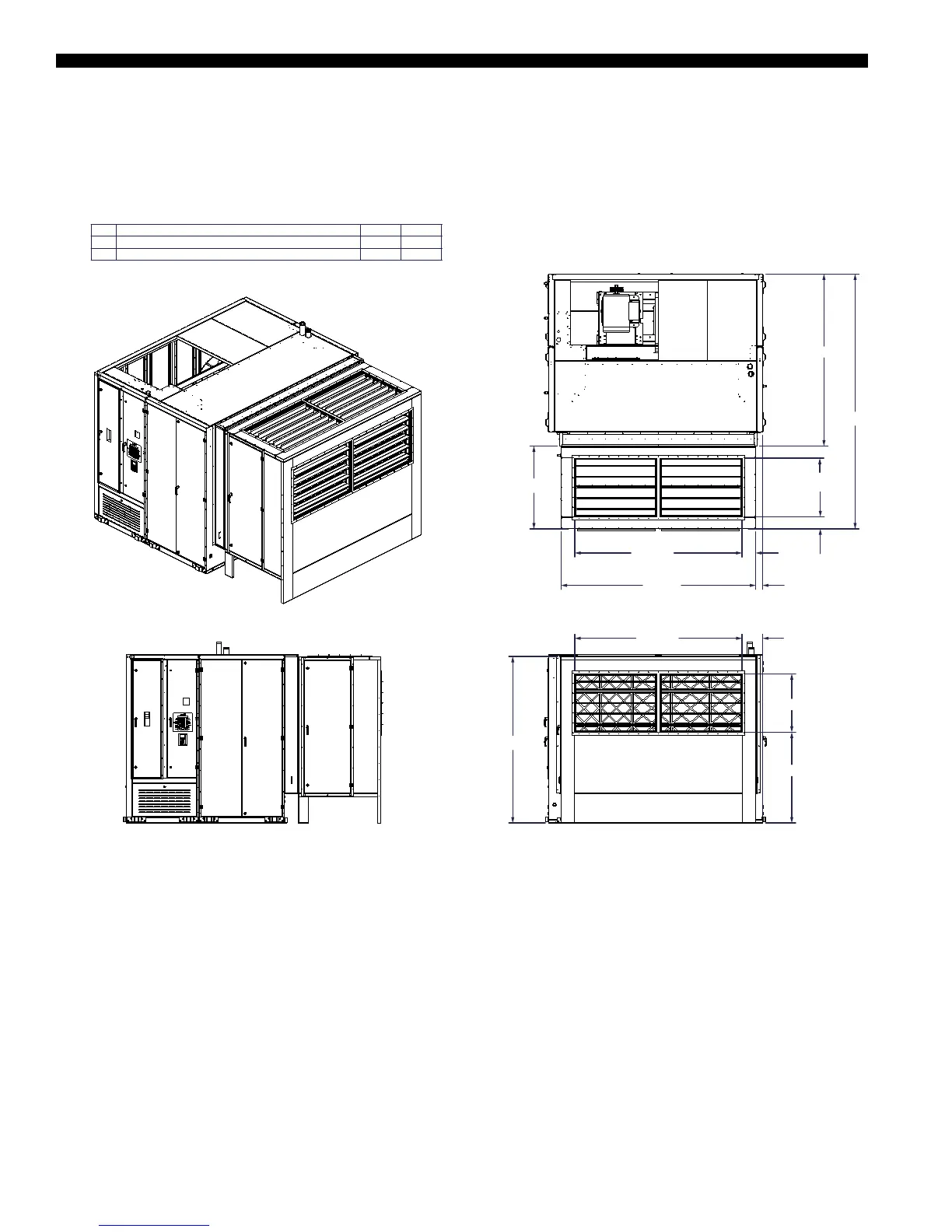

AIRSIDE ECONOMIZER OPTION
LSWU070–105 MODELS
*MINIMUM INTERIOR DUCT
DIMENSIONS
NOTE: AIRSIDE ECONOMIZER WILL BE SHIPPED SEPARATELY
NO. FILTER OPTIONS "A" "B"
1
2
4" FILTER 102.06 152.28
4" PRE-FILTER + 4" HIGH EFFICIENCY FILTER 106.31 156.53
"A"
("B")
4.25118.00
8.26*101.47*
7.36*
35.47*
50.22
COIL SECTION
FAN SECTION
FILTER SECTION
AIRSIDE ECONOMIZER
12.52*101.47*
55.04*
35.47*
100.99
Dimensional Data (Cont’d)
