Johnson Controls L-Series User Manual

FORM 145.05-EG2 (618)
JOHNSON CONTROLS
55

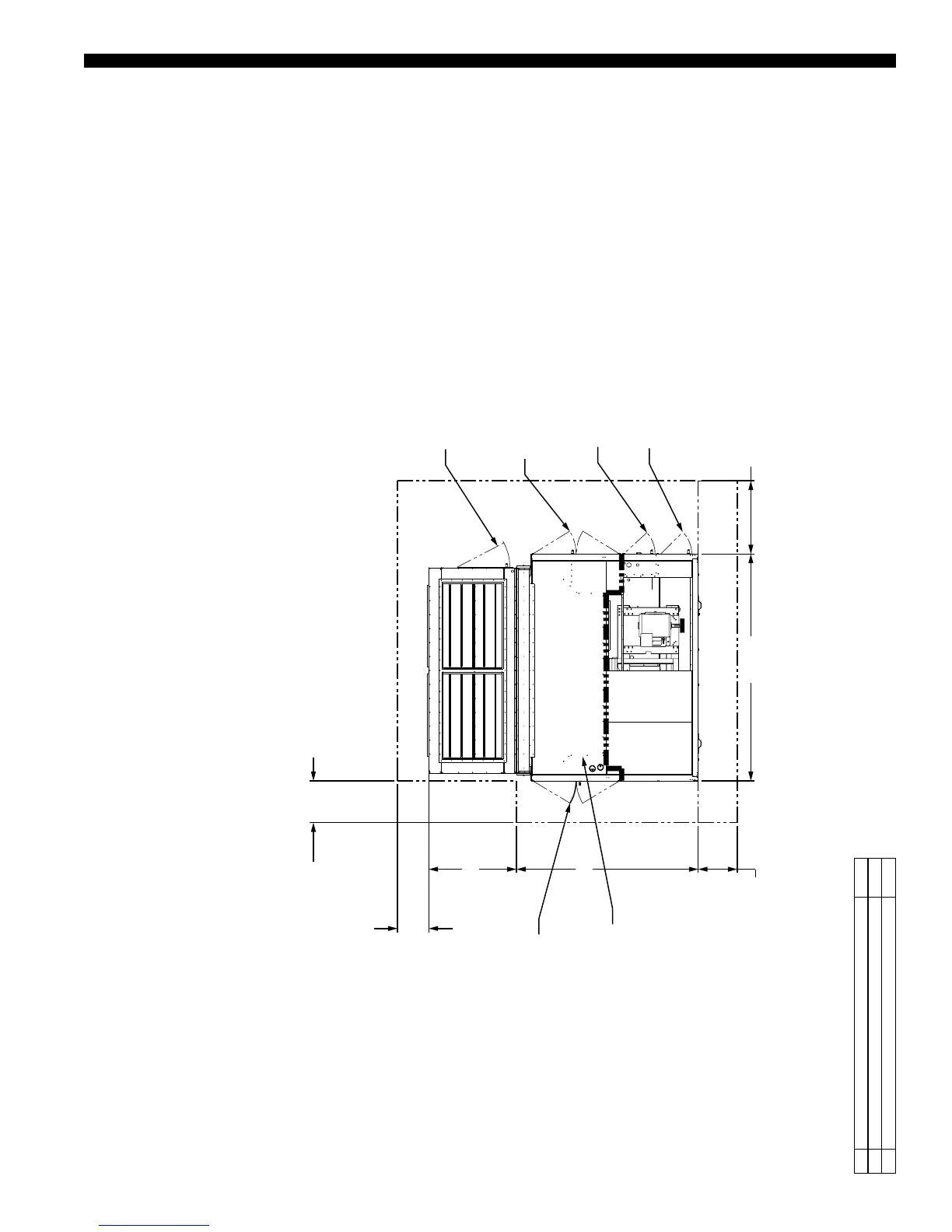

AIRSIDE ECONOMIZER SERVICE CLEARANCES
LSWU070–105 MODELS
REAR
RIGHT
FRONT
LEFT
AIRSIDE ECONOMIZER
FILTER SECTION
COIL SECTION
FAN SECTION
18” CLEARANCE
42” CLEARANCE
130.00”
50.22”
“A”
4” PRE-FILTER + 4” HIGH EFFICIENCY FILTER
4” FILTER
FILTER OPTIONSNO.
1
2
“A”
102.06
106.31
24” CLEARANCE REQUIRED ON
STANDARD UNITS; 3” CLEARANCE
REQUIRED ON UNITS WITH RIGHT
AND REAR ACCESS ONLY OPTION
OPTIONAL WHEN CLEARANCE IS
AVAILABLE - REMOVEABLE DOORS
WITH HINGES, ONE DOOR HANDLE
AND ONE TOOL-OPERATED LATCH
REMOVABLE INNER PANEL IS PROVIDED
FOR ACCESS TO WATER VALVES WHEN
NO LEFT SIDE CLEARANCE IS REQUIRED
24” CLEARANCE REQUIRED ON
STANDARD UNITS; 3” CLEARANCE
REQUIRED ON UNITS WITH RIGHT
AND REAR ACCESS ONLY OPTION
REMOVABLE DOOR WITH HINGES, ONE DOOR HANDLE, AND TOOL- OPERATED LATCH
ELECTRICAL PANEL DOOR, NONRE- MOVABLE WITH HINGES, ONE DOOR HANDLE, AND TOOL-OPERATED LATCH
ENTRY DOOR STANDARD 72 X 18 NOMINAL WITH ONE DOOR HANDLE AND TOOL-OPERATED LATCH
REMOVABLE DOORS WITH HINGES, ONE DOOR HANDLE, AND TOOL- OPERATED LATCH
