Johnson Controls L-Series User Manual

FORM 145.05-EG2 (618)
56
JOHNSON CONTROLS

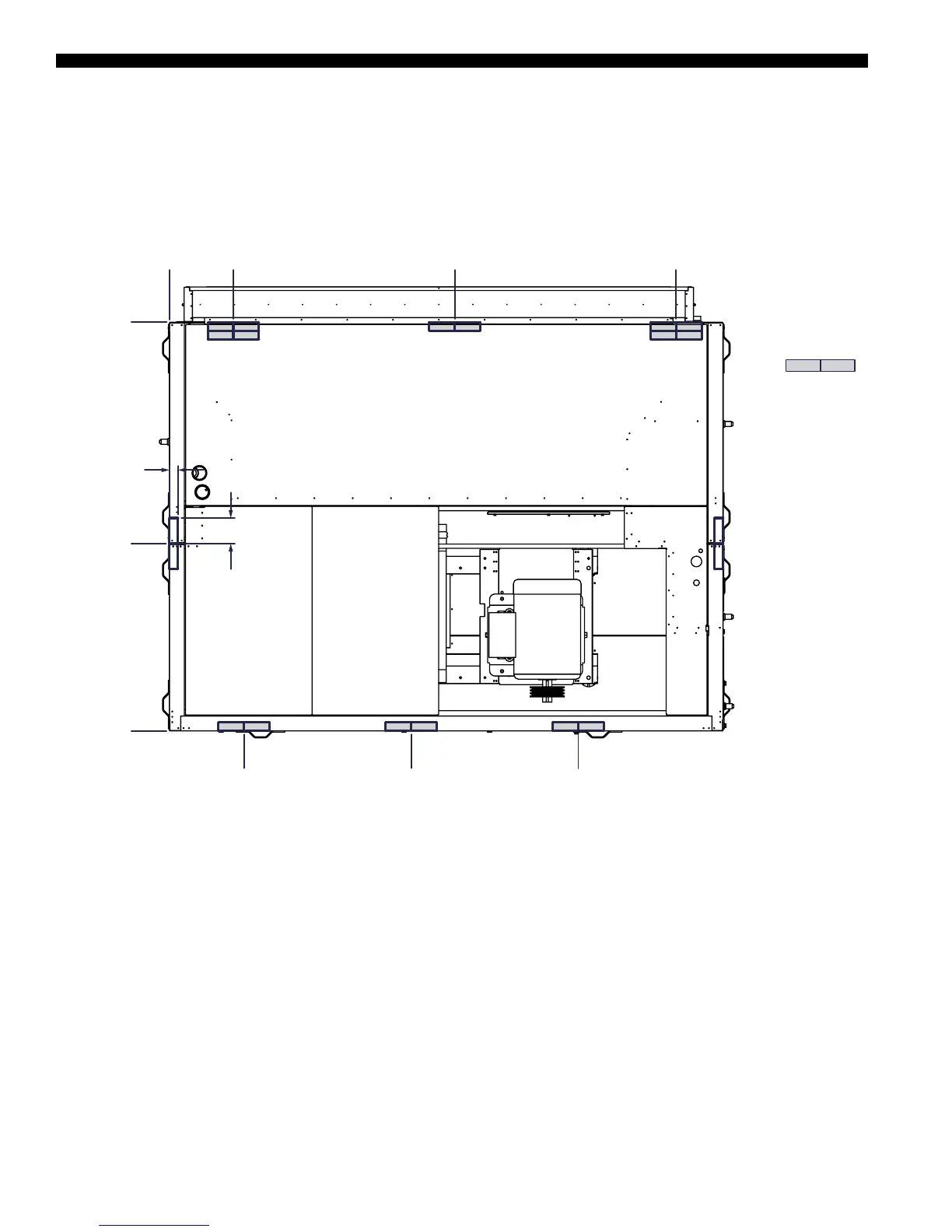

MOUNTING PAD LOCATIONS
LSWU070–105 MODELS
0
15.00 119.00
67.00
17.50
56.75 96.00
0
52.00
(SPLIT
LINE
AT FLOOR
ELEVATION)
96.00
10X 2.00
10X 6.00
FRONT
LEFT
RIGHT
REAR
COIL SECTION
FAN SECTION
FILTER SECTION
LEFT
MOUNTING
PAD
LOCA
TIONS
Dimensional Data (Cont’d)

Johnson Controls L-Series Specifications

General

Brand	Johnson Controls
Model	L-Series
Category	Air Conditioner
Language	English
