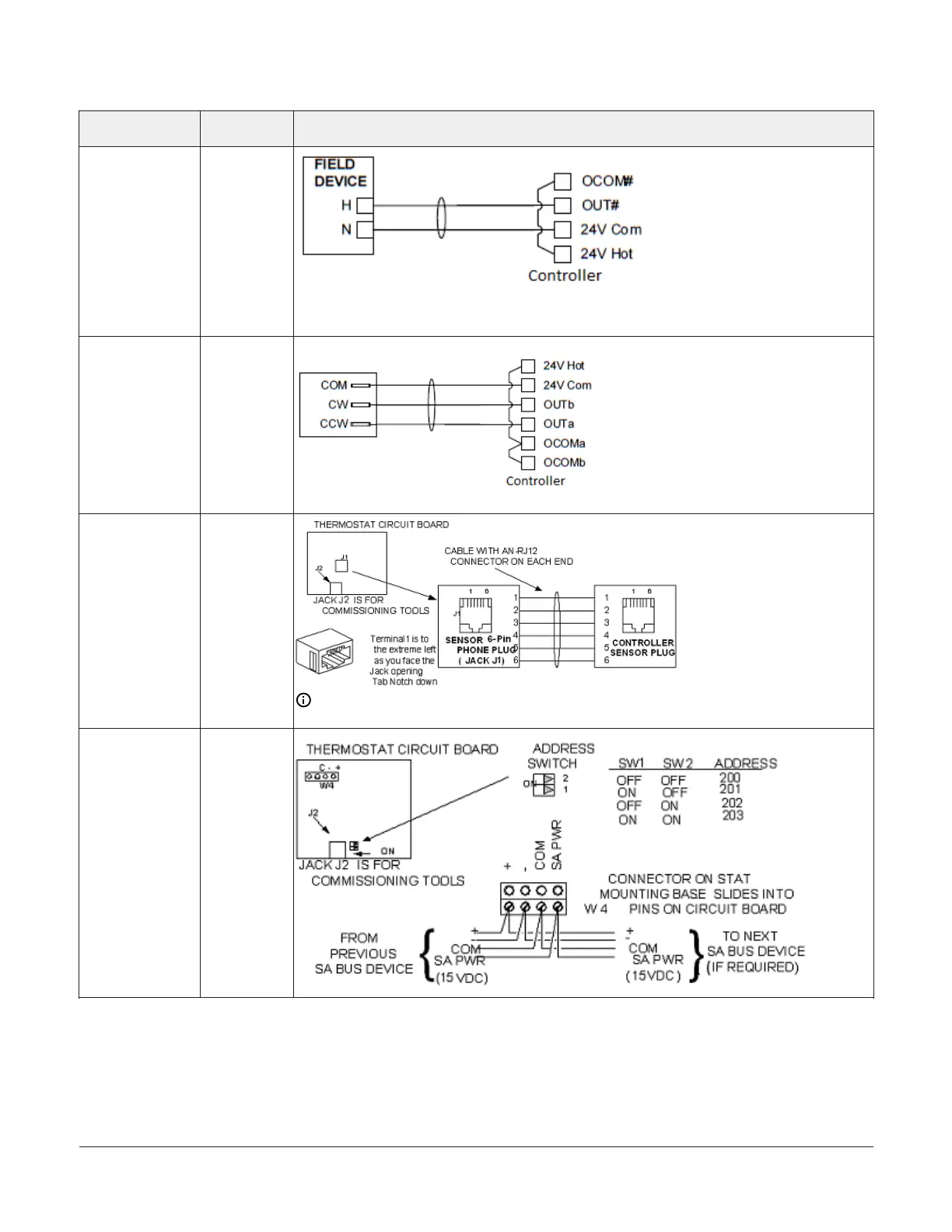

Table 8: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
24 VAC Binary
Output (Switch
High, Externally
Sourced)
BO
Incremental
Control to
Actuator (Switch
High, Externally
Sourced)
BO
Network Stat with
Phone Jack (Fixed
Address = 199)
SA Bus
Note: The bottom jack (J2) on the TE-700 and TE-6x00 Series Sensors is not usable as a zone
bus or an SAB connection.
Network Stat
with Terminals
Addressable
SA Bus
M4-CGM General Purpose Application Controllers Installation Guide16
