Johnson Controls M510CJ User Manual

Addressable Intelligent Module—AIM-200 Addressable Intelligent Module 33
The BGX-101L is an addressable manual pull station with a key-lock reset
feature.
1. Connect the communications loop to BGX-101L red wire (+) and
black wire (-). If additional devices are to be connected to the SLC
loop after the BGX-101L, wire-nut the continuance of the loop to the
red and black wires.
2. The BGX-101L is factory preset with address “00.” Set the address
for the pull station by using a screwdriver to turn the rotary address
switches on the back of the unit to the appropriate settings.

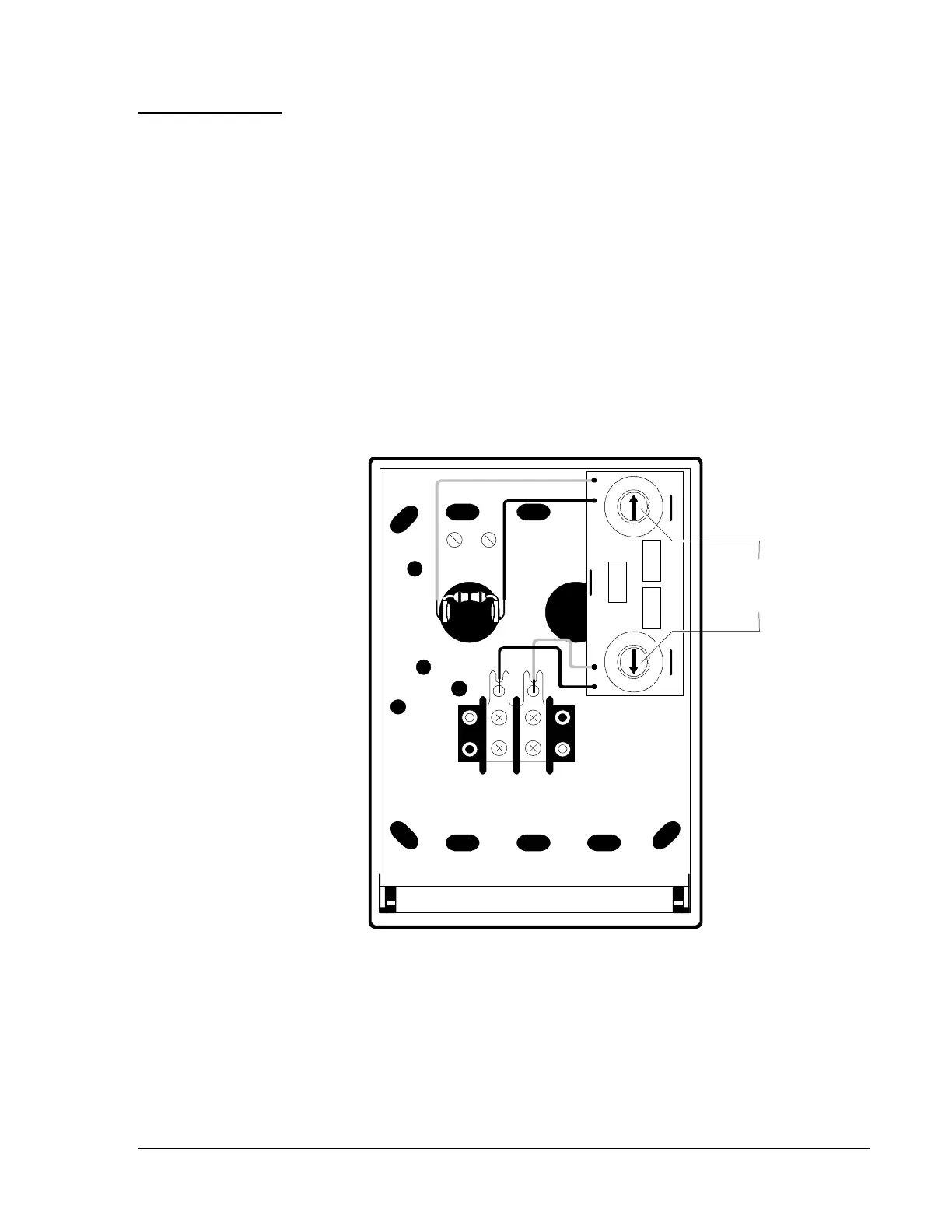

Figure 27: Wiring Addressable Manual Pull Stations
BGX-101
Addressable
Manual Pull
Station
BGX-101L
Installation
