Addressable Intelligent Module—AIM-200 Addressable Intelligent Module 5
The AIM-200 communicates with up to 99 intelligent detectors and up to
99 addressable modules. The AIM-200 reports device alarm or trouble
activity back to the CPU as one of eight mapped zones.

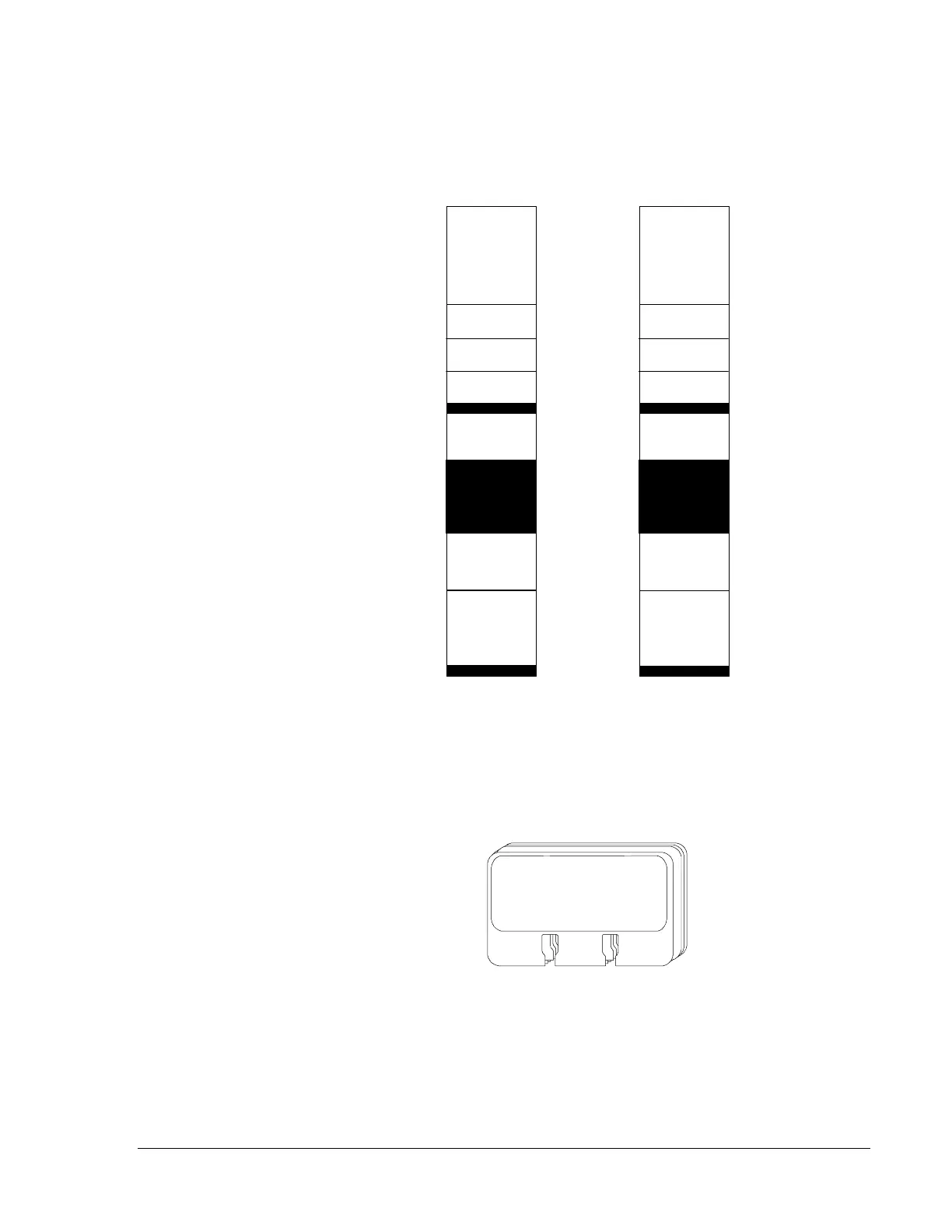

Figure 2: AIM-200 Label Inserts
The slide-in labels are printed with identification for system-defined LEDs
and switches. Space is provided to type in custom information for the
eight user-defined zones.
Figure 3: AIM-200 Card File
A special card file is attached to the bottom front of the AIM-200. Several
standard 4 in. by 2-1/4 in. cards are provided and may be marked with
device information by the installer. A reference card, which defines all
display codes, is included.
Label Inserts
Card File
To Next Page
