18 TEC1100 Series Thermostat Technical Bulletin
Snap
plastic lock
piece into place.
Hinged
Tab s
Insloc
Plastic
Lock Pins
Thermostat
Base

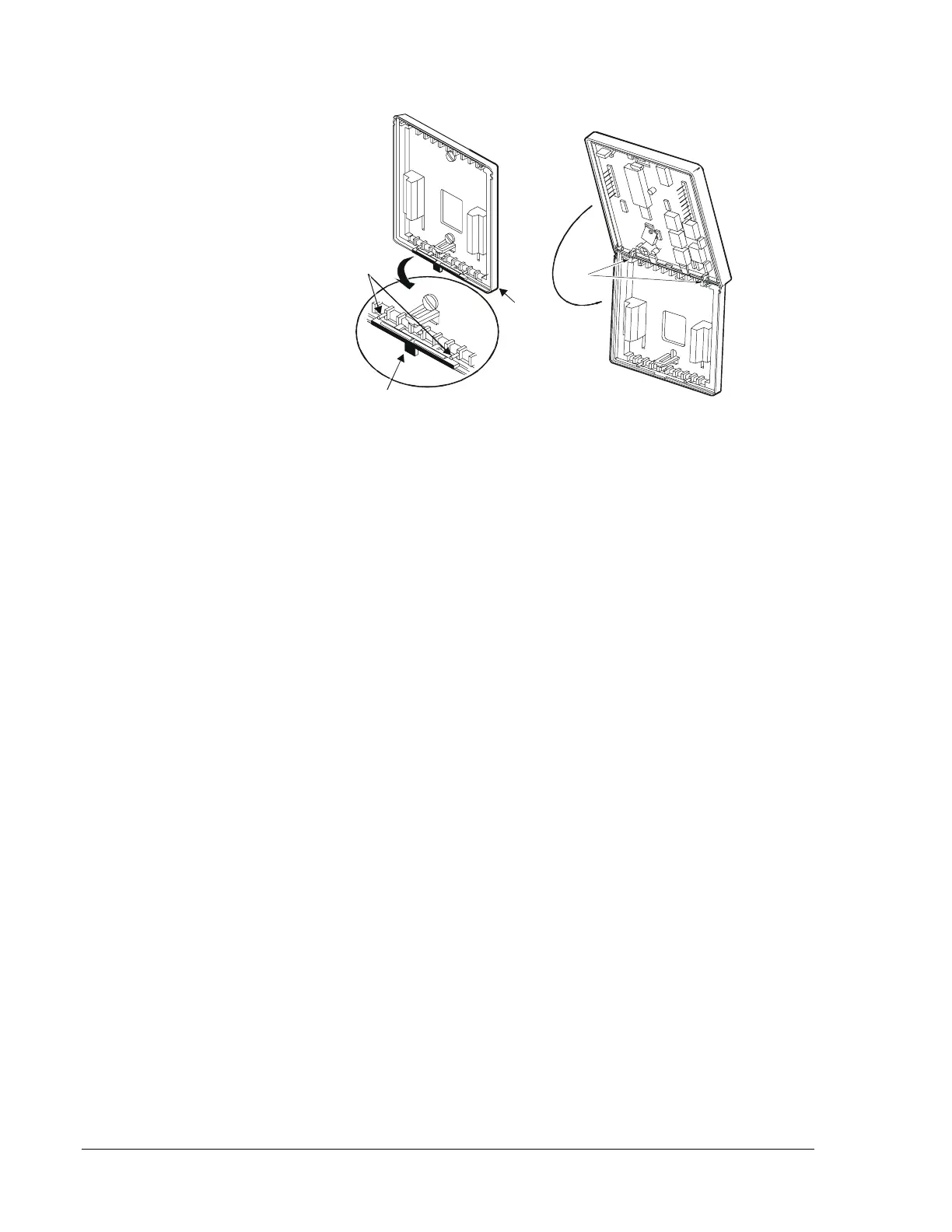

Figure 13: Installing the Thermostat Cover Lock
To reattach the thermostat:
1.
Position the thermostat inside the cover, and attach on the hinged tabs
located at the top of the base.
2.
Swing the thermostat and cover down.
3.
Press on the bottom center edge until the plastic lock snaps in place
(Figure 13).
Reattaching the
Thermostat
