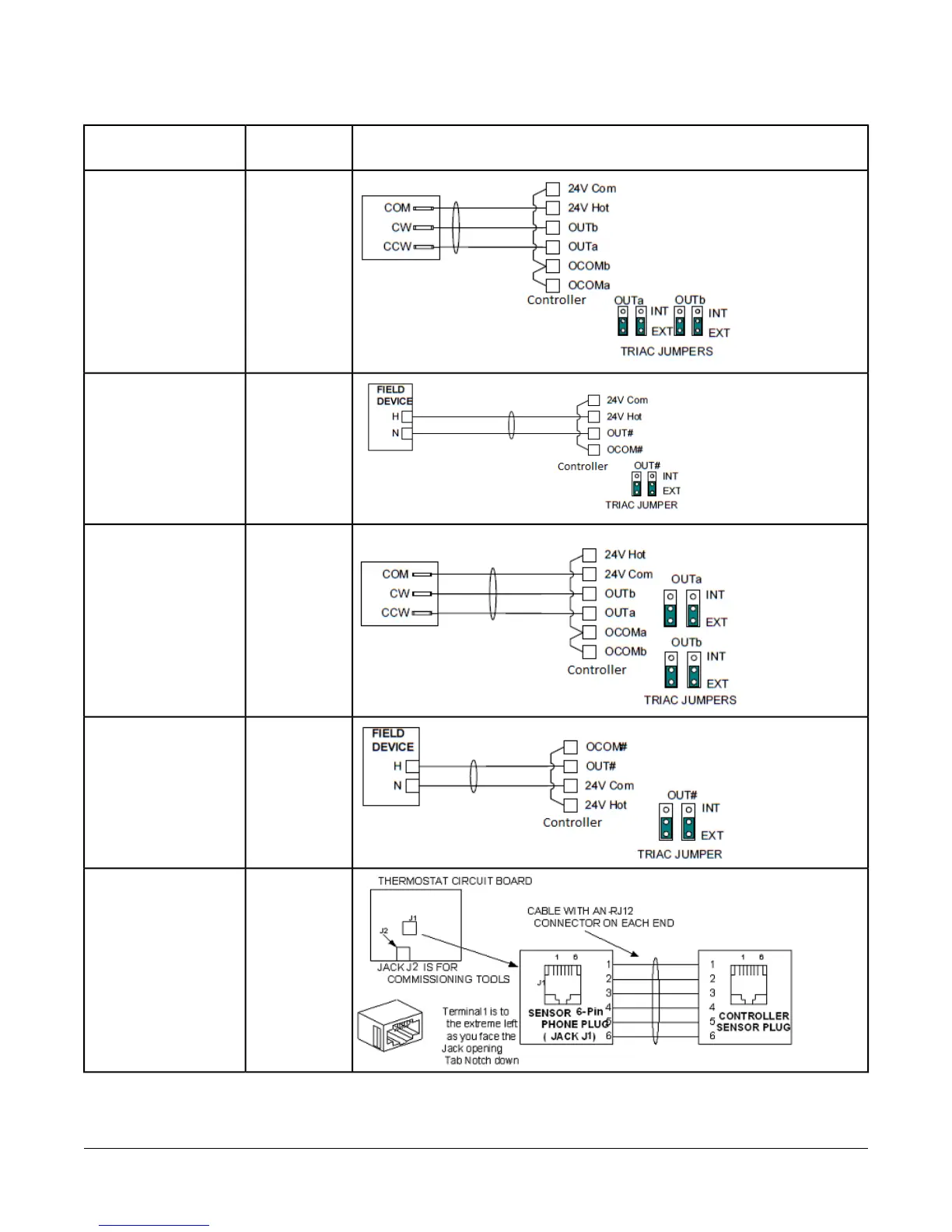

Table 2: Termination Details
Termination DiagramsType of
Input/Output
Type of Field Device
BOIncremental Control to
Actuator (Switch Low,
Externally Sourced)
BO24 VAC Binary Output
(Switch Low, Externally
Sourced)
BOIncremental Control to
Actuator (Switch High,
Externally Sourced)
BO24 VAC Binary Output
(Switch High, Externally
Sourced)
SA BusNetwork Stat with
Phone Jack (Fixed
Address = 199)
11FEC26 Field Equipment Controllers Installation Instructions
