PEAK® OEM 18 240 Volt SMART Equipment Controller Installation Instructions
4
To remove the controller from the DIN rail, pull the bottom mounting clips out to the extended position and carefully
lift the controller off the DIN rail.

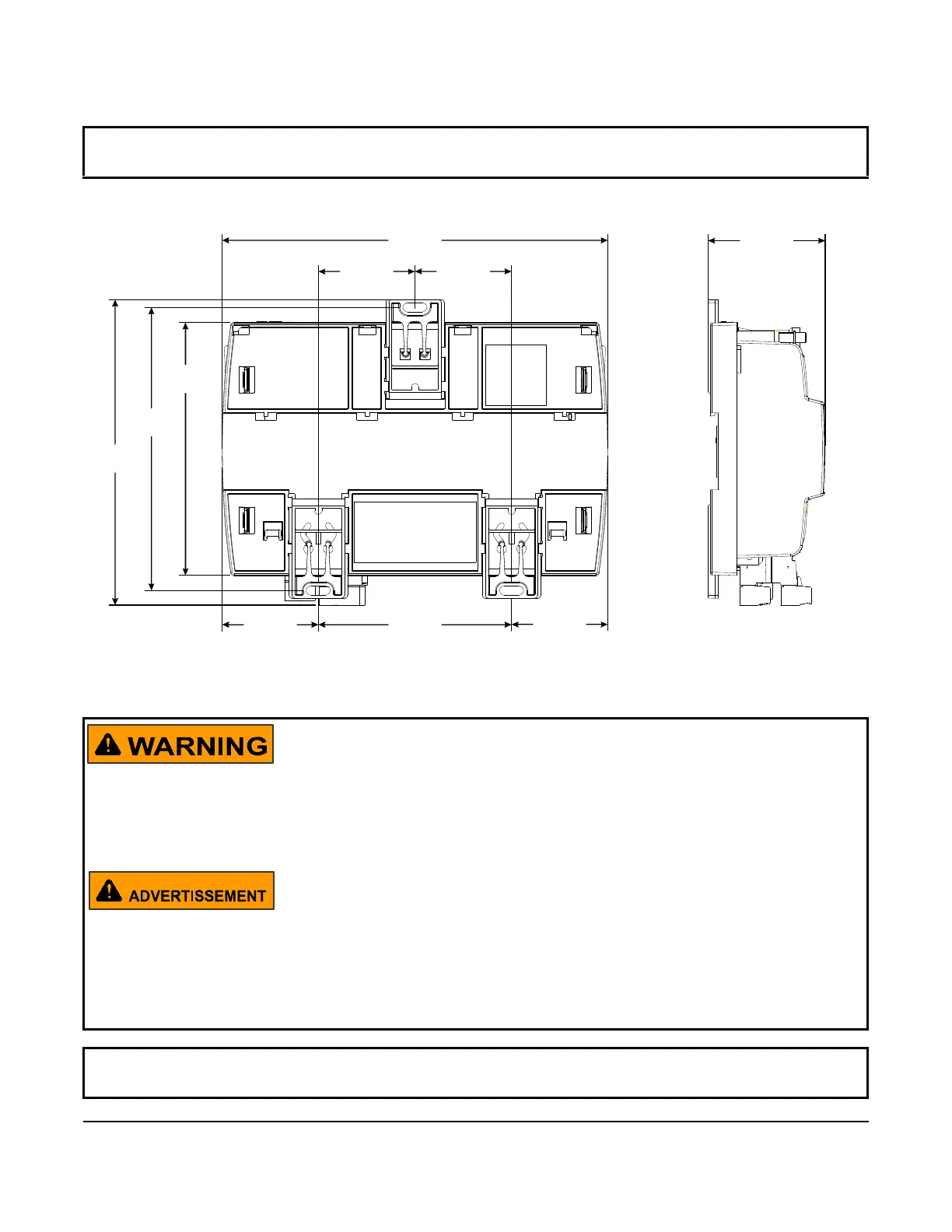

Figure 2: Back of Controller Showing Extended
Mounting Clips, DIN Rail Channel, and Mounting
Dimensions, mm (in.)
Wiring
Observe the following guidelines when wiring a field controller:
IMPORTANT: Do not overtighten the mounting screws. Overtightening the screws may damage the mounting
clips.
Risk of Electric Shock.
Disconnect or isolate all power supplies before making electrical connections. More than one disconnection or
isolation may be required to completely de-energize equipment. Contact with components carrying hazardous
voltage can cause electric shock and may result in severe personal injury or death.
Risque de décharge électrique.
Débrancher ou isoler toute alimentation avant de réaliser un branchement électrique. Plusieurs isolations et
débranchements sont peut-être nécessaires pour -couper entièrement l'alimentation de l'équipement. Tout contact
avec des composants conducteurs de tensions dangereuses risque d'entraîner une décharge électrique et de
provoquer des blessures graves, voire mortelles.
IMPORTANT: Do not exceed the controller electrical ratings. Exceeding controller electrical ratings can result
in permanent damage to the controller and void any warranty.
125
(4-15/16)
140
(5-1/2)
151
(5-15/16)
47.6
(1-7/8)
47.6
(1-7/8)
95.2
(3-3/4)
47.3
(1-7/8)
