S300-DIN-RDR2S Module Hardware Installation
24-10239-413 Rev. A 39
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.
S300-DIN Parts Accessory Kit
This kit (S300-DIN-PA1), which must be ordered separately, contains the following
items:
A DC power harness
A lock
A tamper switch
Spare connectors: 3-position and 4-position

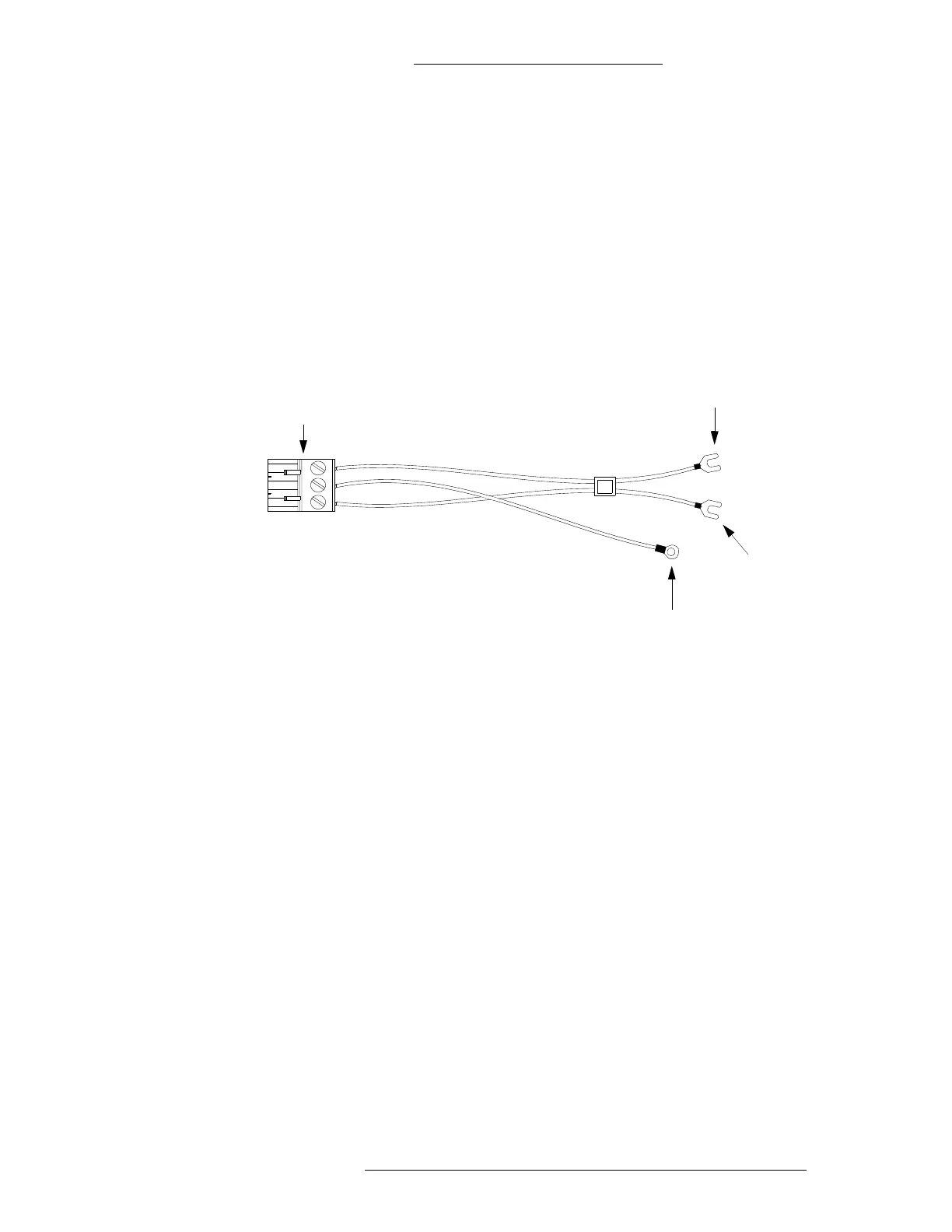

The DC Power Harness
Connects to
RDR2S module
Connects to
chassis ground
Connects to COM
of the power supply
Connects to +24
of the power supply
b
l
a
c
k
re
d
g
r
e
e
n
To replace the DC power harness:
1. Switch the power off.
2. Disconnect the DC power harness cables.
3. Replace the harness and reconnect the cables according to the previous
figur
e.
4. Switch the power on.
Replacing the Lock
To replace the lock, follow the instructions included with the hardware.
Replacing the Tamper Switch
T
o replace the tamper switch:
1.
Disconnect the tamper switch wires from the RDR2S input point.
2. Remove the nut securing the switch to the bracket.
3. Replace the switch and secure it with the nut.
4. Wire the tamper switch to a RDR2S input point.
