Appendices
19. Appendices
This section includes data sheets and instructions concerning the components and torque tables.
1. List of torque
2. Valves
Valves, type SCV 40-200
3. Diagrams and sketches
Piping diagram.................................................................... order specific
Wiring diagram................................................................... order specific
Dimension sketch................................................................ order specific
Placing of vibration dampers................................................. order specific
4. Electric motor
Instruction for motor............................................................ order specific

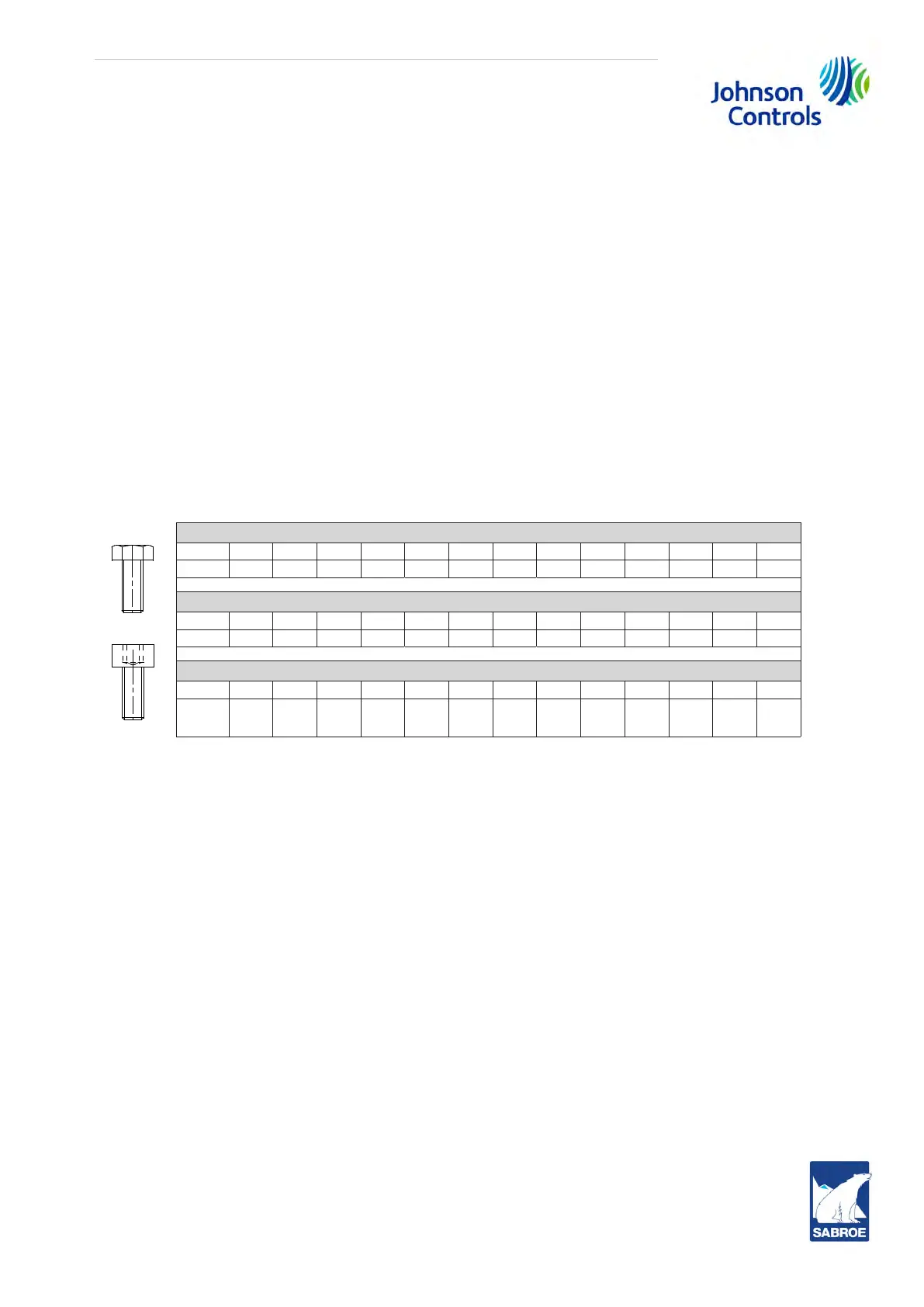

Torque for screws and bolts
Metric thread (ISO 5.6)
M 4 5
6 8 10 12 14 16 18 20 22 24 27
Nm 1.4 2.6 4.6 11 20 35 54 74 113 148 188 255 335
Metric thread (ISO 8.8)
M 4 5 6 8 10 12 14 16 18 20 22 24 27
Nm
2.7 5.2 9.2 22 40 69 108 147 225 295 375 510 670
Metric thread (ISO 12.9)
M 4 5 6 8 10 12 14 16 18 20 22 24 27
Nm 4.1 7.6 14 31 60 98 157 225 335 430 540 745
980
Table 59
