Physical and connection data
5.4.2 Electrical connections
The screw compressor unit can be controlled by a UniSAB III regulation and control system, which
is mounted on the unit and connected to a number of temperature and pressure sensors on the
unit.

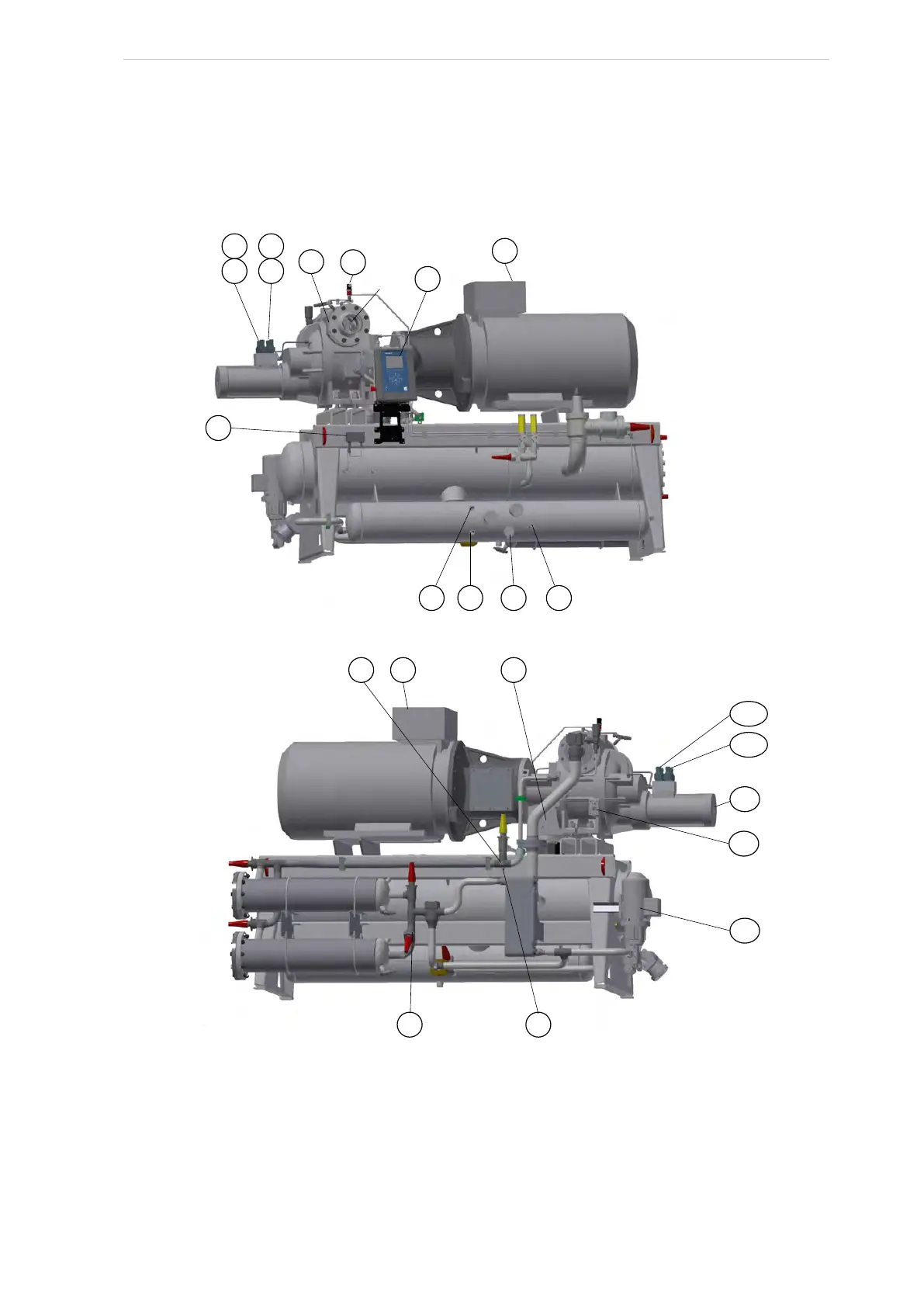

Fig. 62: Positions of electrical connections
Fig. 63: Positions of electrical connections, SAB 193 with OHU 04123 shown
181 183
182 184
151
158
EC
192
163 161
160
154
159
155
192
157
PM-1
ZI 3
ZI 2
YY3/-4
YY1/-2
153
156
