Johnson Controls Sabroe SAB 233 S - Page 83

Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
008831 en 2020.10
83/168
Physical and connection data

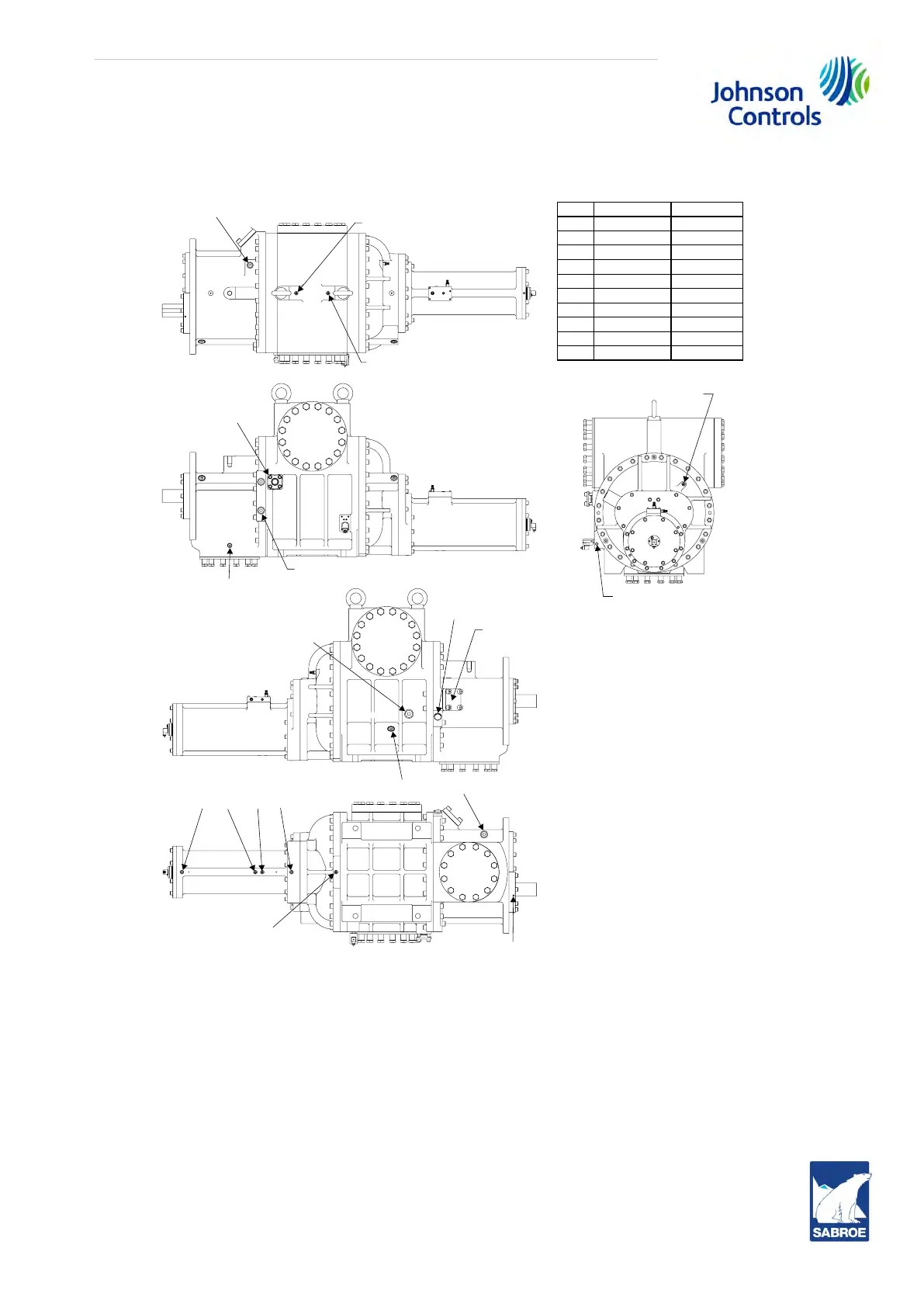

Fig. 61: Compressor port locations, SAB 283 E, X
PORTTHREAD SIZEO-RING
SC-53/4-16 UNF-2B980A0012K62
SC-69/16-18 UNF-2B980A0012K60
SC-8
1⁵⁄₁₆-12 UN-2B
980A0012K69
SC-99/16-18 UNF-2B980A0012K60
SC-139/16-18 UNF-2B980A0012K60
SC-149/16-18 UNF-2B980A0012K60
SD-1
1¹⁄₁₆-12 UN-2B
980A0012K66
SL-1
1⁵⁄₁₆-12 UN-2B
980A0012K69
SL-2
1⁵⁄₁₆-12 UN-2B
980A0012K69
SM-1
1⁵⁄₈-12 UN-2B
980A0012K71
COMPRESSOR PORT LOCATIONS - SAB 283 E, X (SGC 2821 AND 2824)
SC-14: LIQUID INJECTION BLEED
SD-1: COALESCER BLEED
SB-3: COMPRESSOR
OIL SUPPL
Y
SC-5: INLET PRESSURE
SE-1: ELECTRICAL
C
ONNECTOR (480 ONLY)
SV-1: VAPOR INJECTION
SL-1: LOW Vi LIQUID INJECTION
SM-1: MAIN OIL INJECTION
SC-6: DISCHARGE PRESSURE
SL-2: HIGH Vi LIQUID INJECTION
SC-8: CLOSED THREAD DRAIN
SC-13:
OIL DR
AIN - CYCLINDER
SC-7: SEAL WEAPAGE
SC-9: INLET HOUSING DRAIN
SC-5: INLET PRESSURE
