Johnson Controls Sabroe SAB 233 S - Page 74

Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
74/168
008831 en 2020.10
Technical description

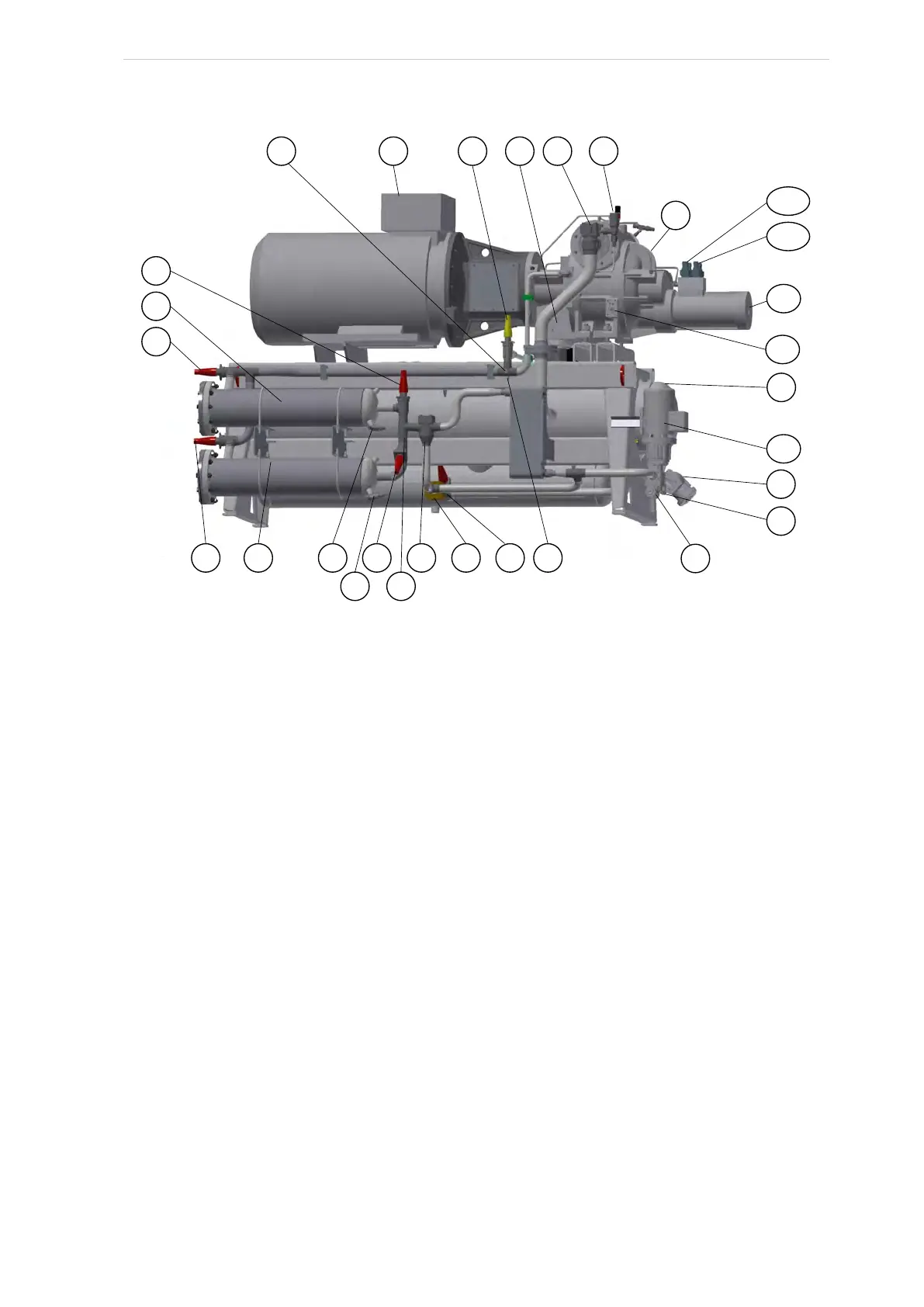

Fig. 54: Positions of valves and components SAB 193 with OHU 04123
155
192
124
157
127
128
136
196
138
191
146
144
PM-1
193
ZI 3
ZI 2
YY3/-4
YY1/-2
123 195 137 135 120 139 119 153
121 156
145
