Johnson Controls T7200 Installation Instructions

T7200
P/N 24-85784-00186 Rev. A_Issue Date: 09 2018
T7200-TB21-...JS0
GND
L
N

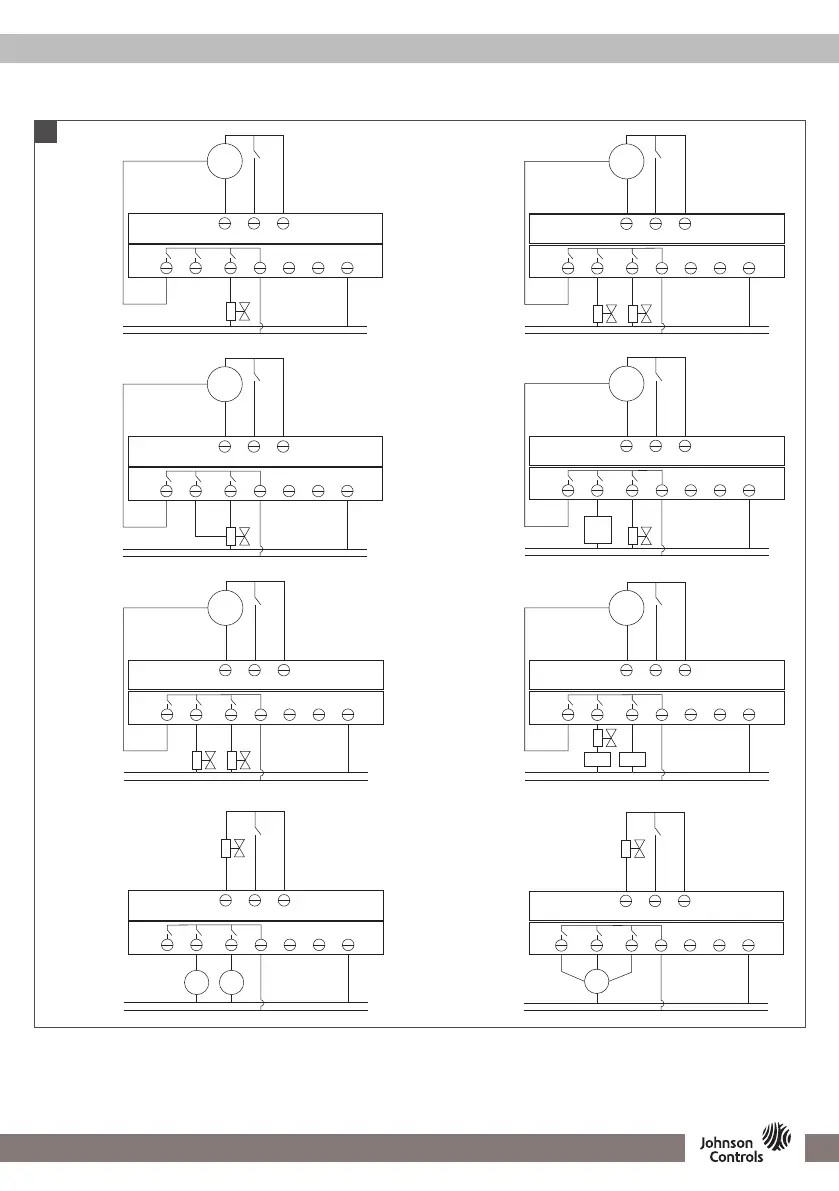

R3
2-pipe FCU
(parameter 01 set to 00)
0-10 V
N
100-240 VAC 50/60Hz
ECM
FAN
OCCAO
R2 R1
Cool / Heat
L
GND
L
N
R3
4-pipe FCU
(parameter 01 set to 01)
N
100-240 VAC 50/60Hz
ECM
FAN
OCCAO
R2
R1
Cool
L
Heat
0-10 V
GND
L
N
R3
2-pipe FCU, 3 wires On/Off valve
(parameter 01 set to 02)
N
100-240 VAC 50/60Hz
ECM
FAN
OCCAO
R2 R1
On
L
Off
0-10 V
GND
L
N
R3
2-pipe FCU with TiO2/ESP
(parameter 01 set to 03)
N
100-240 VAC 50/60Hz
ECM
FAN
OCCAO
R2 R1
Cool /
Heat
L
0-10 V
TiO2
ESP
GND
L
N
R3
2-pipe FCU with floor heating
(parameter 01 set to 04)
N
100-240 VAC 50/60Hz
ECM
FAN
OCCAO
R2 R1
Cool /
Heat
L
Floor
Heater
0-10 V
GND
L
N
R3
Water source heat pump
(parameter 01 set to 05)
N
100-240 VAC 50/60Hz
ECM
FAN
OCCAO
R2 R1 L
0-10 V
CMPRV
RV = REVERSING VALVE CMP = COMPRESSOR
GND
L
N
R3
Single fan speed AHU
(parameter 01 set to 06)
N
100-240 VAC 50/60Hz
OCCAO
R2 R1 L
Damper
Cool / Heater
FAN
M
GND
L
N
R3
2-pipe FCU, proportional valve
(parameter 01 set to 07)
N
100-240 VAC 50/60Hz
OCCAO
R2 R1
Low
L
Hi
Cool / Heater
Med
FAN
