Johnson Controls T7200 - Page 3

T7200
P/N 24-85784-00186 Rev. A_Issue Date: 09 2018

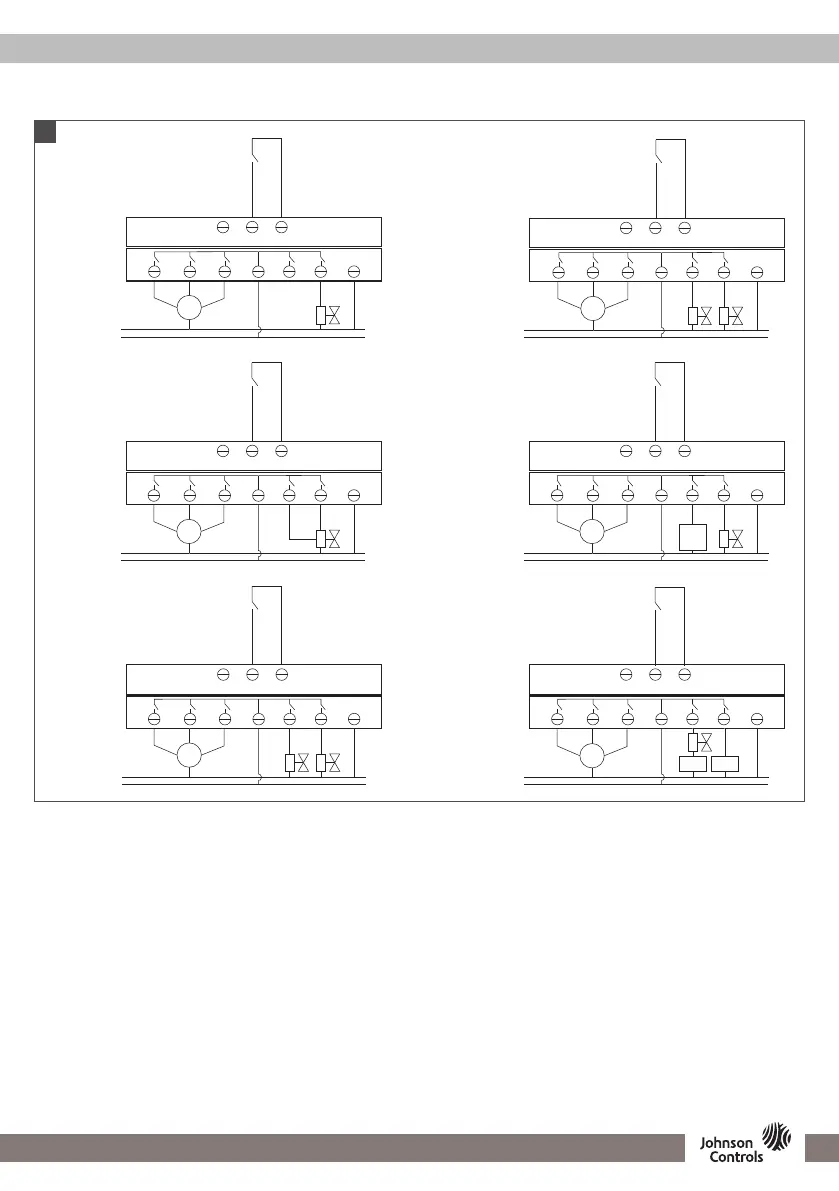

T7200-TF20-...JS0
GND
L
N
2-pipe FCU
(parameter 01 set to 00)
N
100-240 VAC 50/60Hz
OCC
Low LHi Med V1
V2
Cool /
Heat
FAN
GND
L
N
4-pipe FCU
(parameter 01 set to 01)
N
100-240 VAC 50/60Hz
OCC
Low LHi
Med V1
V2
Heat
FAN
Cool
GND
L
N
2-pipe FCU, 3 wires On/Off valve
(parameter 01 set to 02)
N
100-240 VAC 50/60Hz
OCC
Low L
Hi
Med V1
V2
Off
On
FAN
GND
L
N
2-pipe FCU with TiO2/ESP
(parameter 01 set to 03)
N
100-240 VAC 50/60Hz
OCC
Low L
Hi
Med V1
V2
Cool /
Heat
FAN TiO2
ESP
GND
L
N
2-pipe FCU with floor heating
(parameter 01 set to 04)
N
100-240 VAC 50/60Hz
OCC
Low LHi Med V1
V2
Cool /
Heat
Floor
heater
FAN
GND
L
N
Water source heat pump
(parameter 01 set to 05)
N
100-240 VAC 50/60Hz
OCC
Low LHi Med V1V2
CMPRV
RV = REVERSING VALVE CMP = COMPRESSOR
FAN
