Johnson Controls TEC3000 Series - Page 10

TEC3000 Series Networked and Wireless Proportional Fan Coil and Individual Zone Thermostat Controllers with
Dehumidification Capability Quick Start Guide
10

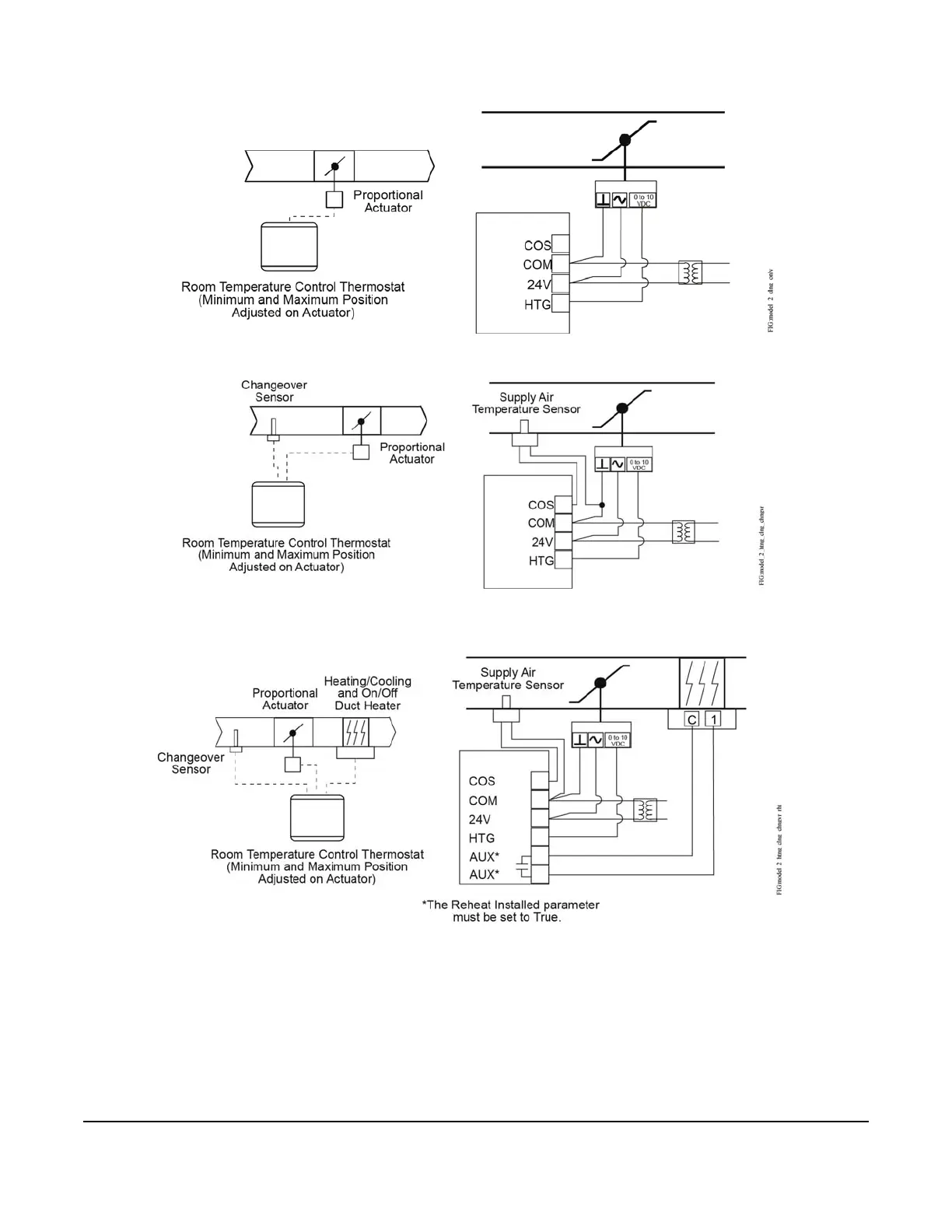

Figure 6: Proportional 0 to 10 VDC control (pressure-dependent VAV)
Figure 7: Proportional 0 to 10 VDC control (pressure-dependent VAV with changeover sensor/switch)
Figure 8: Proportional 0 to 10 VDC control
(pressure-dependent VAV with changeover sensor/switch and reheat)
