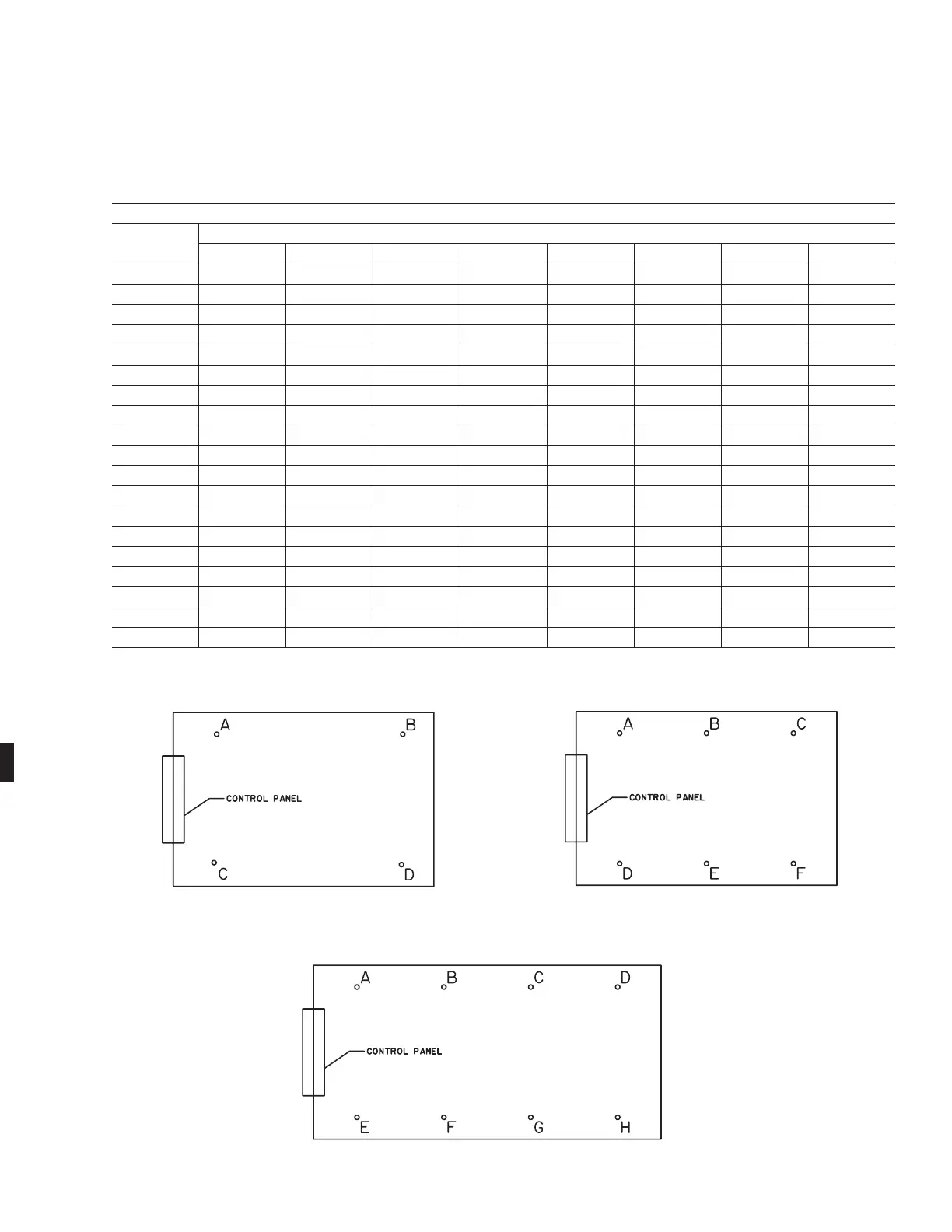

NEOPRENE ISOLATOR SELECTION - VMC TYPE
Copper Fin, Neoprene Mount Selections
YCAL
VMC Type RD
A B C D E F G H
0014 -3 Grn -3 Grn -3 Gray -3 Grn --- --- --- ---
0020 -3 Grn -3 Grn -3 Gray -3 Grn --- --- --- ---
0024 -3 Gray -3 Gray -3 Gray -3 Gray --- --- --- ---
0030 -3 Gray -3 Gray -3 Gray -3 Gray --- --- --- ---
0034 -3 Gray -3 Gray -3 Gray -3 Gray --- --- --- ---
0040 -4 Blk -4 Blk -4 Blk -4 Blk --- --- --- ---
0042 -4 Blk -4 Blk -4 Blk -4 Blk --- --- --- ---
0044 -4 Blk -4 Blk -4 Blk -4 Blk --- --- --- ---
0050 -4 Blk -4 Blk -4 Blk -4 Blk --- --- --- ---
0060 -4 Blk -4 Blk -4 Blk -4 Blk --- --- --- ---
0064 -4 Red -4 Red -4 Red -4 Red --- --- --- ---
0070 -4 Red -4 Red -4 Red -4 Red --- --- --- ---
0074 -4 Red -4 Red -4 Red -4 Red --- --- --- ---
0080 -4 Red -4 Red -4 Red -4 Red --- --- --- ---
0090 -4 Blk -4 Blk -4 Blk -4 Blk -4 Blk -4 Blk --- ---
0094 -4 Blk -4 Blk -4 Blk -4 Blk -4 Blk -4 Blk --- ---
0104 -4 Blk -4 Blk -3 Gray -3 Gray -4 Blk -4 Blk -3 Gray -3 Gray
0114 -4 Red -4 Blk -4 Blk -3 Gray -4 Red -4 Blk -4 Blk -3 Gray
0124 -4 Red -4 Blk -4 Blk -3 Gray -4 Red -4 Blk -4 Blk -3 Gray
COPPER FIN COILS - CON'D
APPENDIX 1 – ISOLATOR SELECTIONS
"Replacement
information at
back of manual"
