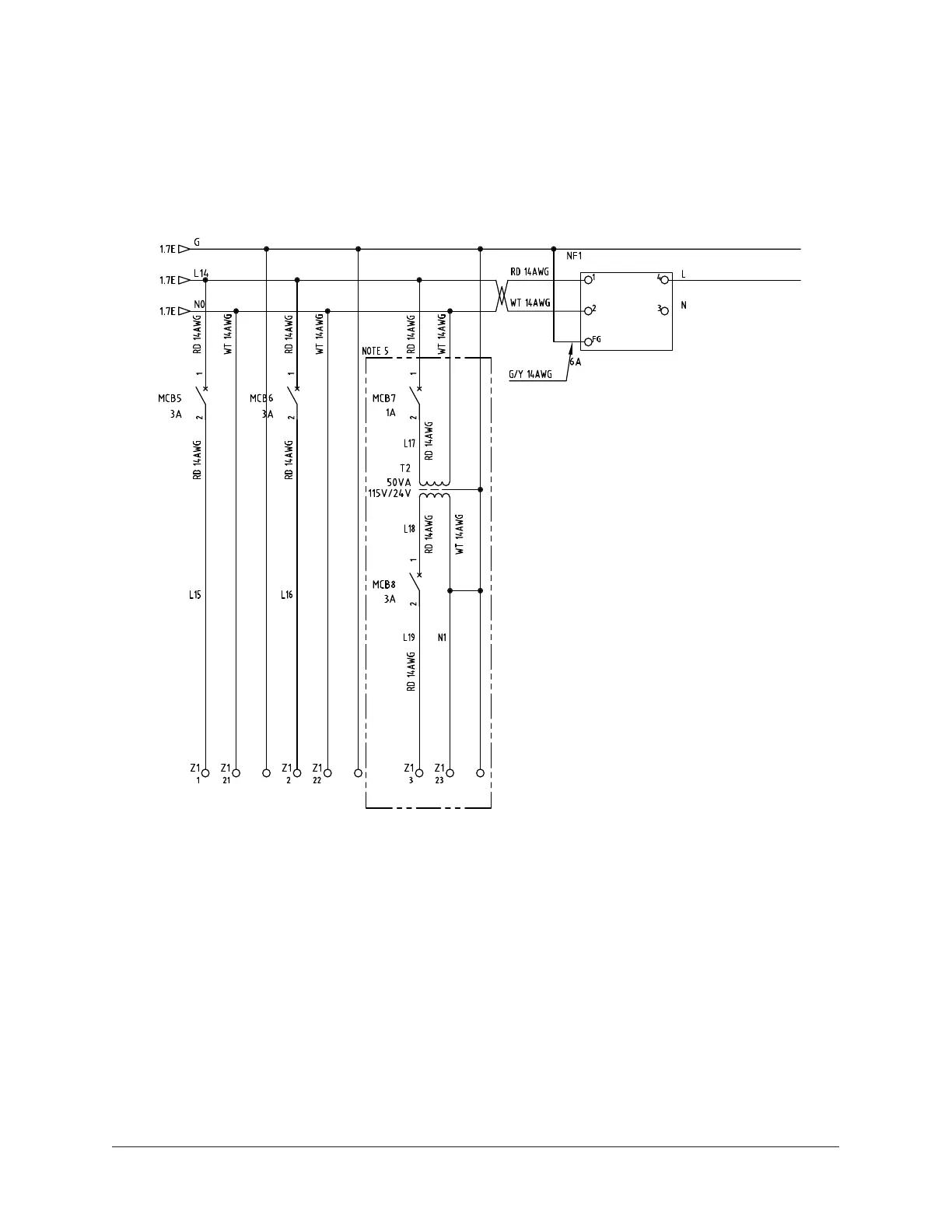

Figure 22: Power supply wiring
LD29586
.
.
.
.
115 VAC power
supply control valve
115 VAC power supply
WS burner controller
24 VAC power supply
control valve
Noise filter for
control circuit
24 VDC power supply
control relay
YHAU-C Single Effect Steam-Fired Absorption Chiller56
