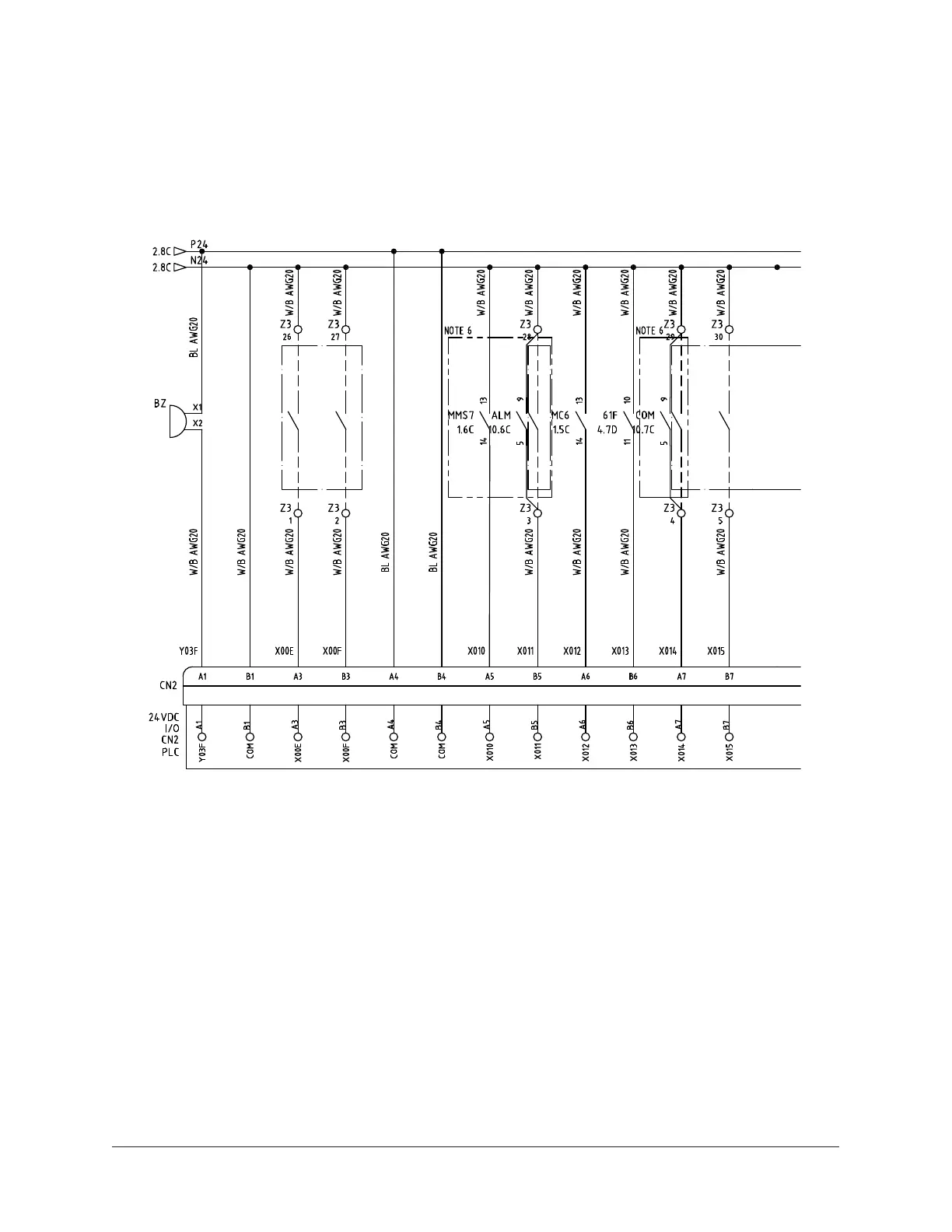

Figure 23: 24 VDC I/O signal wiring
LD29587
Buzzer
Output com
Remote start
(potential free signal)
Remote stop
(potential free signal)
Input com
Input com
PF/WS burner overload
PF/WS burner failure
Vacuum pump
interlock
High temperature generator
solution level
PF/WS burner operation
Chilled water pump
interlock
YHAU-C Single Effect Steam-Fired Absorption Chiller58
