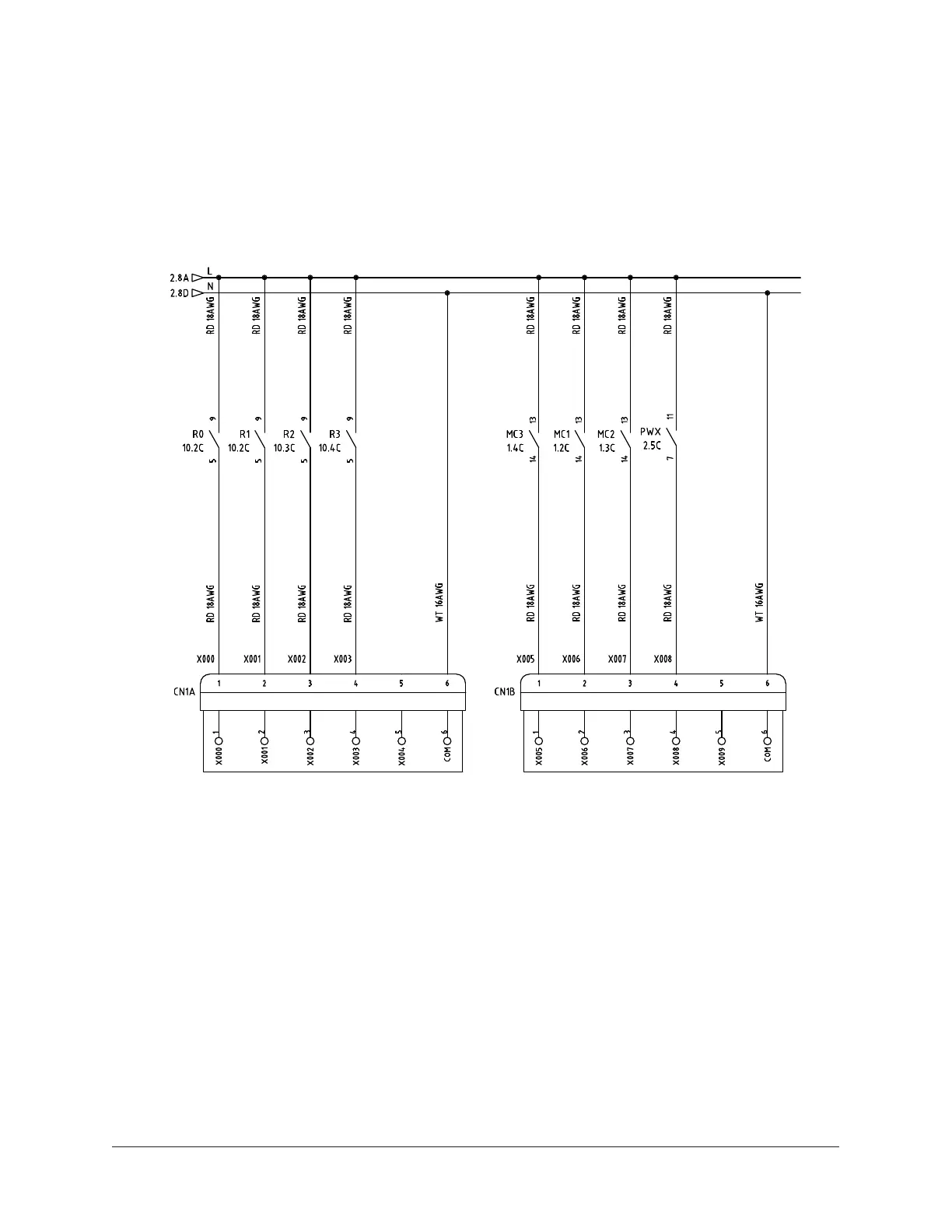

Figure 24: 115 V input signal wiring
Chilled water
flow switch
Hot water
flow switch (option)
Cooling water
flow switch (option)
High temperature generator
pressure switch
Input com
Refrigerant pump
interlock
Solution circulation
pump interlock
Solution spray pump
interlock
24 VDC power supply
control relay
Input com
115 VAC
Input
CN1A
PLC
115 VAC
Input
CN1B
PLC
LD29588
YHAU-C Single Effect Steam-Fired Absorption Chiller60
