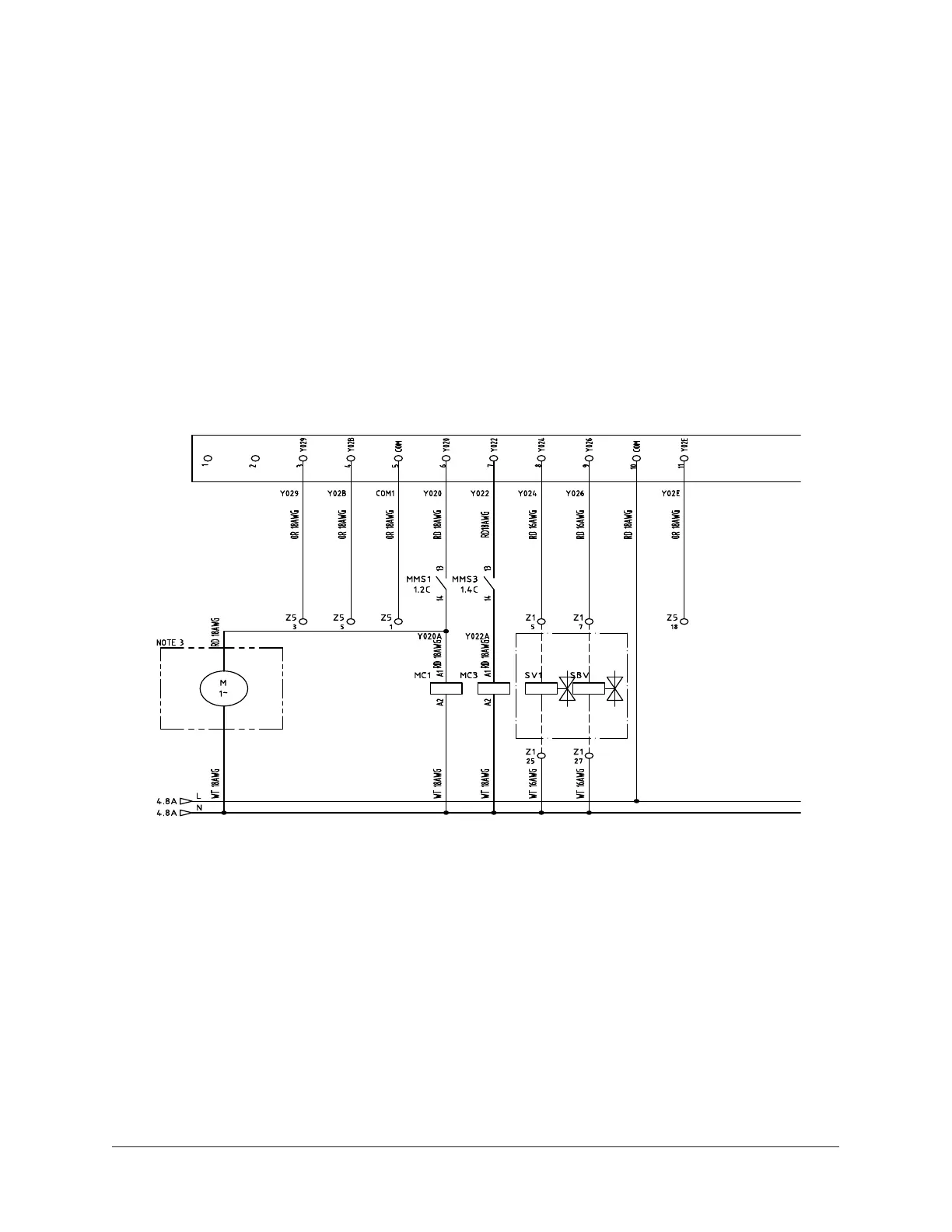

Figure 25: PLC output wiring
Failure
Cooling water pump
operation
Output com
Solution circulation pump
Refrigerant pump
Purge gas
solenoid valve 1
Solution blow
solenoid valve
Output com
Failure
Relay
output
TB1A
PLC
Fan
LD29589
YHAU-C Single Effect Steam-Fired Absorption Chiller62
