Johnson Controls ZST06 - ZST12 Unit Physical Dimensions; ZST12 Physical Dimensions

5566021-TIM-B-1118
Johnson Controls Ducted Systems 11

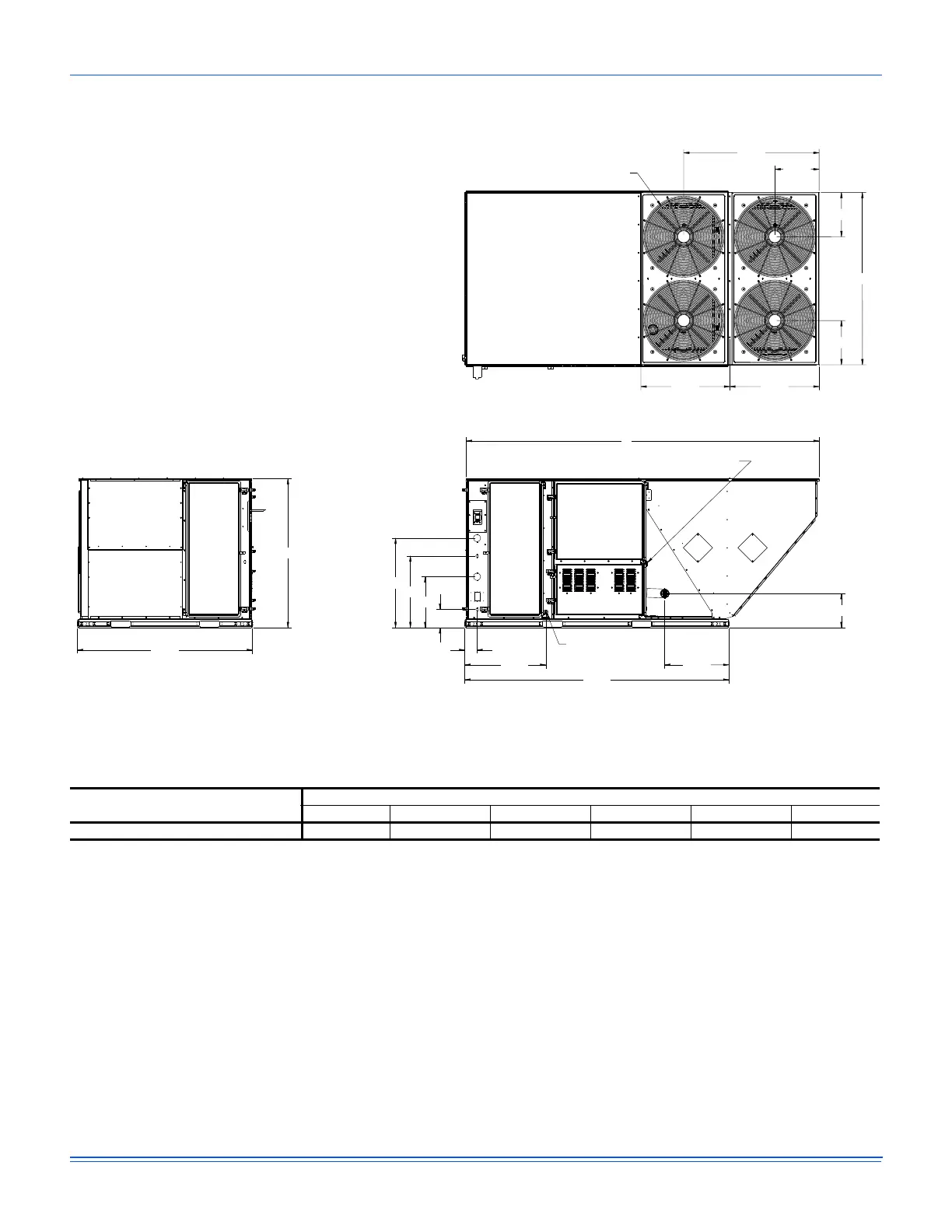

Figure 9: ZST12 physical dimensions
LEFT
59.00
A
C
D
E
F
4.19
27.31
89.00
21.19
FRONT
SEE DETAIL B
FOR DRAIN LOCATION
11.38
SEE DETAIL A FOR GAS INLET
B
29.95 30.11
14.92
58.09
14.92
14.92
45.64
4X Ø 24.38
Table 6:ZST12 unit physical dimensions
Unit model number
Dimension (in.)
AB C D EF
ZST12 50 3/4 119 1/2 30 3/16 24 3/16 17 3/16 6 3/16
