Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.
THE LENGTH OF THE FORKS MUST BE A MINIMUM OF 60
INCHES.

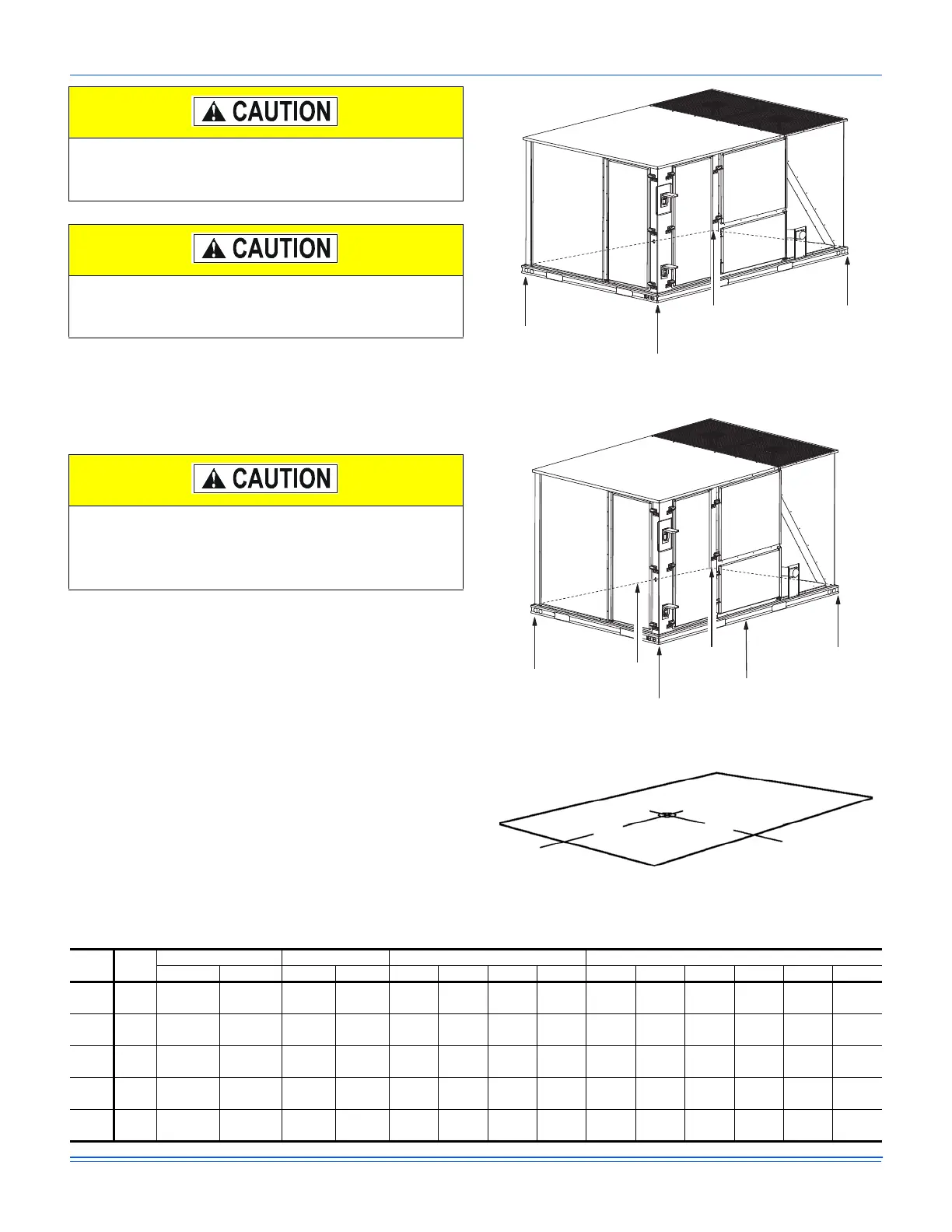

Figure 5: Unit 4 point load weight
Figure 6: Unit 6 point load weight
Figure 7: Center of gravity
If a unit is installed on a roof curb other than a Ducted
Systems roof curb, you must apply gasketing to all
surfaces that come in contact with the unit underside.
Before lifting the unit, make sure that the unit weight is
distributed equally on the rigging cables so that it lifts
evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils must be protected from rigging
cable damage with plywood or other suitable material.
Table 3:ZS-06 through -12 weights and dimensions
Size
(tons)
Model
Weight (lbs.) Center of gravity 4 point load location (lbs.) 6 point load location (lbs.)
ShippingOperatingX Y ABCDABCDEF
-06
(6.5)
ZS 868 863 47.25 24.00 165 186 272 240 108 117 127 185 170 157
-07
(7.5)
ZS 865 860 48.25 25.34 169 200 266 225 110 122 137 182 163 146
-08
(8.5)
ZS 999 994 47.25 24.75 196 221 306 271 128 139 151 209 192 177
-10
(10)
ZS 1051 1046 45.00 25.50 224 229 300 294 148 151 153 201 198 195
-12
(12.5)
ZS 1258 1253 49.75 24.50 229 291 410 323 147 171 202 284 241 207
