Johnson Controls ZST06 - ZST06 through T10 Side Duct Dimensions; ZST12 Side Duct Dimensions; ZST06 through T10 Unit Side Duct Openings; ZST12 Unit Side Duct Openings

5566021-TIM-B-1118
Johnson Controls Ducted Systems 15

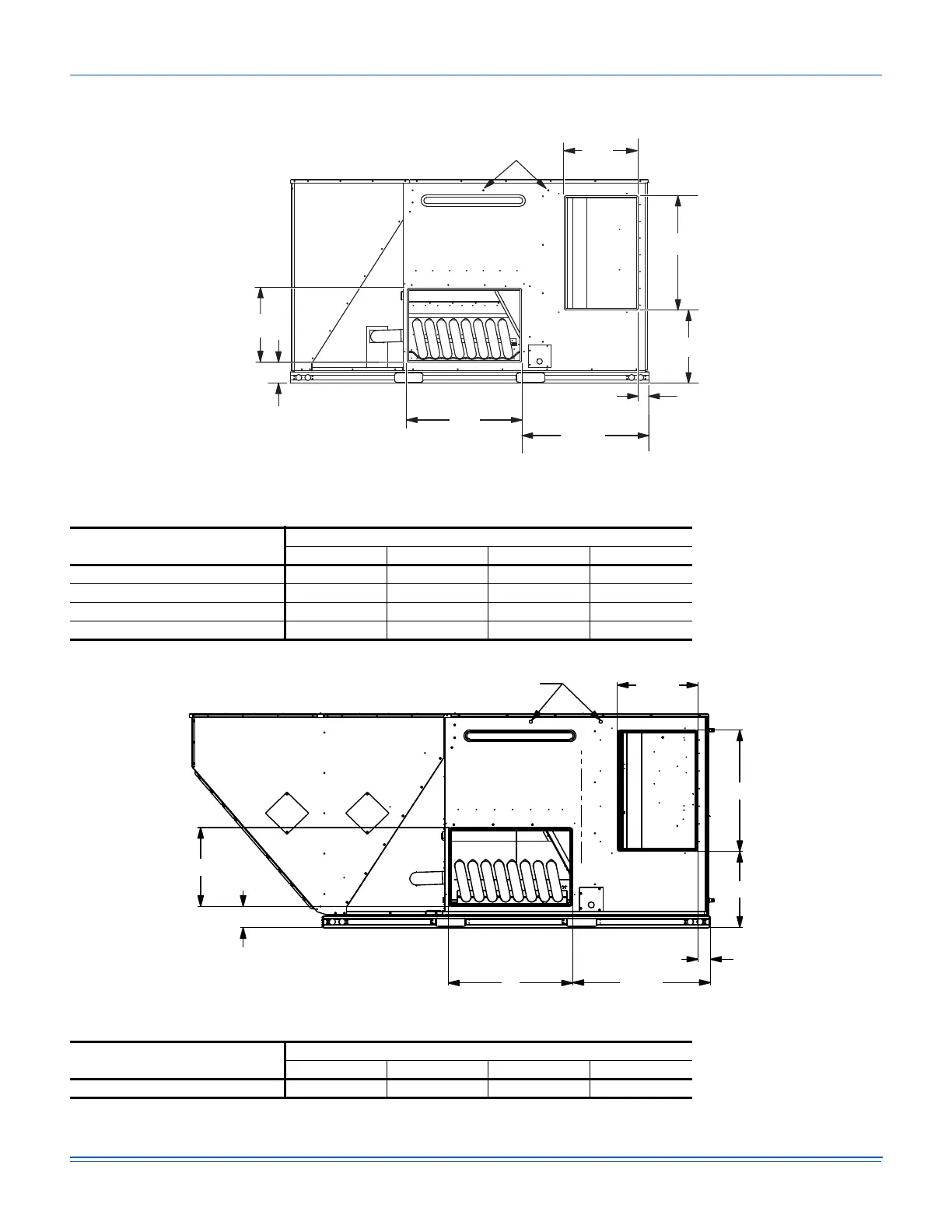

Figure 12: ZST06 through T10 unit side duct openings
Figure 13: ZST12 unit side duct openings
D o t P l u g s
5 - 5 /3 2
3 1 - 1 1 /1 6
2 - 3 1 /3 2
1 8 - 1 /4
Return
Air
Supply Air
A
B
C
D
Table 9:ZST06 through T10 side duct dimensions
Unit model number
Dimension (in.)
ABCD
ZST06 27 3/4 12 1/16 27 1/2 16
ZST07 27 3/4 12 1/16 27 1/2 16
ZST08 28 1/4 18 1/16 28 1/4 18 1/4
ZST10 28 1/4 18 1/16 28 1/4 18 1/4
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 10:ZST12 side duct dimensions
Unit model number
Dimension (in.)
ABCD
ZST12 28 1/4 18 1/16 28 1/4 18 1/4
