5566019-BIM-B-1118
16 Johnson Controls Ducted Systems

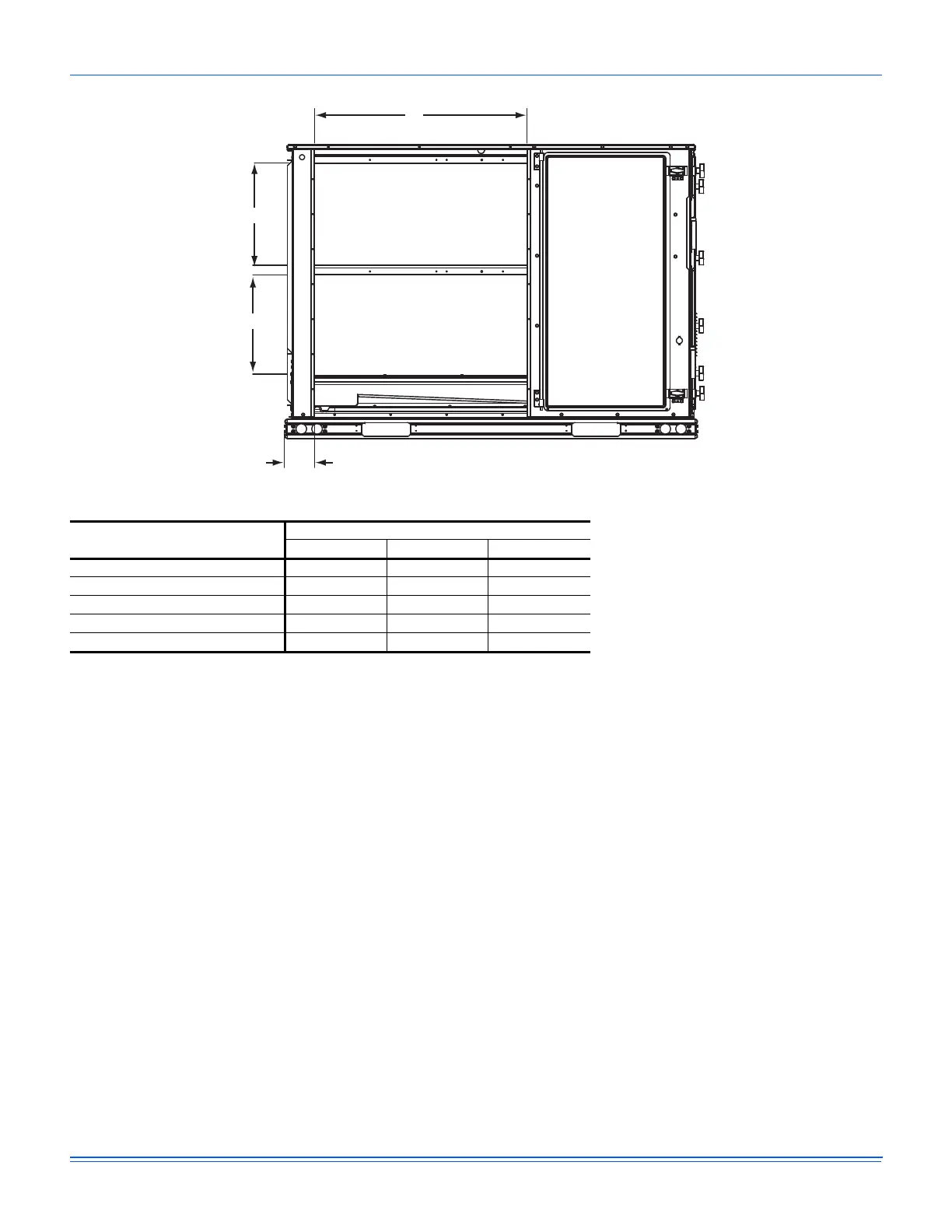

Figure 14: ZS-06 through -12 unit left duct opening
4-5/16
A
C
B
Table 11:Left/end duct dimensions
Unit model number
Dimension (in.)
ABC
-06 30.357 13.365 22.516
-07 30.357 13.365 22.516
-08 30.358 22.580 22.330
-10 30.358 22.580 22.330
-12 30.358 22.580 22.330
