Johnson Controls ZST06 - ZST06 through T12 Unit Electrical Entry

5566021-TIM-B-1118
14 Johnson Controls Ducted Systems

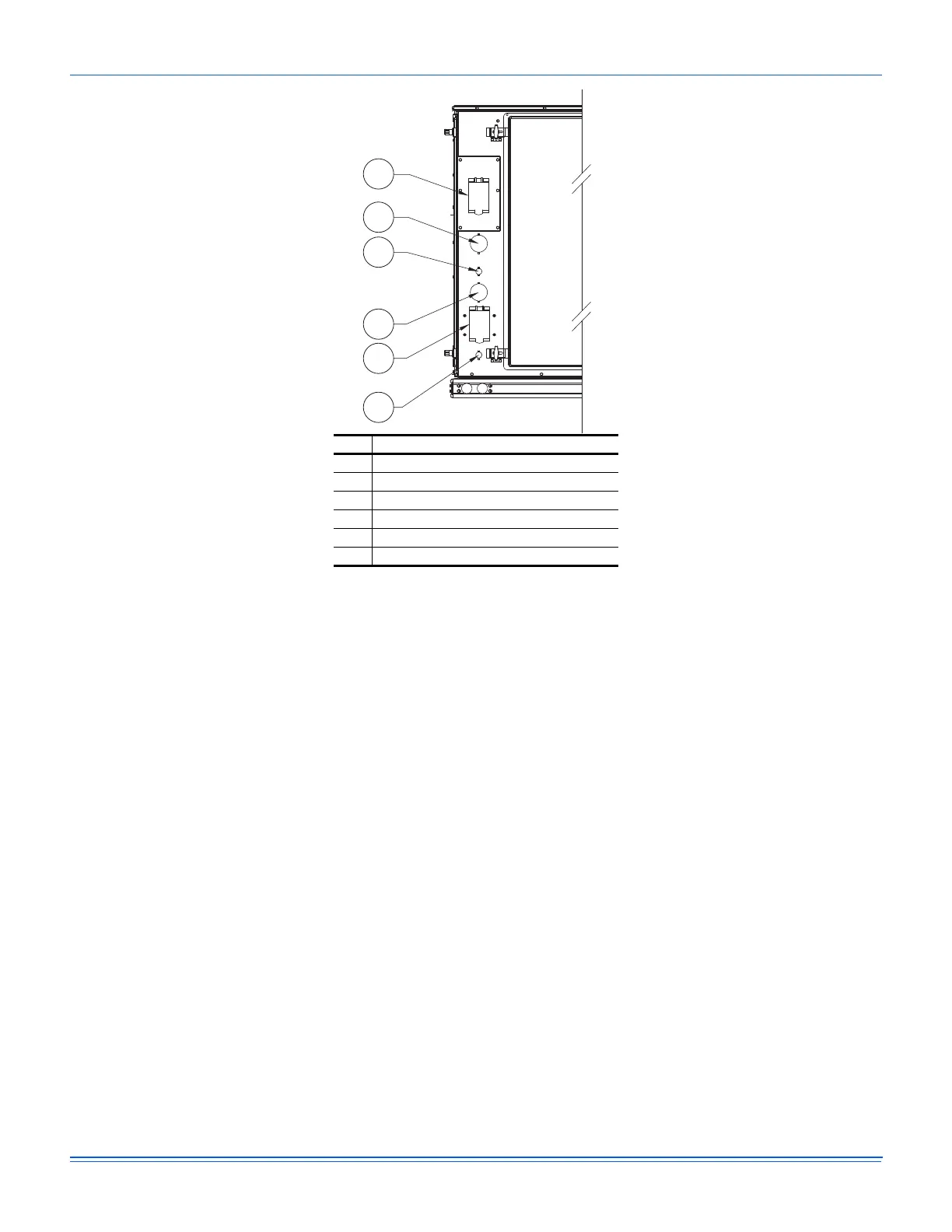

Figure 11: ZST06 through T12 unit electrical entry
Item Description
A Disconnect switch cover
B Power entry Ø 2-1/2
C Control entry Ø 7/8
D Power entry Ø 2-1/2
E Convenience outlet cover
F Convenience outlet power entry Ø 7/8
A
B
C
D
E
F
