7. Using the Product

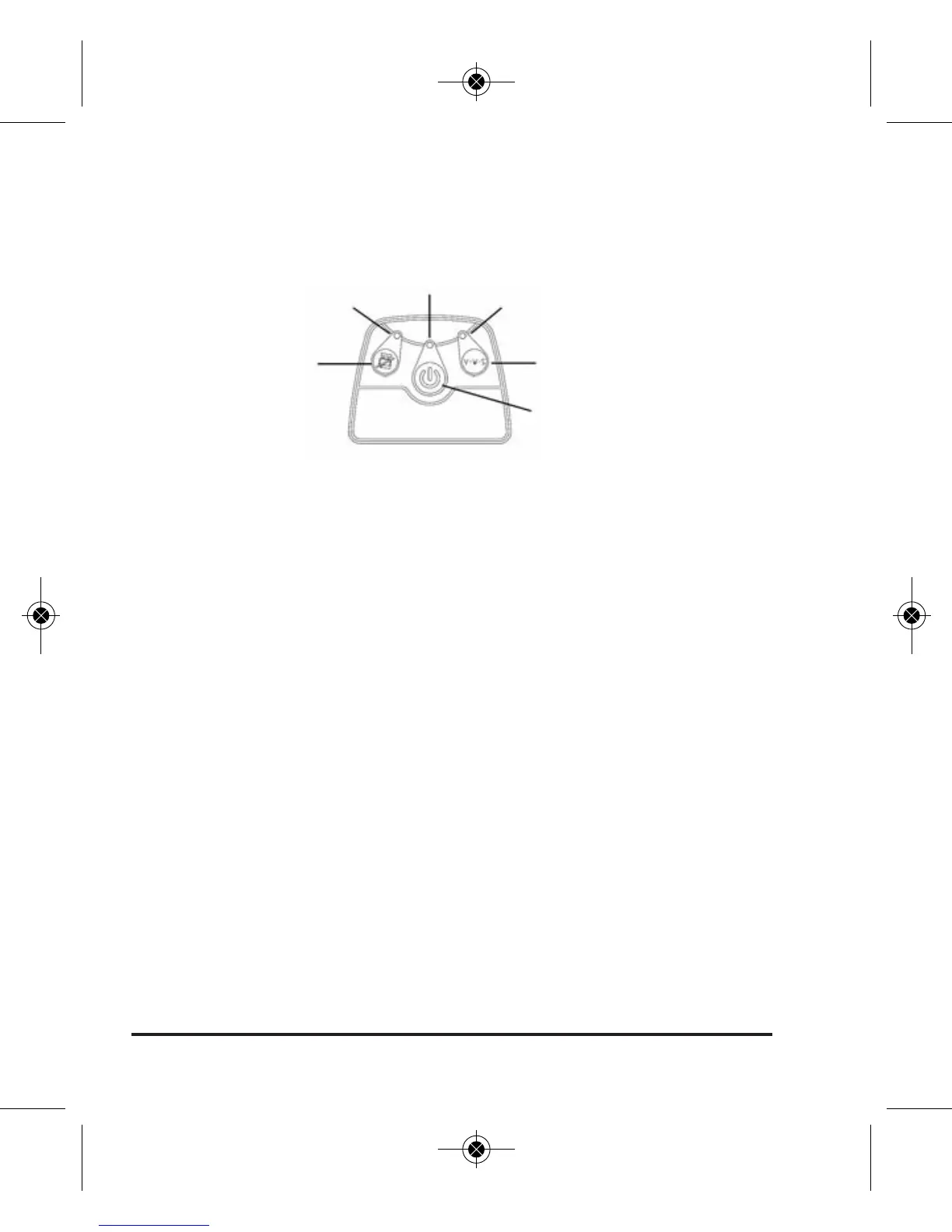

Operating Panel
Power LED
LED On = power on
LED Off = power off
LED Flashing = low battery
Tilt Mode LED
LED Flashing Slowly = laser is entering Tilt mode
LED On = laser Tilt mode is on
LED Flashing Quickly = laser has been moved and height of laser
may have been changed
LED Off = Tilt mode is turned off
Vibrate/V-W-S Mode LED
LED On = laser is in vibrate/V-W-S mode
LED Off = laser is not in vibrate/V-W-S mode
Power LED
Tilt Mode LED
Tilt Mode
Button
Vibrate/V-W-S Mode LED
Vibrate/V-W-S
Mode Button
Power On/Off Button
