CONTROL
BOARD REPLACEMENT PROCEDURE
T
oo
l
s re
q
u
ire
d
:
5-4
Philips
screwdriver
Crank extractor
Coin
Adjustable
wrench
Procedur
e:
1.
Remove the rear
(see fig. 1) or side
cover
, then the crank
(for JPC/B/S)
2.
Disconnect all the
cables from the
control board.
3.
Replace it with a new
one.
4.
Reconnect all the cables.
5.
Reverse step 1-3 to install the side cover
.

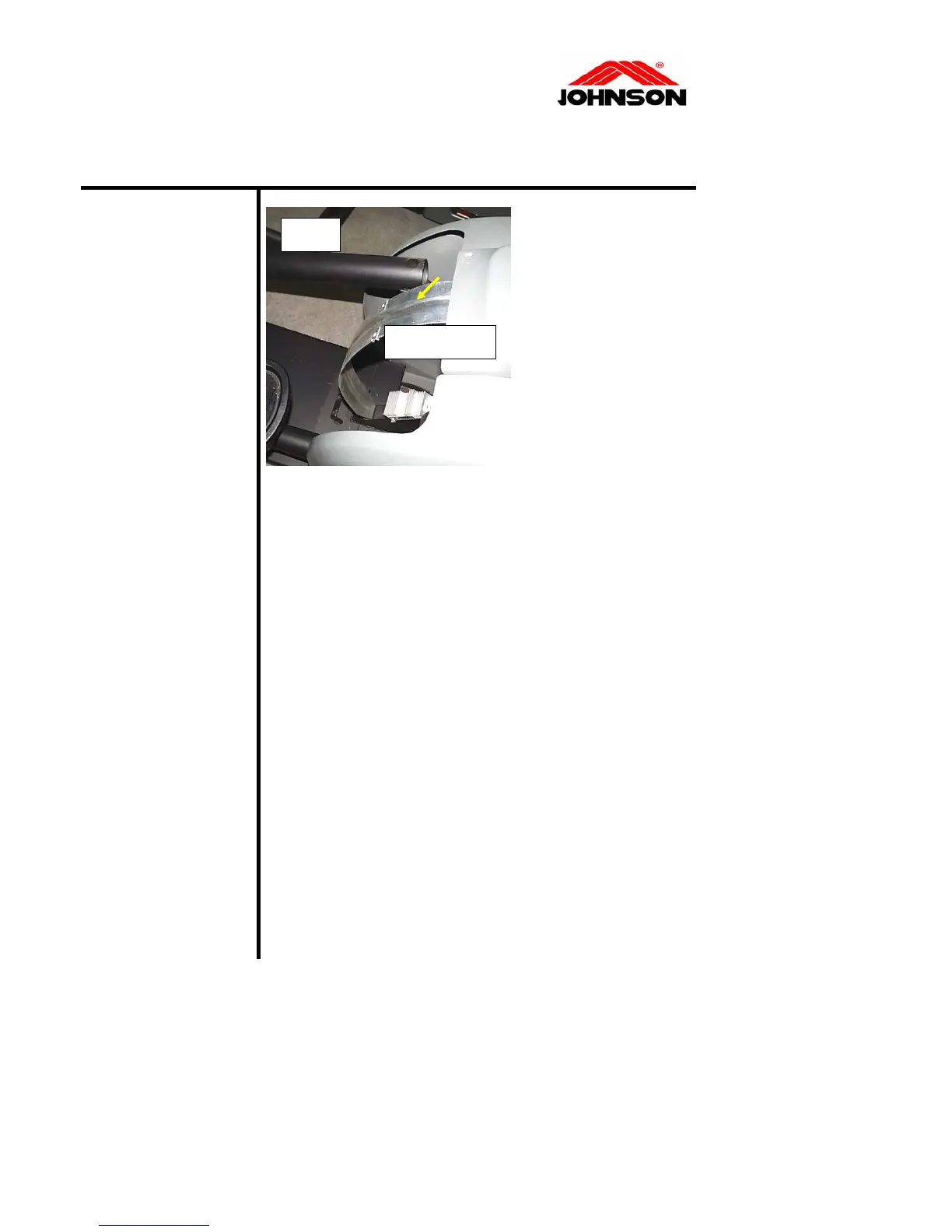

Fig.1
Control board
22
24
Table of Contents
Section 1
3
Table of Contents
3
Comments and Questions
4
Scope of Warranty
4
Intended Use
4
Section 1: Limited Warranty
4
Warranty Period
5
Defects Replacement
5
Safety Stock of Warranty Parts
5
Warranty Procedure
5
Technical Support
6
Control Board Wiring Diagram
10
Section 4
11
No Display on the Console or the Display Is DIM
12
No RPM Is Displayed During the Exercise
13
Feel Slipping While Pedaling
14
Knocking or Creaking Noise
15
Console Diagnostics Mode
18
Section 5
20
Section 5: Parts Replacement
20
Console
21
Console Cable
22
Control Board
22
Generator or Electromagnet Brake Set
24
Crank
25
Pedal
26
Poly-V Belt 430J6
27
Poly-V Belt 430J12
28
Pulley Axle
29
Axle
30
Sensor
32
