AXLE ASSEMBLY REPLACEMENT PROCEDURE
5-11
Tools required:
Philips
screwdriver
C-clip pliers
puller
Hex key (6mm)
Hexagonal
socket wrench
(19&13mm)
Adjustable
wrench
Procedure:
1 Remove all of the covers.

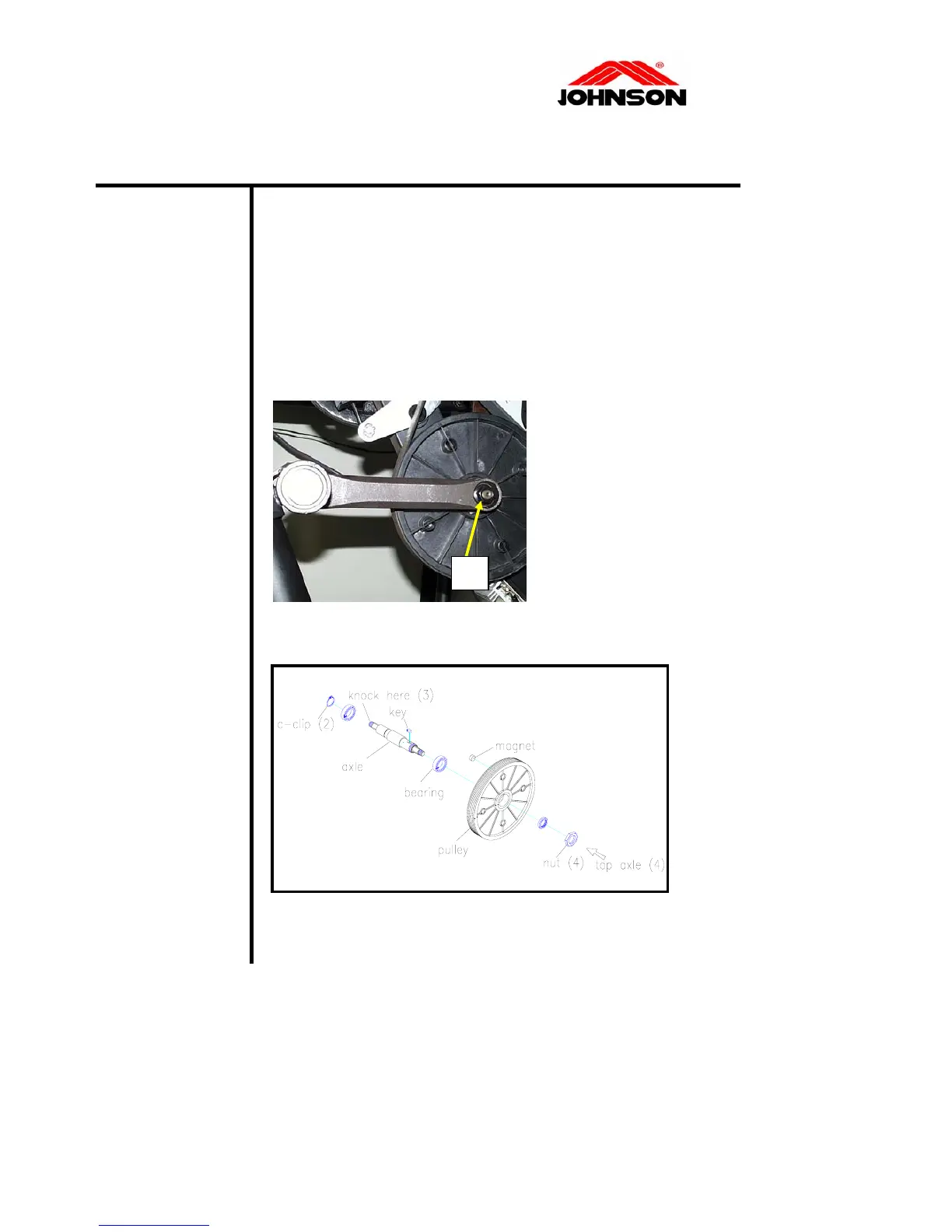

2 Loosen the nut (A) and remove it ,another side is same
3 Loosen the tension adjustment screw of idler pulley, then
remove the poly v belt
4 Follow the
procedures below to
install the axle.
Step1: pull crank out
Step2: remove the
c-clip.
Step3: tap axle assy out
Step4: remove the nut
then tap axle out
A
Step5: replace the axle with a new one
Step6: reverse all of the steps to install the parts
