5-13

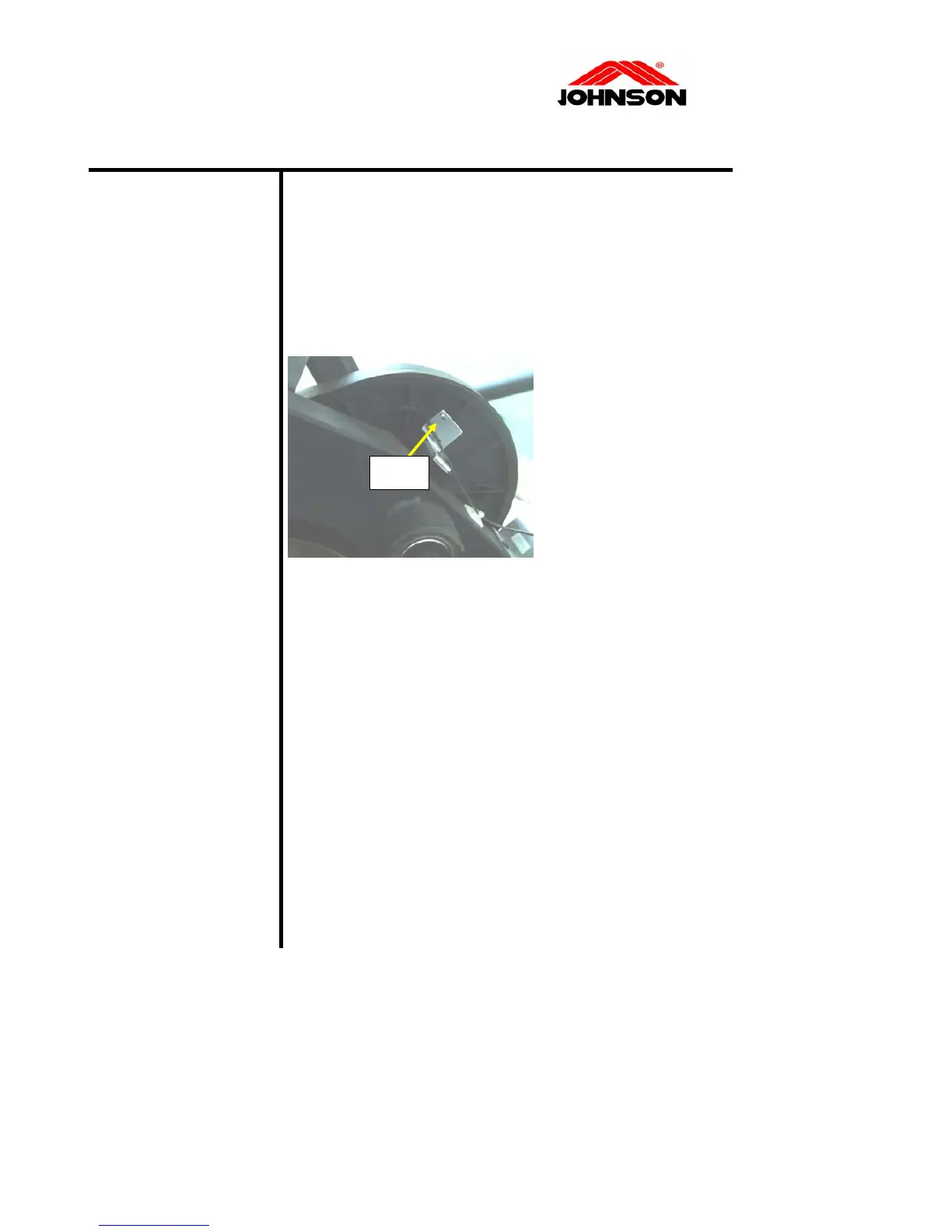

SENSOR REPLACEMENT PROCEDURE
T
ools requir
ed:
Philips screwdriver
Hex key (5mm)
Ratchet Box W
rench
(1
1mm)
Procedur
e:
1.
Remove the rear cover
.
2.
Disconnect the sensor cable from the control board.
3.
Loosen the screws that hold the sensor to the frame.
4.
Replace the sensor
with a new one.
5.
Reverse the step 1-3
to install the parts.
Sensor
31
33
