POLY V BELT 430J6 REPLACEMENT PROCEDURE (JPS)
Tools required:
u Philips
screwdriver
u Hex key (4mm)
Procedure:

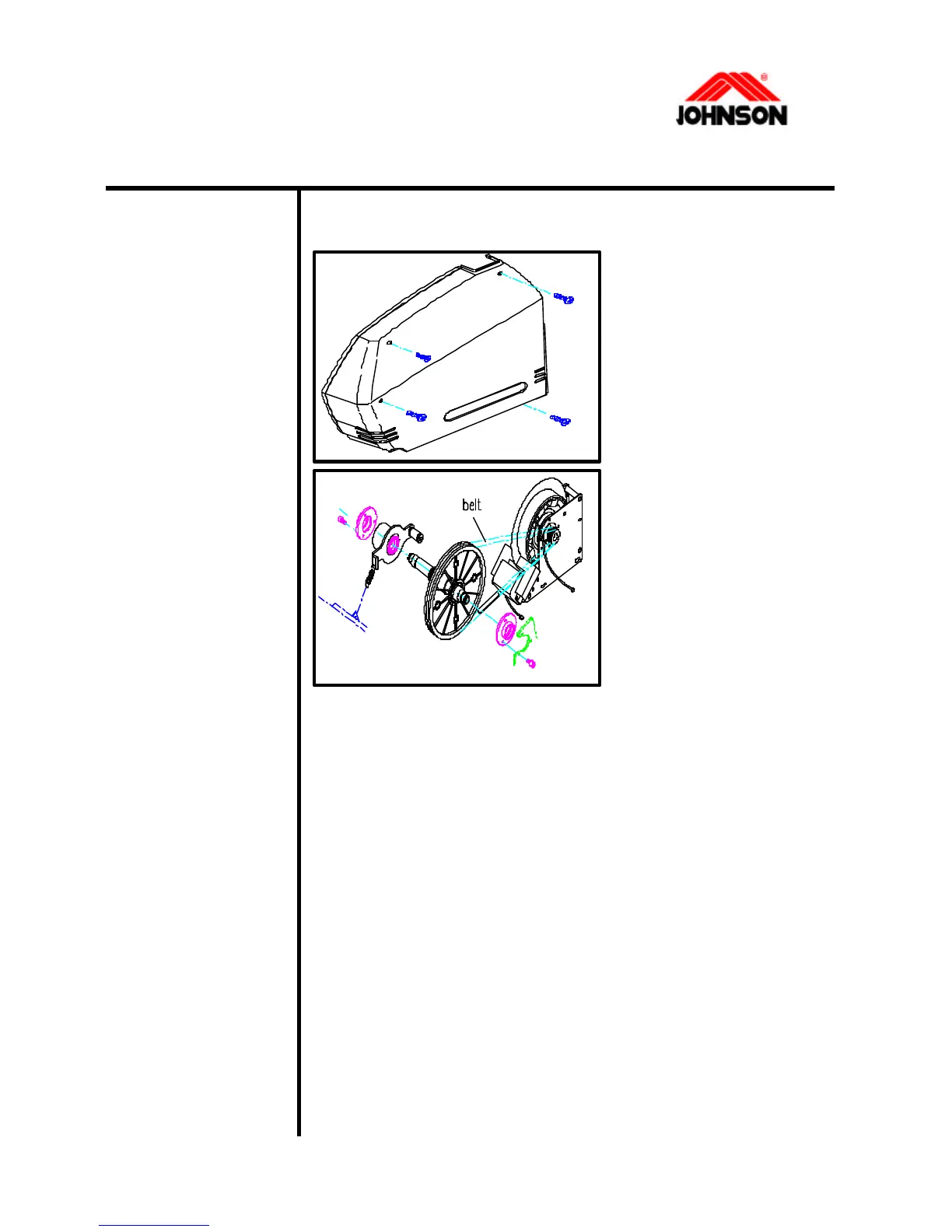

1. Loosen the screws
from the side cover with
the screwdriver.
2. Loosen the 430J6 and
430J8 belts.
3. Loosen the screws
from the front pulley by
using hex key (4mm).
4. Replace the 430J6
belt with a new one.
5. Tighten the screws from the front pulley by using the hex
key (4mm).
6. Install the 430J6 and 430J8 belts onto the front and rear
pulleys.
7. Install the side cover.
3-12 Revision: 1.0 Date: 2001/06/01
