SENSOR REPLACEMENT PROCEDURE (JPE5100)
Tools required: Procedure:
u Philips screwdriver
u Hex key (5mm)
u Ratchet Box Wrench
(11mm)
1. Remove the rear cover.
2. Disconnect the sensor cable from the control board.
3. Loosen the screws that hold the sensor to the frame.
4. Replace the sensor
with a new one.
5. Reverse the step 1-3
to install the parts.

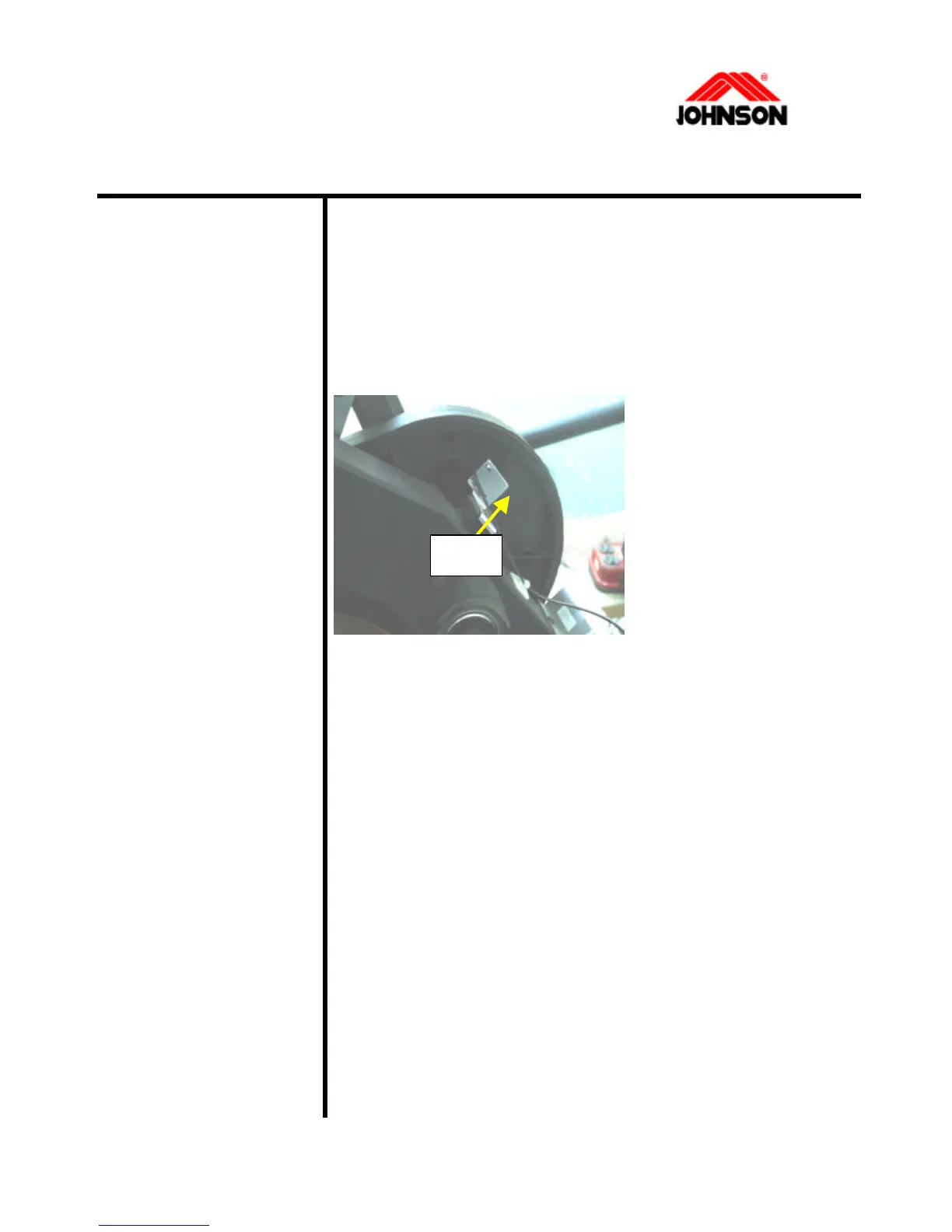

Sensor
3-25 Revision: 1.0 Date: 2001/06/01
