Log Button: Master Control
Viewing Details of a Log Entry
Viewing/Filtering Displayed Log Content
All: Will display the full list of entries available on the system.
Faults: Will display all faults that have occurred on the communicating system.
Events: Will display all maintenance reminders and alerts that are not categorized as a fault.
Custom: Will display custom entries that have been manually input.
TSTAT: Will display all faults, alerts, and events that pertain to the Touch Screen Communicating
Control.
Inside: Will display all faults, alerts, and events that pertain to the indoor communicating equipment.
Outside: Will display all faults, alerts, and events that pertain to the outdoor communicating equip-
ment.

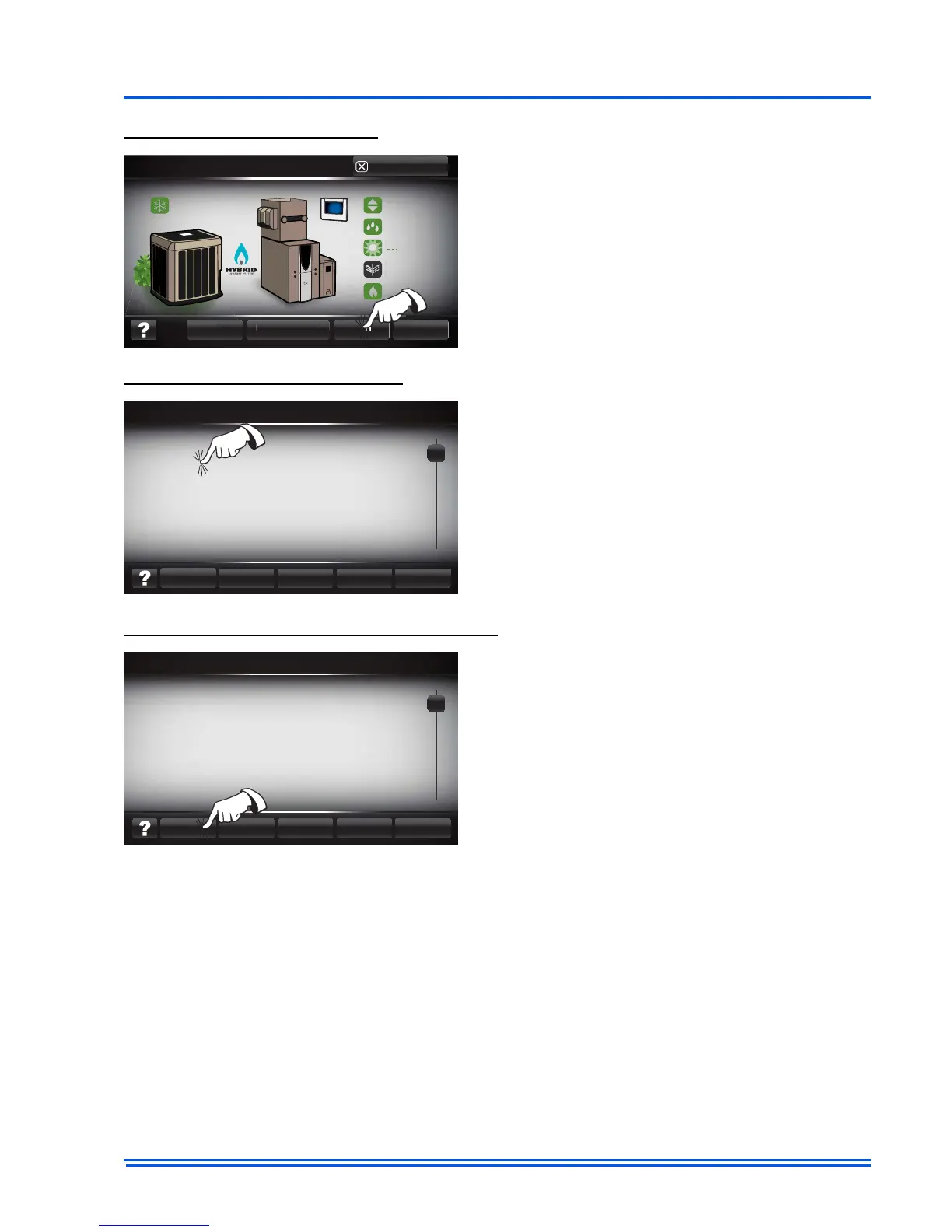

From the system map, the “Log” button can be
pressed. Here the event and fault log screen can
be viewed. This screen displays maintenance
reminders, custom log entries, and faults.
Pressing an entry displayed on the “Log” screen
will prompt a screen that contains a more detailed
description of the fault, event, alert, etc.
Press the filter button to narrow down the entries
being displayed. The log entries displayed can be
sorted by: All, Faults, Events, Custom, TSTAT,
Inside, and Outside. See list below for more infor-
mation.
Touch ICON for a detailed view
Log MenuRefresh Accessories
Exit Service Mode
Humidifier
ON
UV Lamps
ON
EAC
Not Installed
Heat Pump
OFF
Thermostat
ON
Furnace
ON
11:07AM Thu 7/21
Log
resh
Accessories
UV La
ON
E
A
C
N
ot I
n
F
urn
a
O
N
Select Entry Detail
Log
11:07AM Thu 21 Jul
Thermostat Fault Thu 21 Jul 10:13AM
Outdoor Equipment Fault Wed 10 Jul 1:26PM
BackClearNewExport
Filter
Select Entry Detail
Log
11:07AM Thu 21 Jul
Thermostat Fault Thu 21 Jul 10:13AM
Outdoor Equipment Fault Wed 10 Jul 1:26PM
BackClearNewExport
Filter
