Service-Menu Button: Master Control

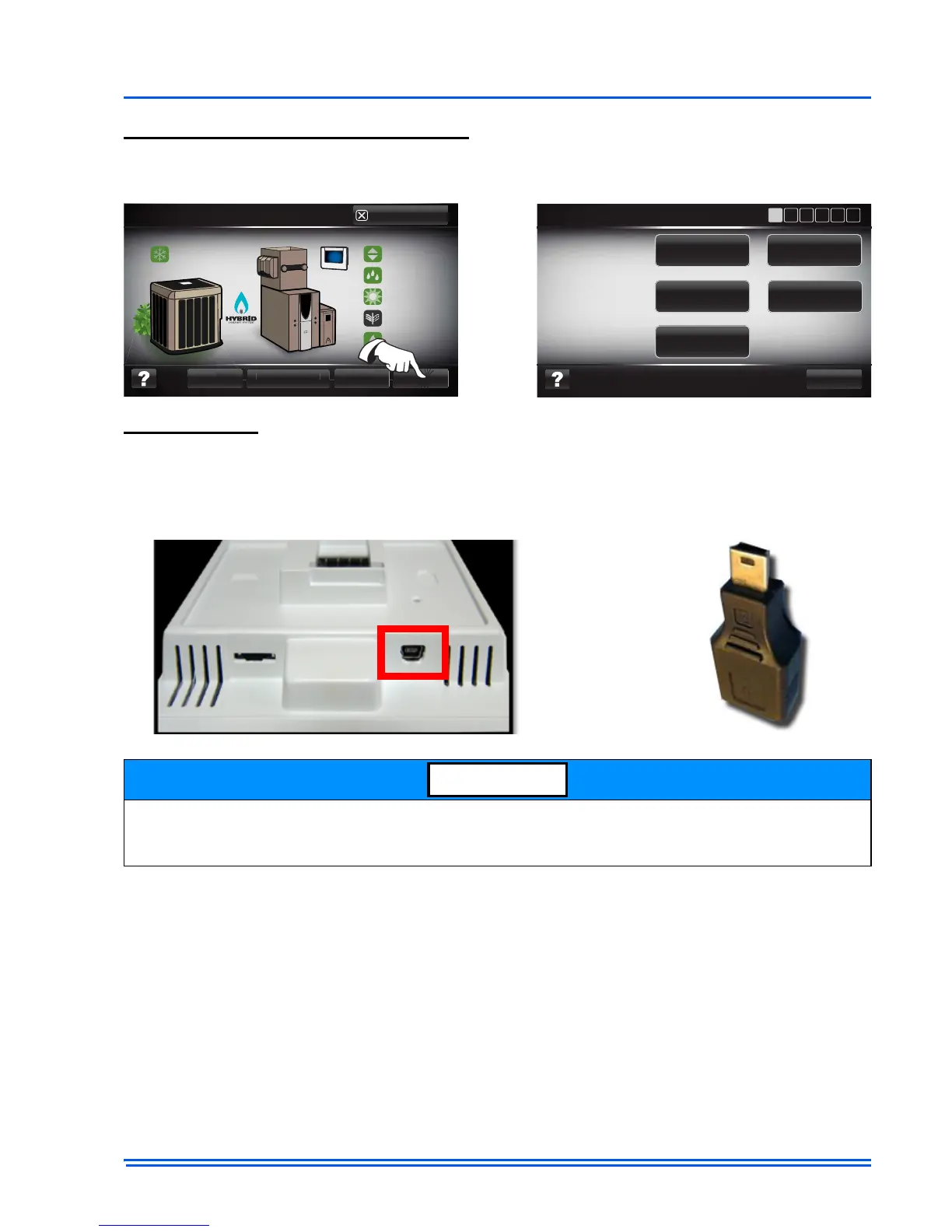

From the system map, the “menu” button can be pressed. Here the main system menu is displayed
(shown below).
Import/Export:
The import/export screen allows the user to import and export through the mini USB port located on
the bottom side of the thermostat (pictured). To access the port, use the mini USB to USB adapter
(S1-03102965000) provided in the Touch Screen Communicating Control kit attached to a USB
memory drive.
The USB can be used to import and export:
• Program Schedule
If the “Program Schedule” is selected, the control will import/export the setting of the program
schedule (including: Schedule name, day, part times, and temperatures).
• Dealer information
If the “Dealer Information” is selected, the control will import/export the dealer information (Includ-
ing: address, number, name, etc.)
• Dealer logo
If the “Dealer Logo” is selected the control will import/export the dealer logo (or picture).
• Homeowner configuration File
Most USB drives are compatible with the Touch Screen Communicating Control. However, if you
have questions as to which USB memory drives are approved for the Touch Screen Communicat-
ing Control, see UPGnet.com for more information.
