1918
INSTALLATION
INSTALLATION
Most cars have several
threaded holes to t the
tether anchorage to.
Refer to the vehicle owners
handbook for information
on the location of these
points.

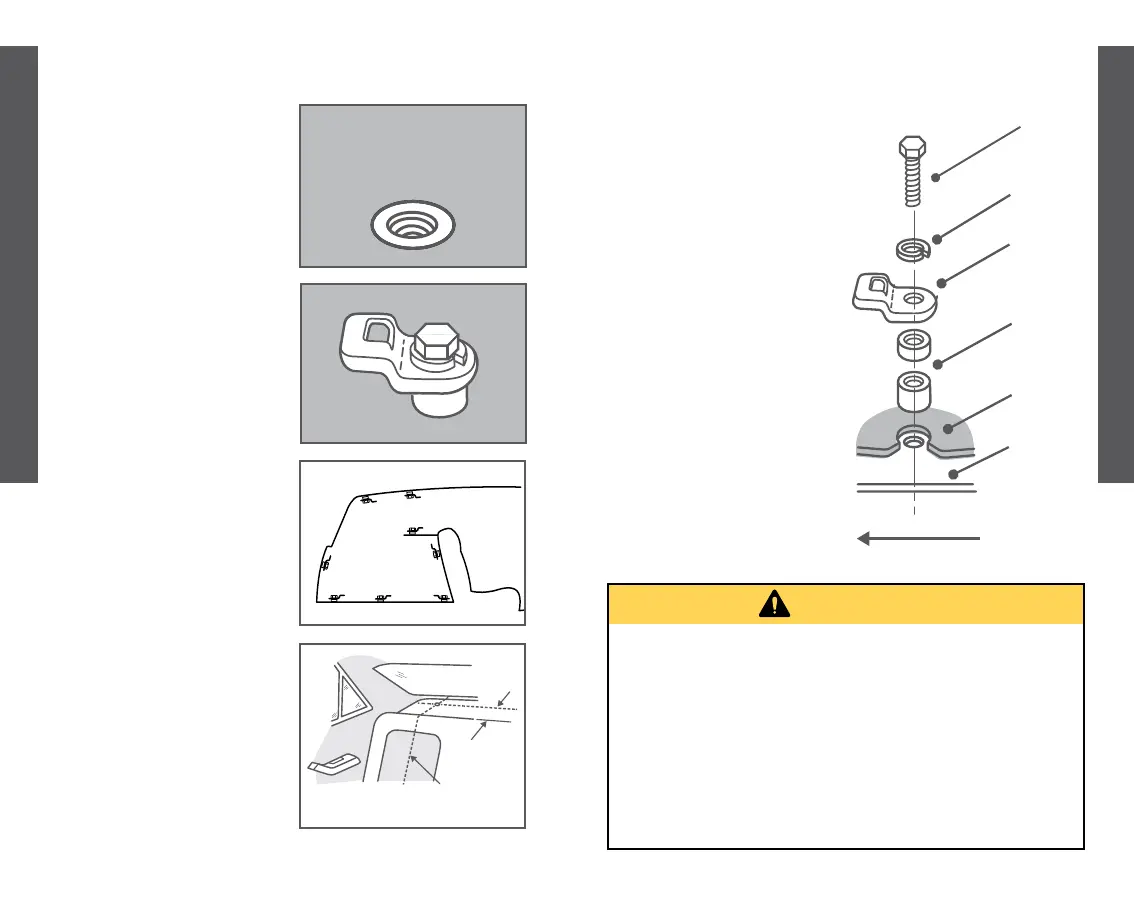

Using the bolt provided to
attach the anchor tting to
the mounting point behind
where the child restraint is
to be installed.
See more detailed informa-
tion on the next page.
The threaded hole for
the anchorage bolt
may have a plastic
cover over it
centre-line of seating position
100 mm
minimum
The anchor tting must be
aligned as shown unless
stated otherwise in the ve-
hicle owners handbook.
If drilling a new hole, select
a position on the centre line
of the seating position, and
no closer than 100 mm from
the front edge of the parcel
shelf.
Installation — Tether Anchorage
If the car is fitted with a
child restraint anchorage
point:
Locate the anchorage point
behind the rear seating
position (consult the vehicle
owners handbook for loca-
tion of the anchorage point).
Remove the thread plug from
the parcel shelf/oor/roof
and install the attachment
bolt as shown opposite.
CAUTION:
DO NOT OVERTIGHTEN
THE ATTACHMENT BOLT.
MAXIMUM TORQUE 20Nm.
WARNING
CHILD RESTRAINTS MUST NOT BE ATTACHED
TO UNSOUND METAL OR WOOD OR SYNTHETIC
STRUCTURES. WHEN DRILLING THE 9 MM HOLE DO NOT
DRILL THROUGH FUEL LINES, FUEL TANKS, ELECTRICAL
WIRING, OR RADIO SPEAKERS. WEBBING STRAPS MUST
BE PROTECTED FROM SHARP CORNERS AND EDGES.
THE ANCHOR FITTING MUST BE USED ONLY AS
DESCRIBED ABOVE. IT MUST NOT BE HOOKED ONTO
ANY OTHER OBJECT.
Installation — Tether Anchorage
Attachment
Bolt
Lock
Washer
Spacers (if
required)
Anchor
Fitting
Vehicle
Metal
Structure
Vehicle
Trim
FRONT OF VEHICLE
To Next Page
