TP820 User’s Manual
- 28 -
3 Drawer Open/closed signal IN
4 24VDC OUT
5 Drawer kick-out drive signal OUT
6
Drawer kick-out Open/closed
signal ground
≤1A/24V
---
Drive electricity≤1A/24V
Note: Make sure the drawer meets the specification mentioned above, or we will not
guarantee to keep the printer in good repair.

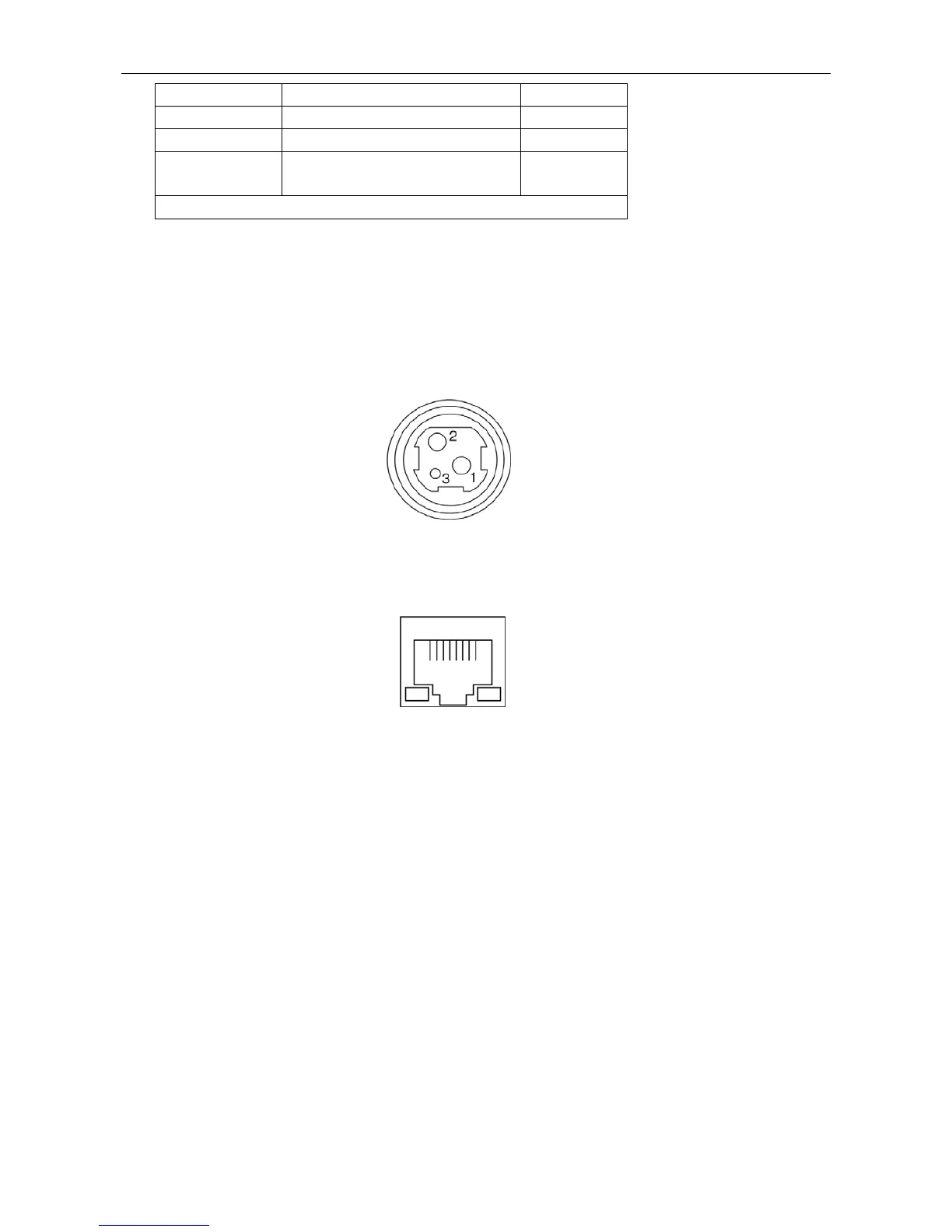

5.2.5 Power Supply Connector
The connector is used to connect the printer to the external power source. The power source is
specified as 24V±10% and 2.5A.The connector on the printer is shown in Fig 5-7.
5.2.6 Ethernet Connector
Fi
g
5-7 Power connecto
r
Fig 5-8 Ethernet connector
