Chapter 1 Introduction
1.1 Features
TP820 printer is a kind of high-speed mini thermal printer. It is a high-quality, high-reliability and
low-noise POS printer and operated easily, which can be widely used in ECR, PC-POS and
BANK POS for printing variety of receipt.
1.2 Part Description
According different data port (interface), TP820 serials are divided into several different names:
TP820 is the printer equipped with parallel interface, TP820US is equipped with serial interface
and USB interface, TP820U is equipped with USB interface and TP820UE with Ethernet interface
and USB interface.
TP820 serials printer is equipped with auto cutter, It have two kinds of cutter for the consumer to
selected: partial cutter can only cut the paper with one point left while full cutter cuts the paper
fully.
Note: Please contact with the dealer for changing the interface if needed.
1.3 Parts Identification
Parallel interface USB interface
USB + Serial
interface
USB + Ethernet
interface.
MODEL
TP820 TP820U TP820US TP820UE
Cover Open Lever
Power Switch
Power Indicator (Green)
Error Indicator (Red)
Paper out Indicator (Red)
FEED Key
Paper out Tunnel
(
Dentate
)
Manual Cutte
r
Small Cover

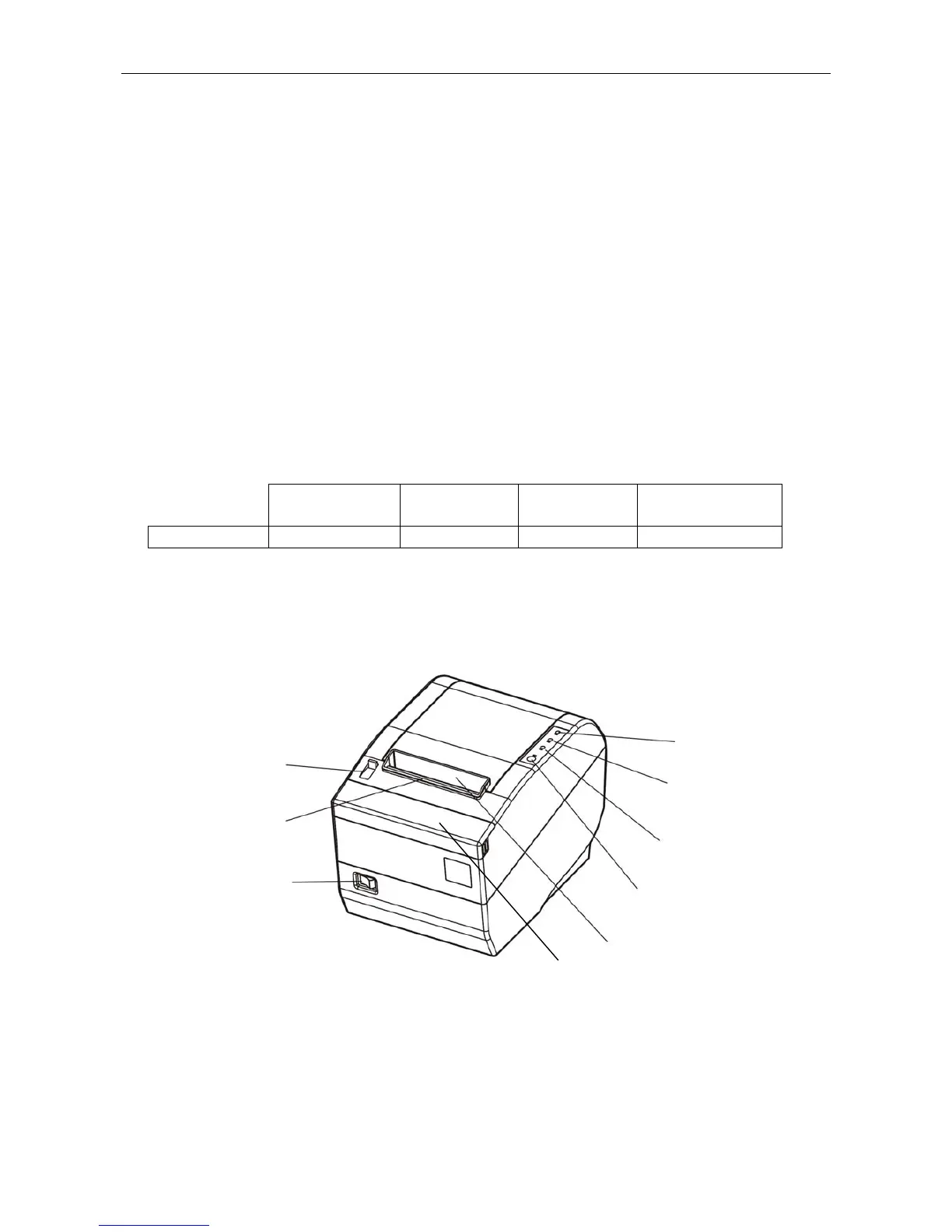

Fig1-1 Main part of the printer
