Jonsered CS 2172 WH Workshop Manual

SERVICE DATA
10 – English
25Nm
5-6Nm 4 mm
1-2Nm
Min. 15Nm 13 mm
12-14 Nm 5 mm
1-2Nm
14-15Nm 16 mm
12-14Nm 13 mm
1,5-2Nm 4 mm
6-8Nm 4 mm
22-25Nm 13 mm
8-10 Nm 5 mm
(x4) 12-14 Nm 5 mm
3-4Nm 4 mm
1-2Nm
▲ = Lubricate with two-stroke oil.
■ = Lubricate with saw chain oil.
● = Lubricate with grease.

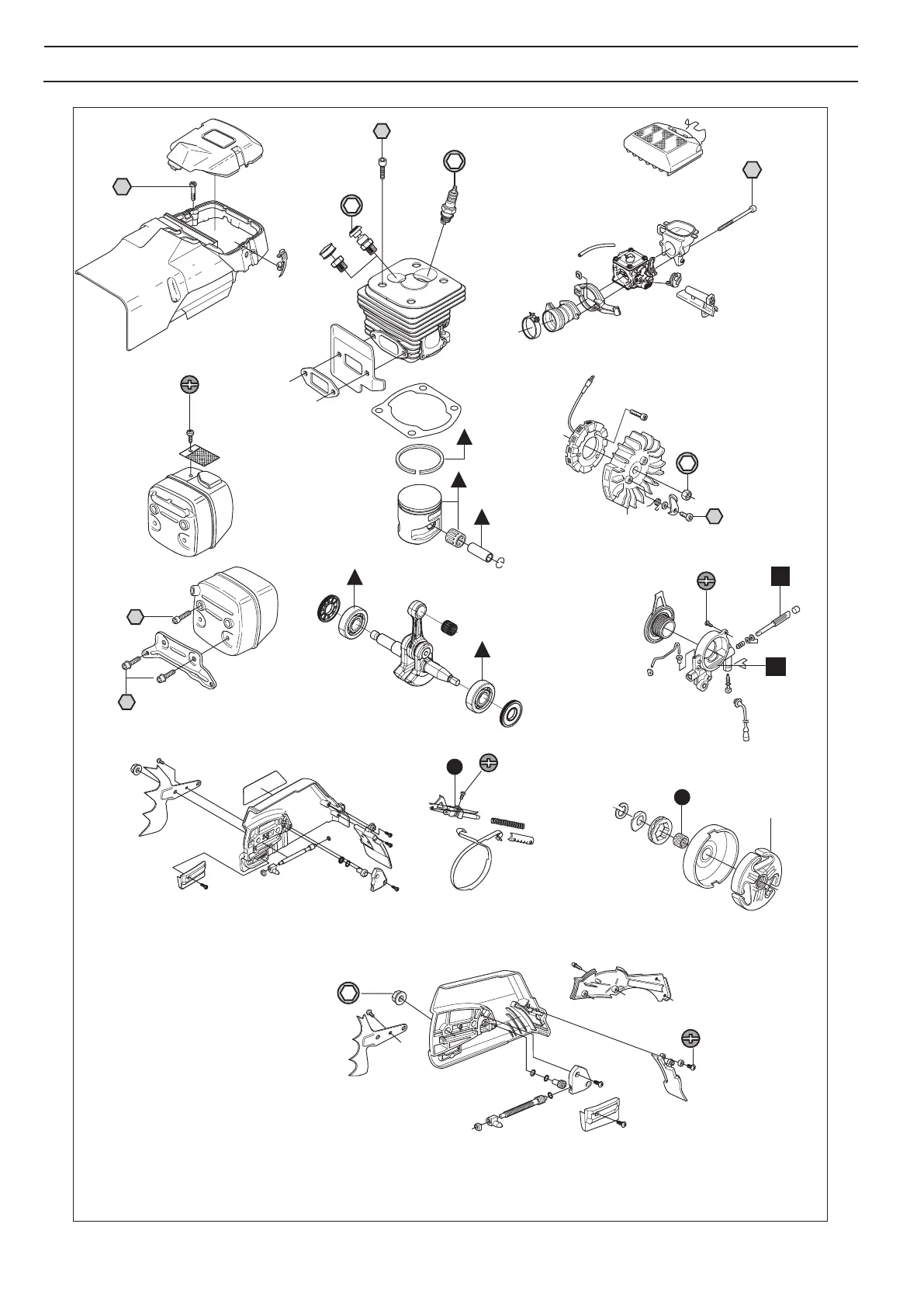

Figures next to components which are attached using bolts
give the appropriate tightening torques in Nm.
