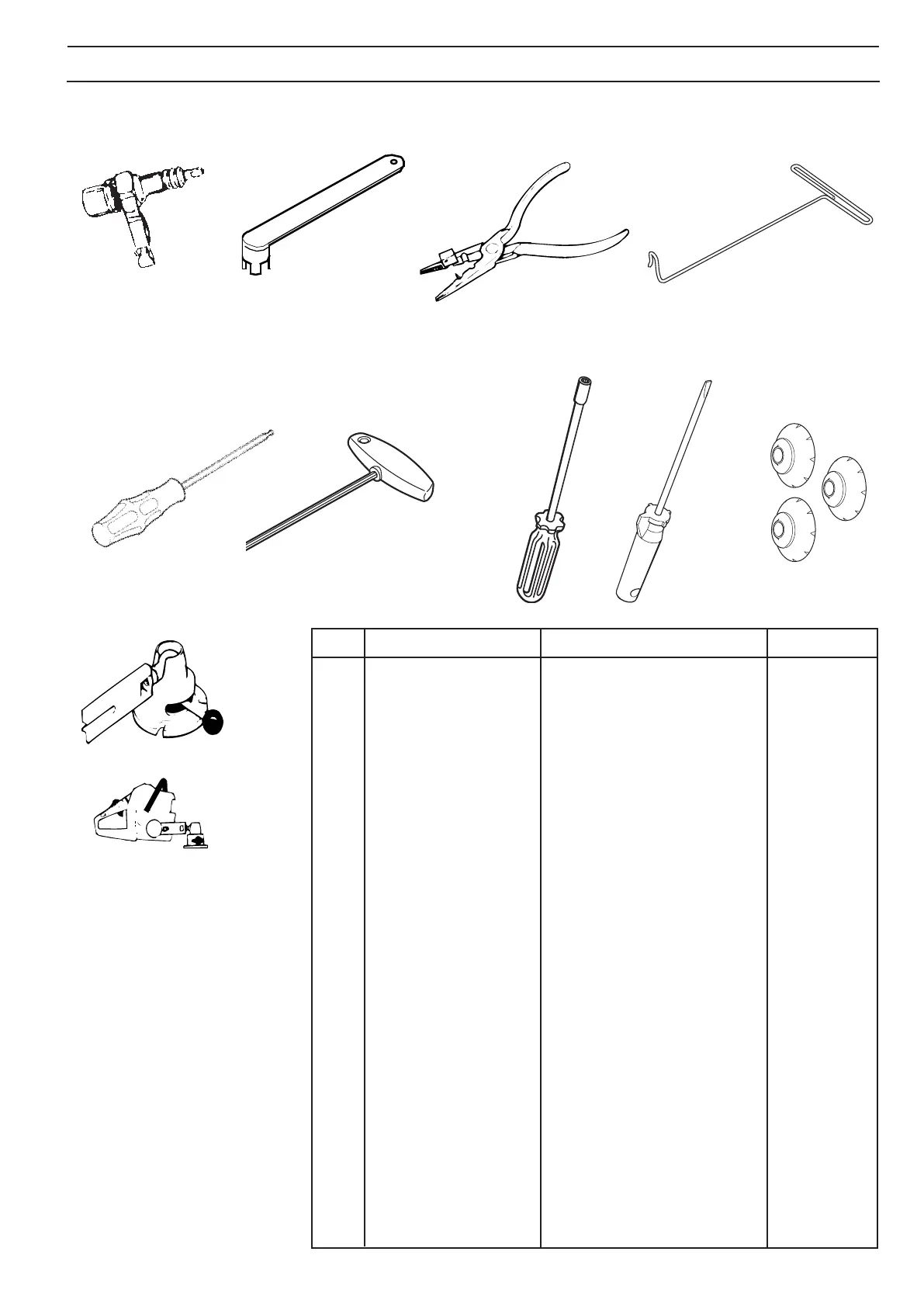

SERVICETOOLS
English – 9
The tools listed here are the
service tools required for this
model of chainsaw. In addition
to these tools, a normal kit of
hand tools is required.
Pos Description Used for Order No.
1 Piston stop Locking the crankshaft 504 91 06-05
2 Cover plate: inlet Sealing off inlet 578 09 56-01
3 Cover plate: exhaust Sealing off exhaust outlet 502 71 39-01
4 Pressure tester Pressurising for pressure testing 531 03 06-23
5 Extractor Removing crankshaft 502 51 61-01
6 Puller Removing bearings; crankshaft 504 90 90-01
7 Holding tool Flywheel removal 502 51 49-01
8 Puller Flywheel removal 502 50 26-01
9 Piston ring clamp Fitting the piston 502 50 70-01
10 Oil seal driver Inserting clutch side oil seal 502 52 21-01
11 Oil seal driver Inserting ywheel side oil seal 502 52 20-01
12 Extractor Removing clutch side 502 50 55-01
crankcase seal
13 Extractor Removing ywheel side 504 91 40-01
crankcase seal
14 Assembly tool Reassembling crankshaft 502 50 30-15
15 Feeler gauge, air gap Setting ignition unit 502 51 34-02
17 Extractor Removing large AV-springs 502 52 18-02
18 Tachometer Setting the carburettor 502 71 14-01
19 Test spark plug Testing ignition unit 502 71 13-01
20 Clutch tool Clutch dismantling/assembly 502 52 22-01
21 Assembly pliers Assembling spark plug guard 502 50 06-01
22 Fuel lter hook Withdrawing the fuel lter 502 50 83-01
23 Clamp stand Clamping the saw 502 51 02-01
24 Allen driver, 3 mm For M4-bolts 502 50 86-01
24 Allen driver, 4 mm For M5-bolts 502 50 87-01
25 Allen key, 3 mm For M4-bolts 502 50 19-01
25 Allen key, 4 mm For M5-bolts 502 50 18-01
26 Adjustemnt screwdriver Adjustment of the carburettor 530 03 55-60
27 Adjustment screwdriver Adjustment of the carburettor 501 60 02-03
28 Adjuster kit 3 pcs. Adjustment of the carburettor 585 07 17-01
19 20 21 22
24
23
25
8
9
0
7
6
5
8
9
0
7
6
5
8
9
0
7
6
5
28
26
27
