Measure an articulated bus
With the I-track ll measuring method, all axles are measured simultaneously before adjustment. Mount
a wheel adapter on each wheel of the vehicle and make sure that they are levelled. Lock the steering
wheel in straight ahead position.
If the centre line tool option is checked, the system will proceed to Frame Measure, see chapter
Measure Frame Reference on page 77.
If the centre line tool is not selected in setup, the measurement process will proceed with measuring
using the articulated bus stand (JT684).

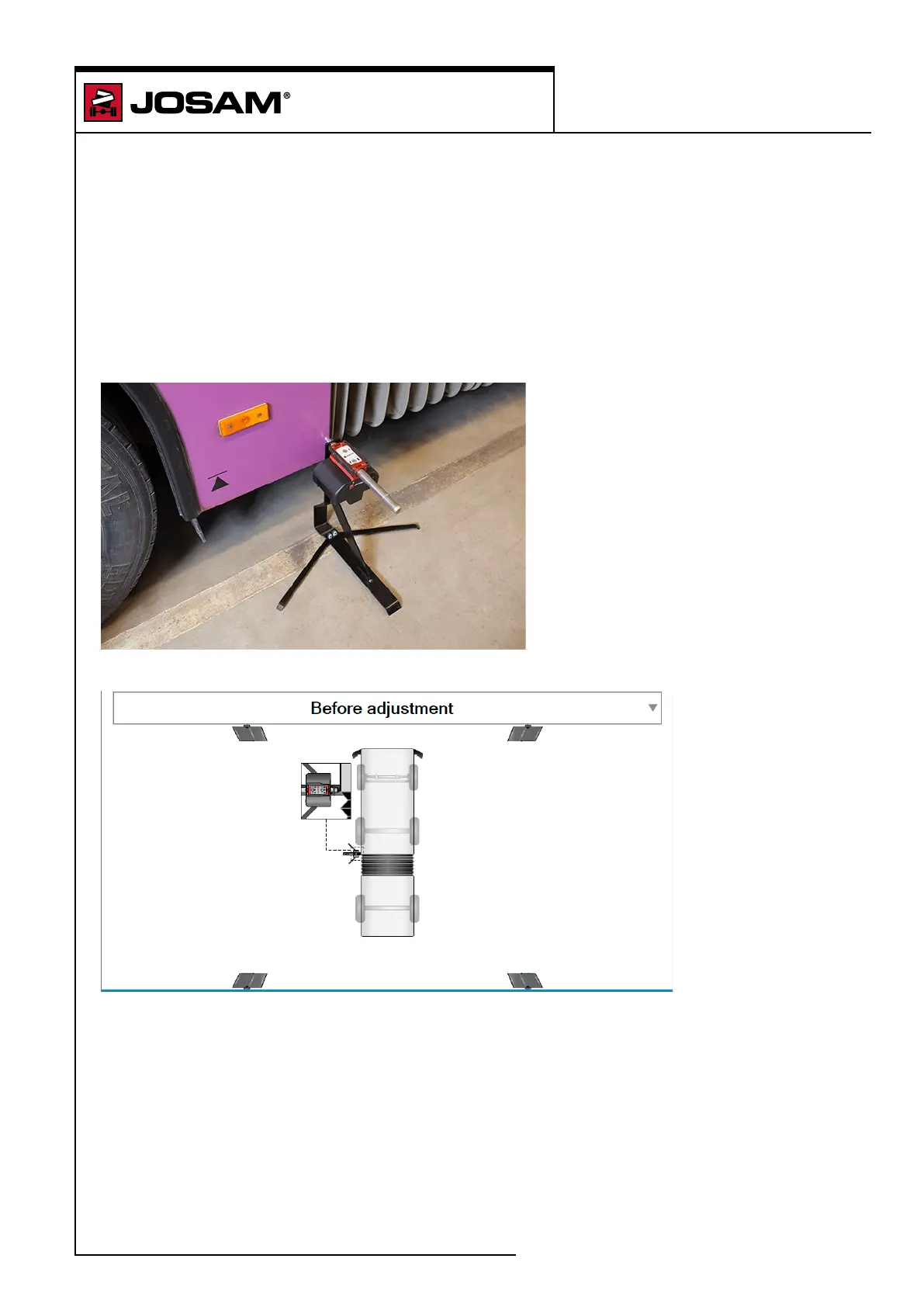

1. Place the stand in the front part of the bus, just in front of the "accordion". Make sure the stand
touches the bus body. Press [OK].
2. Then place the stand in the rear part of the bus, just behind the "accordion". Make sure the stand
touches the bus body. Press [OK].
i-track II
Measure an articulated bus
